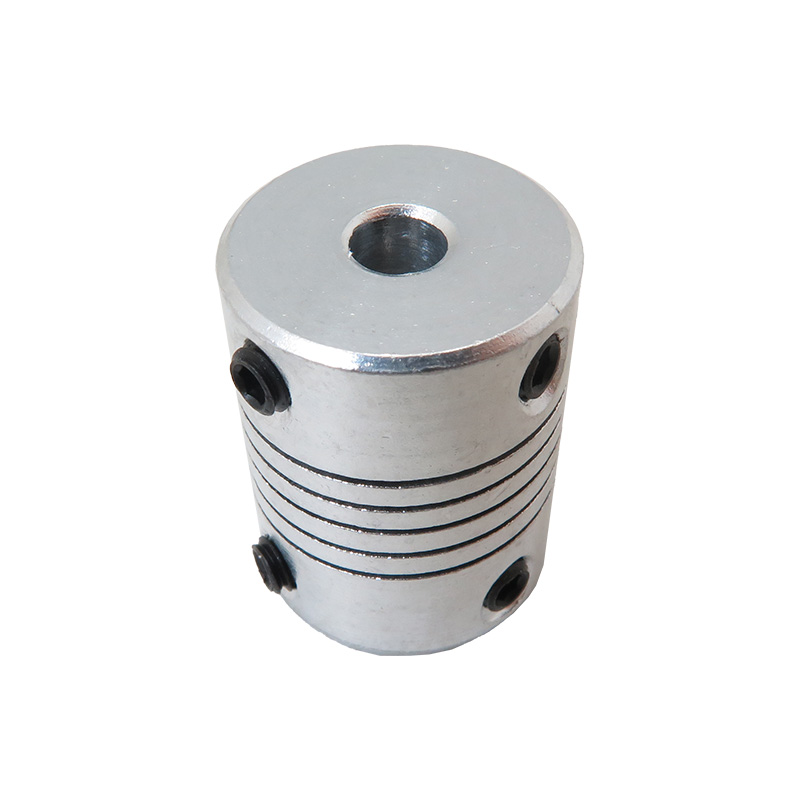

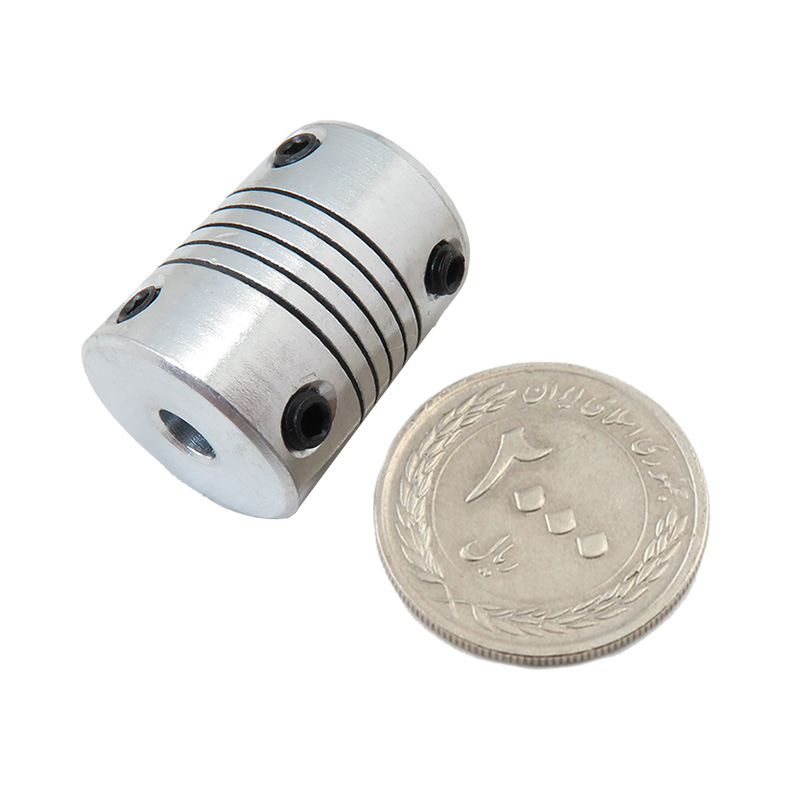

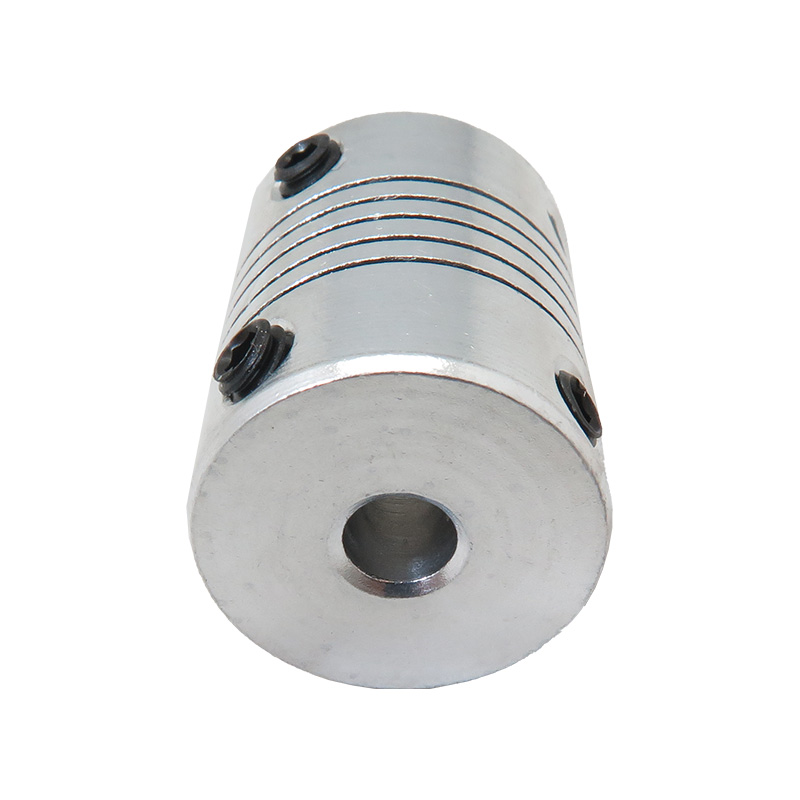

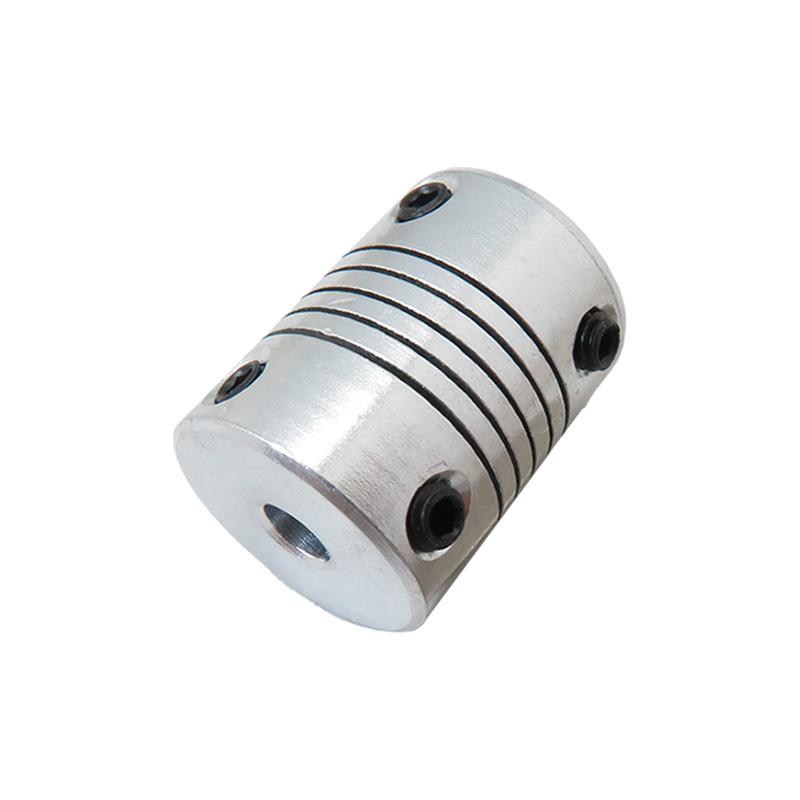

کوپلینگ انعطافپذیر 5x5 میلیمتر یکی از قطعات مهم و کاربردی برای اتصال دقیق و بدون لرزش دو شفت است که بهویژه در
موتور پرینترهای سه بعدی بسیار پرکاربرد میباشد. این کوپلینگ با جنس آلومینیوم سبک و مقاوم، طول 25 میلیمتر و قطر بیرونی 19 میلیمتر، به گونهای طراحی شده که بتواند حرکت دورانی موتور را به شفت دستگاه به صورت بهینه و بدون لرزش منتقل کند. هدف اصلی این کوپلینگ، انتقال گشتاور میان موتور و عنصر چرخان با امکان جبران تغییرات دمایی و حرکتهای جزئی محورها است، بدون وارد کردن فشار اضافی به موتور یا قطعات دیگر.
کوپلینگ موتور پرینتر سه بعدی قادر است شوکها را جذب و ناهمراستاییهای جزئی را خنثی کند که این امر موجب افزایش عمر قطعات و کاهش هزینههای نگهداری میشود. ساختار کوچک و سبک این کوپلینگ باعث شده در تجهیزات دقیق مانند
پرینترهای سه بعدی، ابزارهای اندازهگیری، ماشینآلات سبک و سرومکانیزمها بهکار رود. برای نصب صحیح کوپلینگ، توجه به هممحوری شفتها ضروری است تا عملکرد بدون نقص و طول عمر مفید آن تضمین شود.
کوپلینگ 5X5 پرینتر سه بعدی برای اتصال موتورهای سروو، استپر موتور و انواع ماشینآلات با قطر شفت 5 میلیمتر مناسب است و به دلیل طراحی خاص خود، در جلوگیری از لرزش و افزایش دقت دستگاه بسیار مؤثر میباشد. استفاده از این کوپلینگ به خصوص در پرینترهای سه بعدی، موجب افزایش دقت چاپ و دوام دستگاه خواهد شد.
Description:

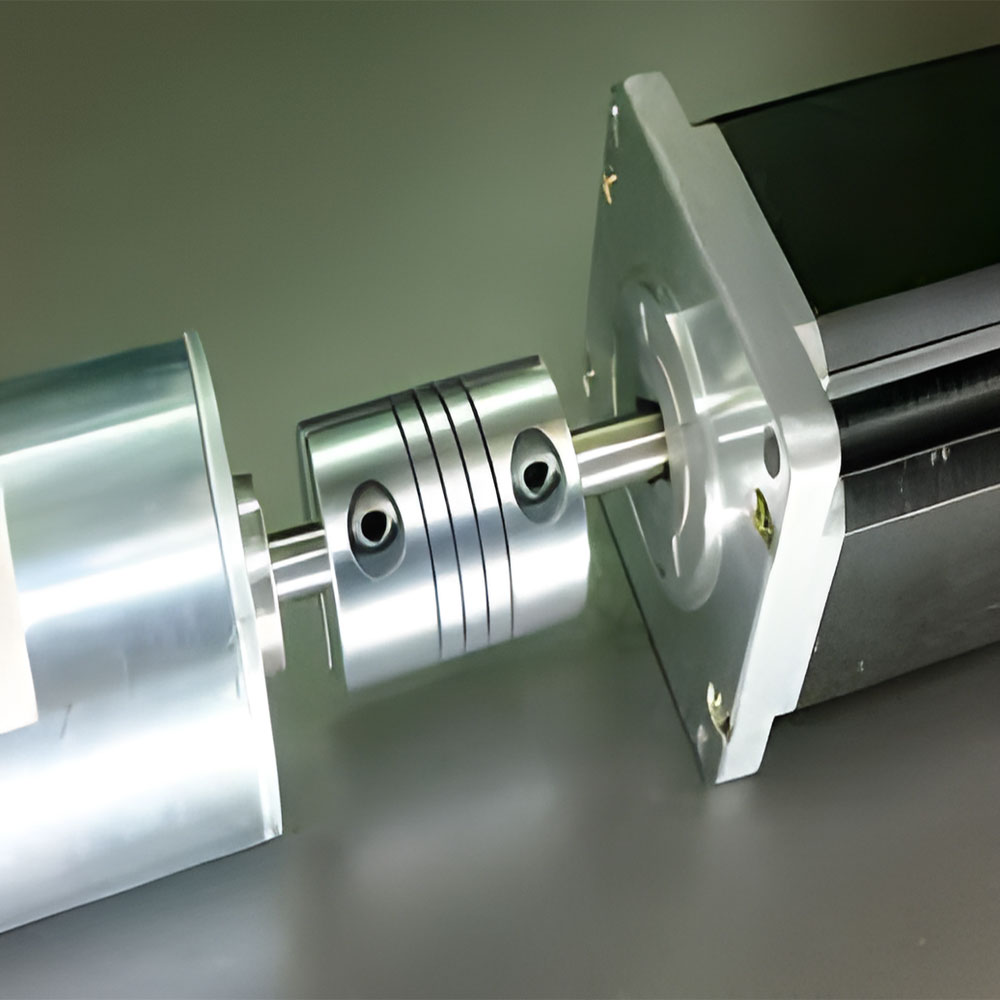

A '''coupling '''is used to connect the drive shaft of a power source, such as a 3D Printer to a shaft on a piece of driven machinery.
Flexible couplings compensate for temperature changes and permit end movement of the shafts without placing unwanted stresses on motors and seals. Flexible couplings should not be used to compensate for misalignment at the time of installation. Types of flexible couplings include gear, spring grid, chain, metal disk, and elastomeric.
Flexible coupling can accommodate a slight misalignment between two shafts in 3D printer, but a rigid coupling cannot accommodate any misalignment. Flexible coupling can absorb shocks and backlash but a rigid coupling cannot. A rigid coupling is simple and inexpensive but flexible couplings are expensive.
All flexible couplings consist of two hubs that are attached, with a fit elastomer in between, one each to the driver and driven shafts. The hubs may be attached to the shaft by a keyway, taper fit, screw or other means. The hubs are connected in various ways.
For all flexible couplings, the hubs must be aligned to within the manufacturer’s specifications for the driven equipment, driver, and coupling. In addition, some equipment may require that the coupling permit end float of the shaft, but limit the end float to a certain amount.

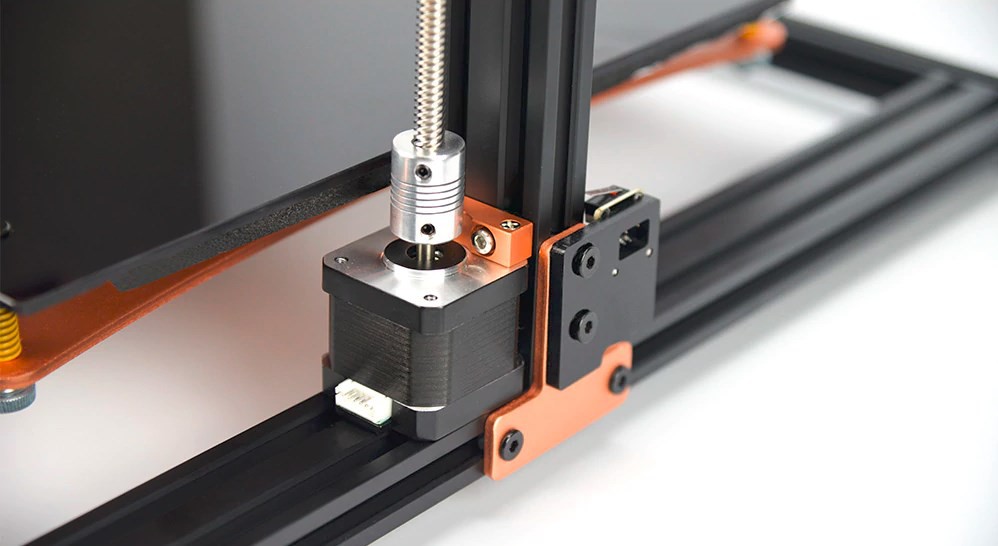

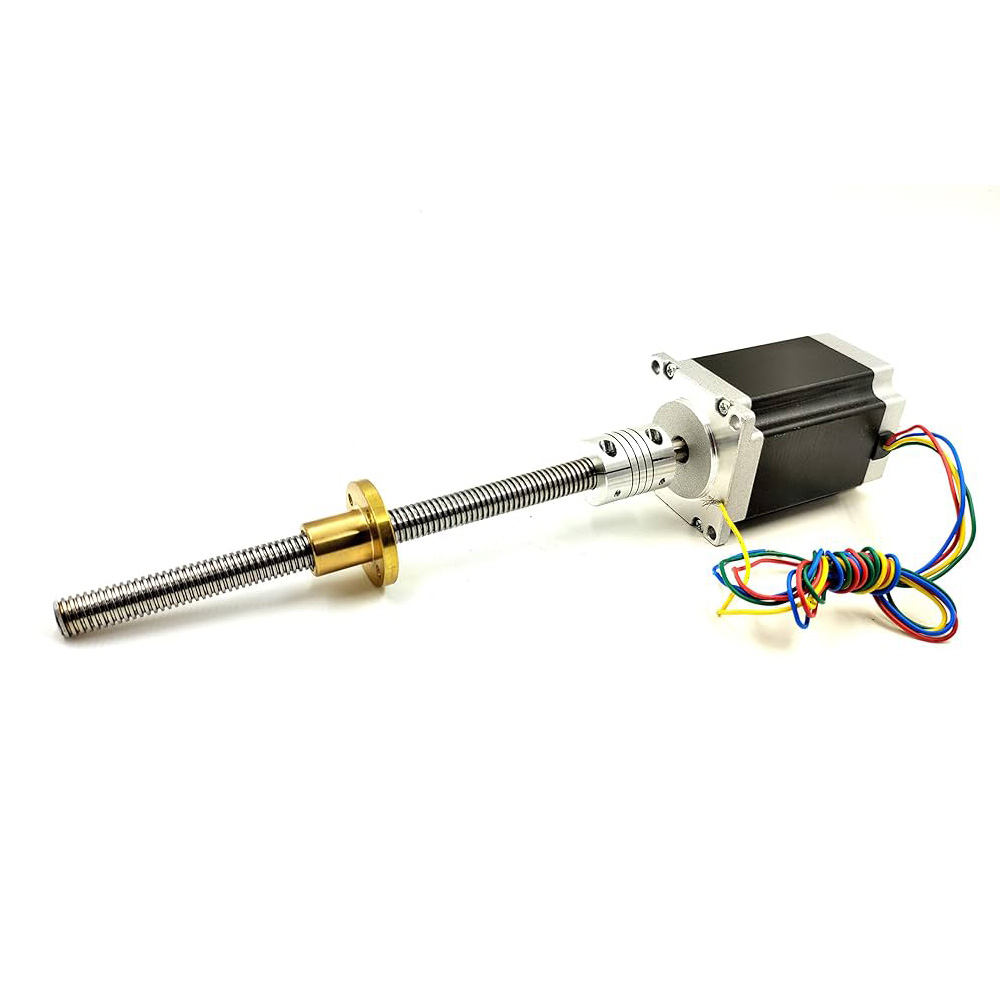

The aluminum couplers are usually 5mm motor shaft to 8mm threaded rod. If you are running a 5/16" threaded rod there will be a center-line offset between the motor shaft and the threaded rods. If you use Flexible coupling, the motor can tilt a little on the coupling and absorb any wobble and backlash in the assembly. This eliminated all unwanted wobble issues.
