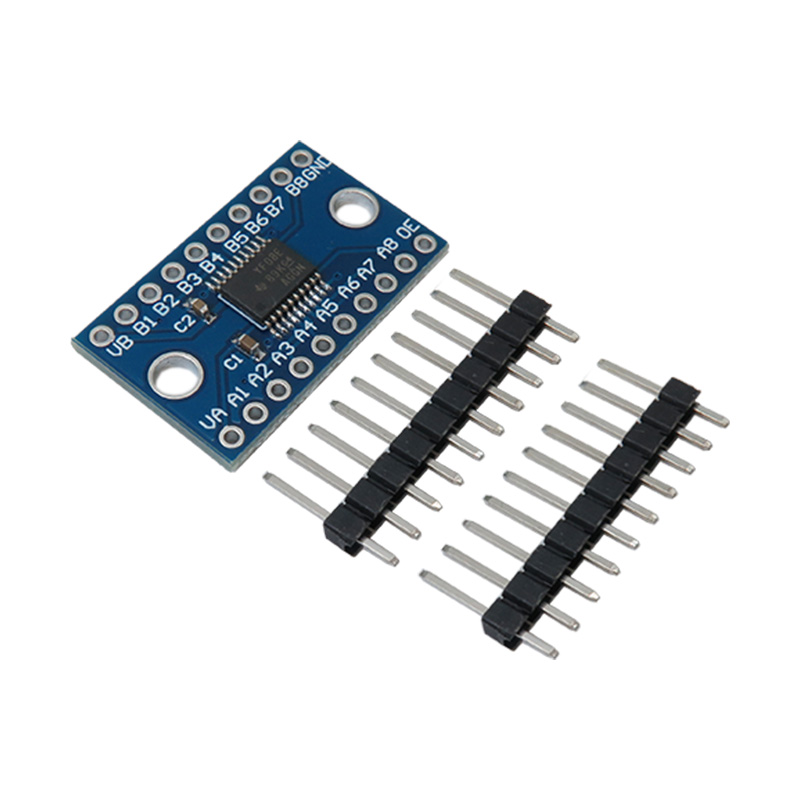

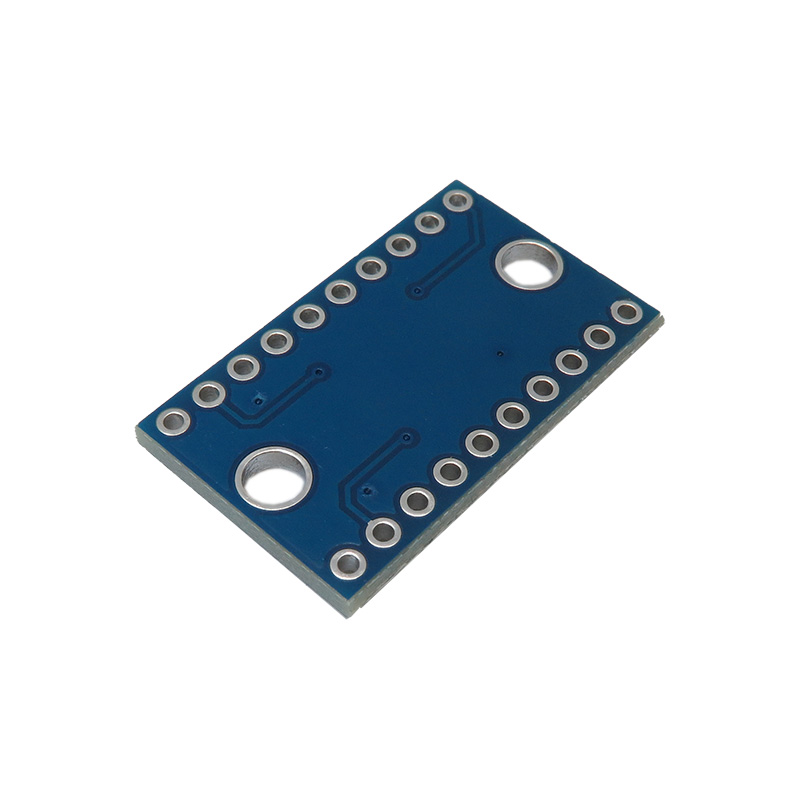

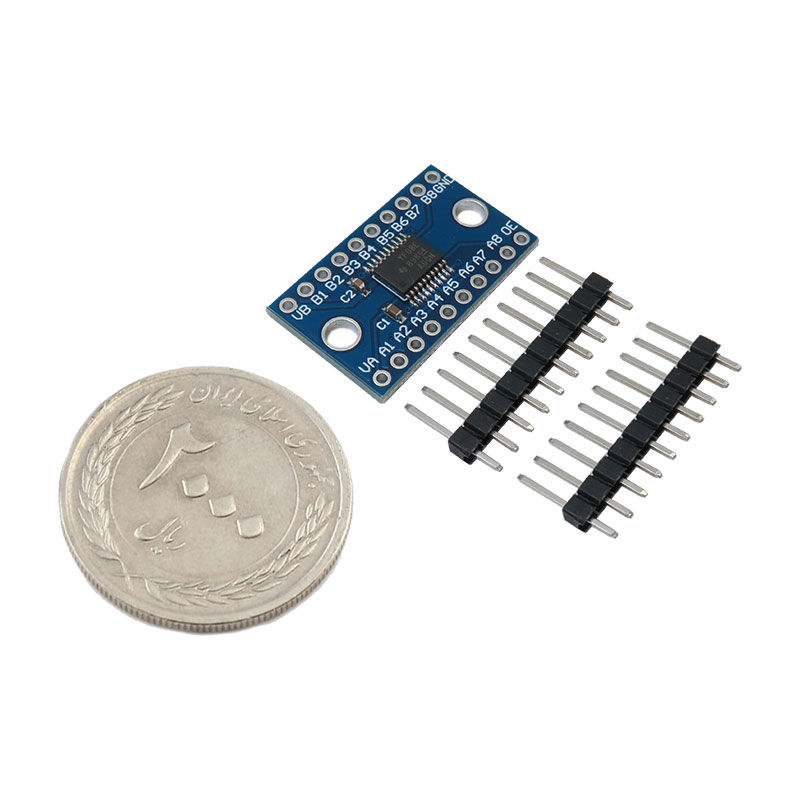

ماژول مبدل سطح ولتاژ دو طرفه 8 کاناله TXS0108E
جهت دریافت دیتاشیت TXS0108E به این لینک مراجعه نمایید.
Description:

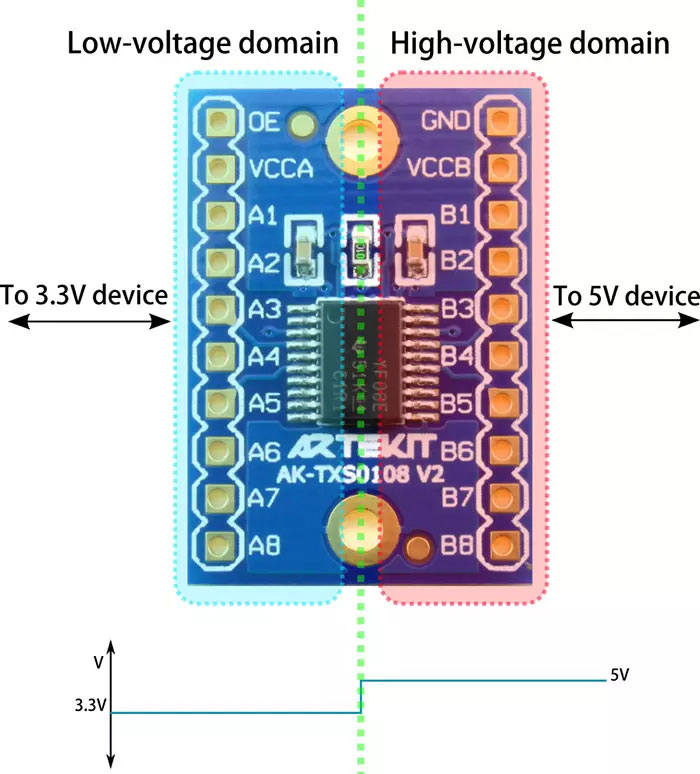

This High-speed full-duplex 8 level conversion module use the chip TXS0108E. and it provides two-way communications capability. Usually apply on 5V MCU and 3.3V modules, 3.3V MCU and 5V modules, and other communications Compatible with MCU ,as well as communication of SD card level translation. SCM and iic, spi serial device level converter. OE active high enable IO ,and recommend low voltage terminal connected to the IO port.
Features:
No Direction-Control Signal Needed
Maximum Data Rates
110 Mbps (Push Pull)
1.2 Mbps (Open Drain)
1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
No Power-Supply Sequencing Required – Either VCCA or VCCB Can Be Ramped First
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 (A Port)
2000 V Human Body Model (A114-B)
150 V Machine Model (A115-A)
1000 V Charged-Device Model (C101)
IEC 61000-4-2 ESD (B Port)
±8 kV Contact Discharge
±6 kV Air-Gap Discharge
