ماژول پایه سنسور های گاز سری MQ-2 / MQ-3 / MQ-4 / MQ-5 / MQ-6 / MQ-7

MQ-Base-Module

1578-81-2930

13,720 تومان
در حال حاضر موجود نمی باشد


خرید کالا


علاقه مندان : 4 نفر
وضعیت : غیرفعال

تعداد مرجوعی : 0
دنبال کنندگان : 4 نفر

قدمت : 8 سال و 4 ماه و 27 روز
وزن : 5 گرم

کل فروش : 290 عدد
تعداد سفارش ها : 158 سفارش

4 از 5.0 با 1 رای

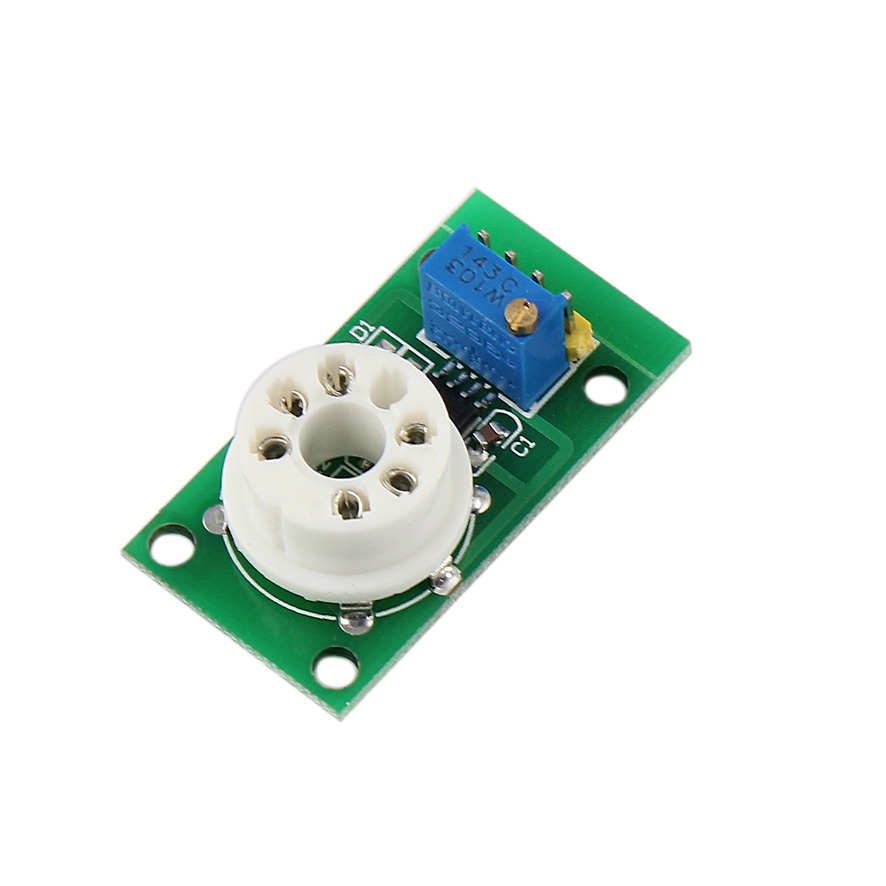

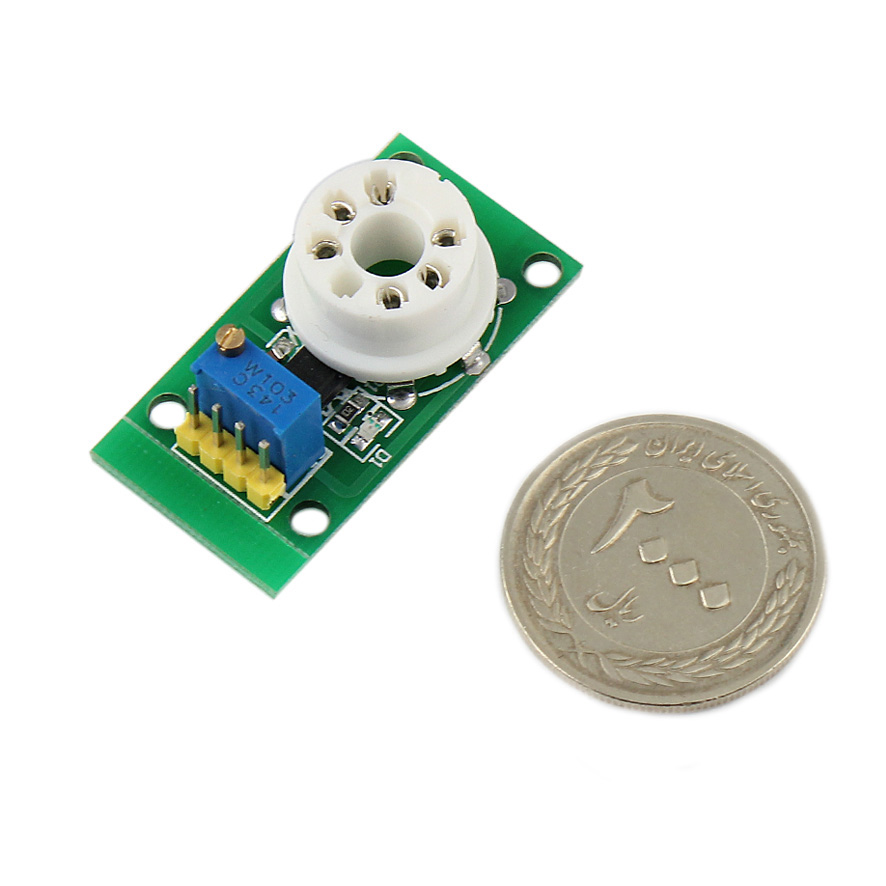

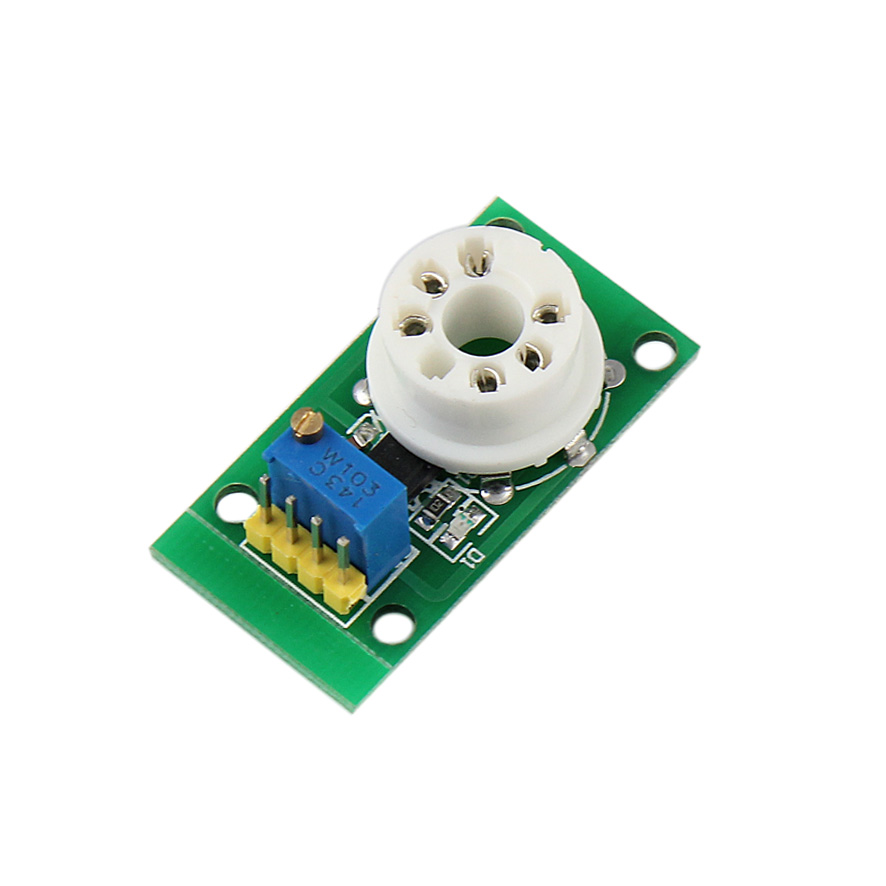

ماژول پایه سنسور های گاز سری  MQ-2 / MQ-3 / MQ-4 / MQ-5 /  MQ-6 / MQ-7

Features:
1, using high-quality design PANEL double, with power meter and TTL output instructions;
2, with only a signal switch (TTL) output and analog output AO;
3, TTL output high and low. (can be directly connected microcontroller or relay module)
4, analog voltage output change with concentration.
5, liquefied petroleum gas, natural gas, city gas, smoke have better sensitivity.
6, there is a screw hole for easy positioning;

Electrical performance:
Input voltage: DC5V power (current): 150mA
DO Output: TTL digital 0 and 1 (0.1 and 5 V)
Output AO: analog signal level

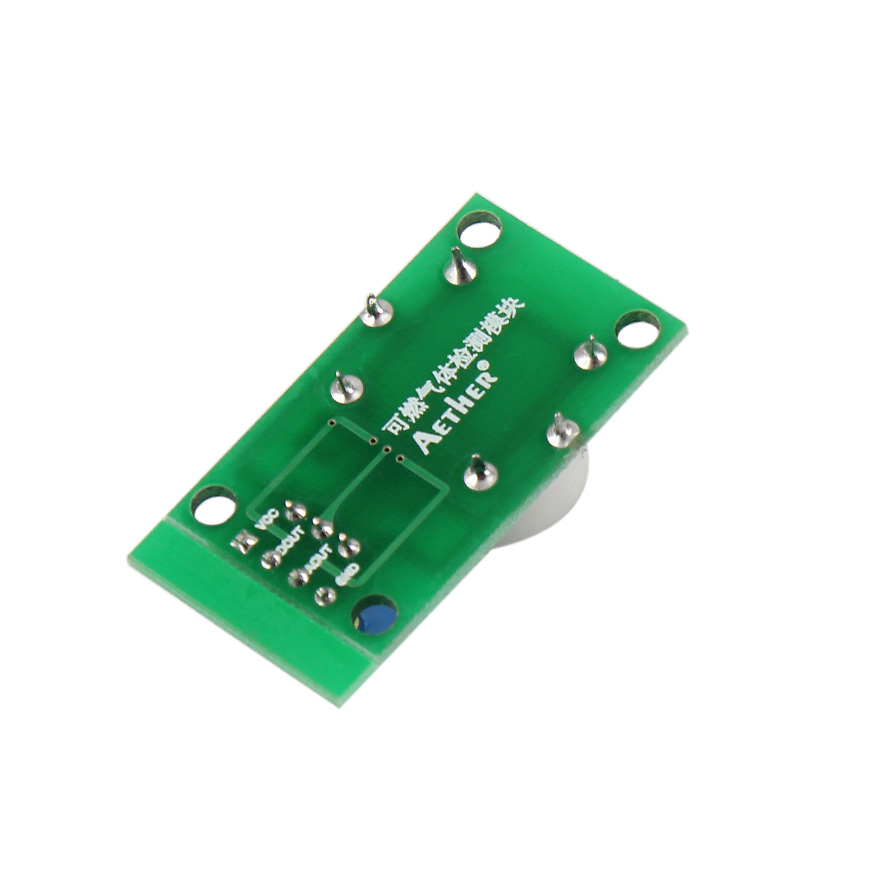

Wiring:
1, VCC: positive power supply (5 V)
2, GND: a negative
3, do TTL output signal switch
4, AO: analog output

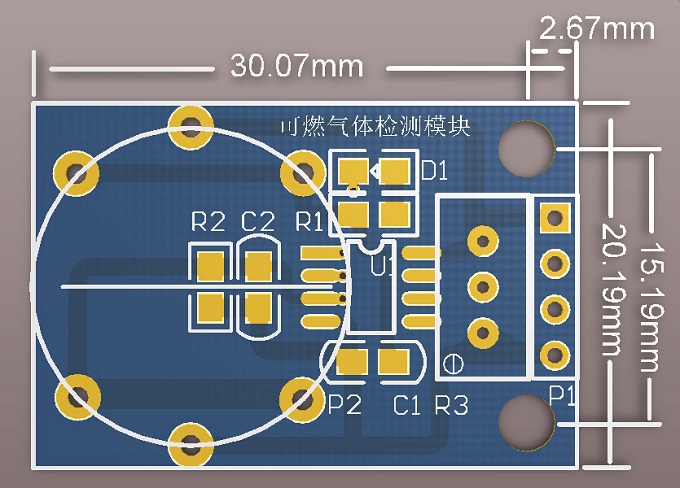

5, a fixed bolt hole for easy installation

Special Note:
When the sensor is powered, heat needs to about 20 s measured data becomes stable, the heat sensor is normal, because the inside with an electric wire, if not hot normal
