ماژول نمایشگر LCD TFT فول کالر 2.2 اینچ

TFT-LCD16173

235-72-1195

457,200 تومان
کالا موجود است
موجودی انبار : 10 عدد


خرید کالا


علاقه مندان : 6 نفر
وضعیت : فعال

تعداد مرجوعی : 0
دنبال کنندگان : 7 نفر

قدمت : 10 سال و 5 ماه و 21 روز
وزن : 23 گرم

کل فروش : 395 عدد
تعداد سفارش ها : 278 سفارش

4 از 5.0 با 35 رای

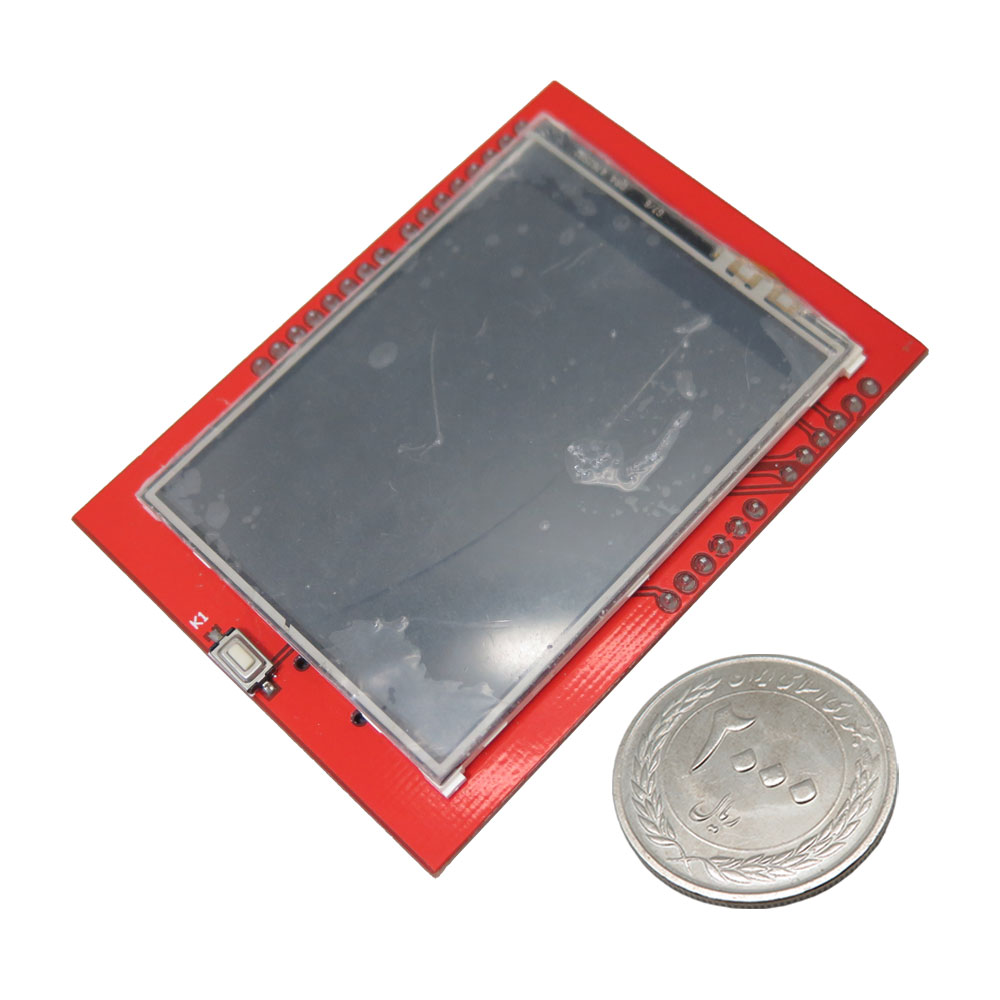

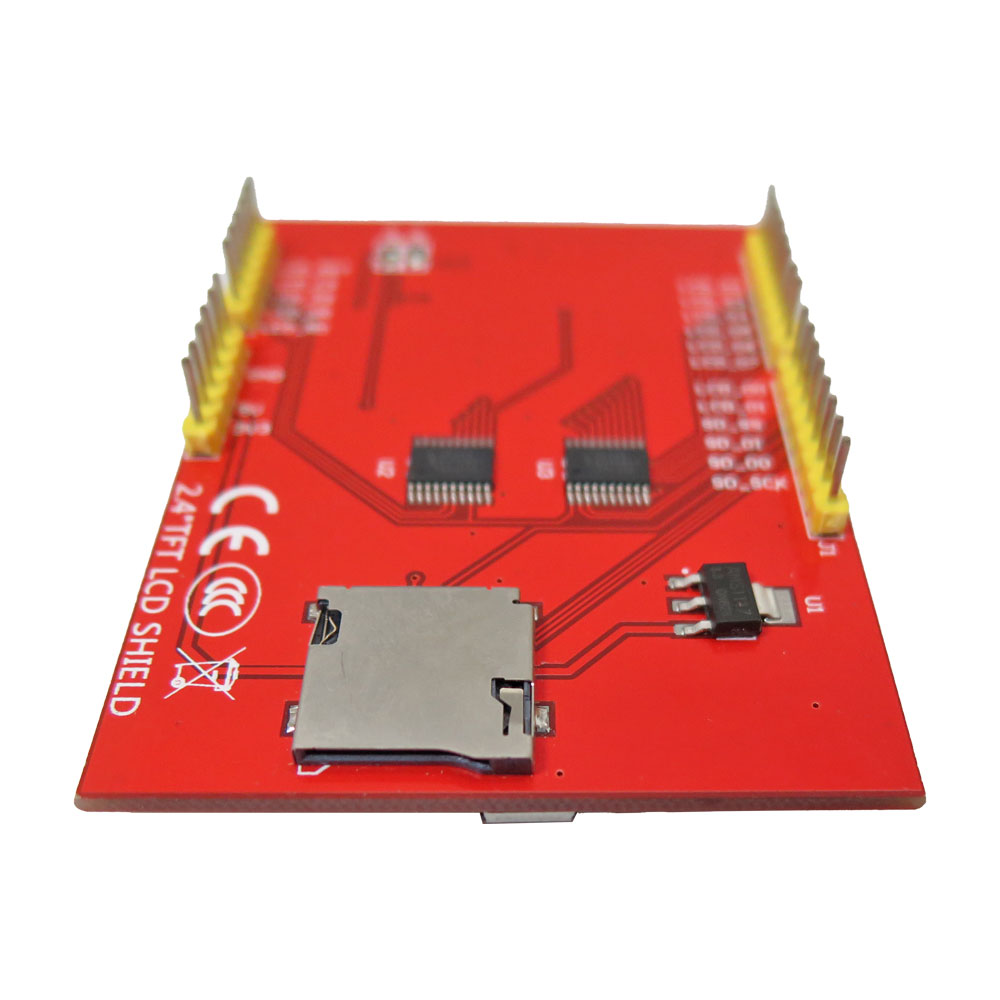

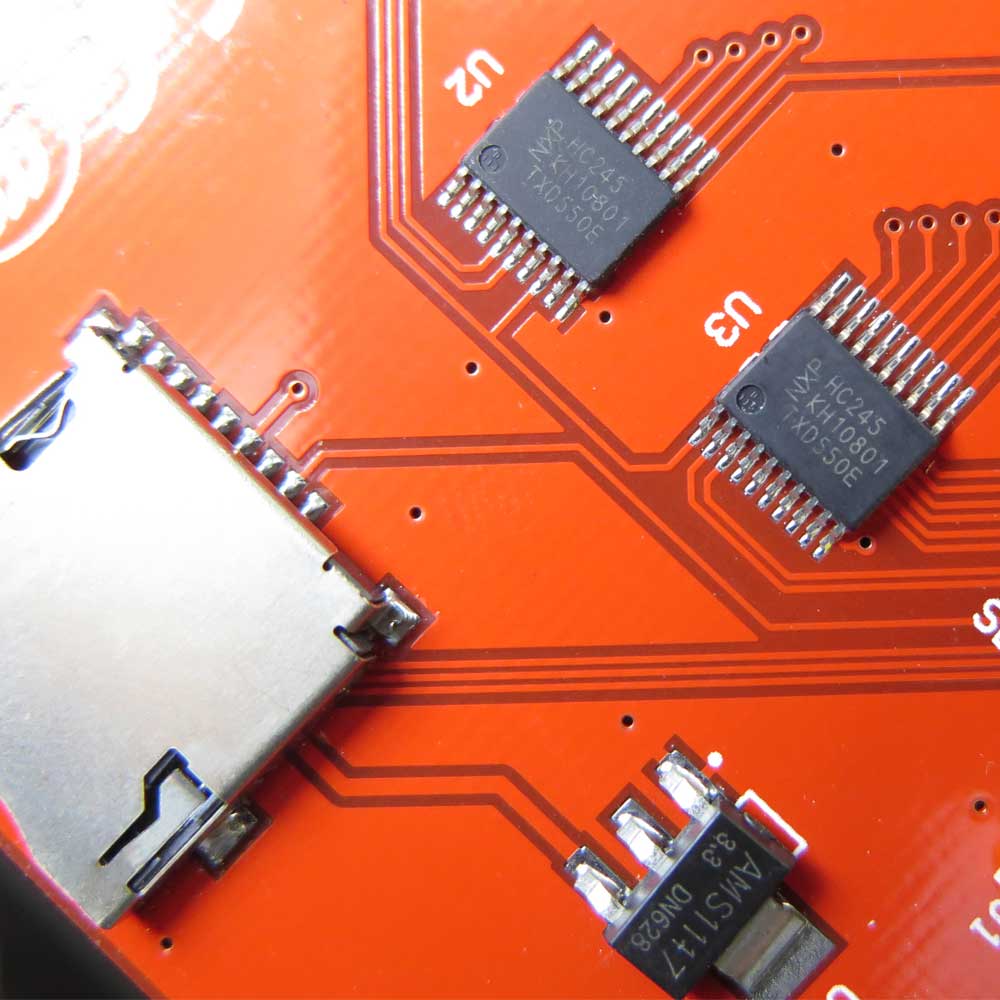

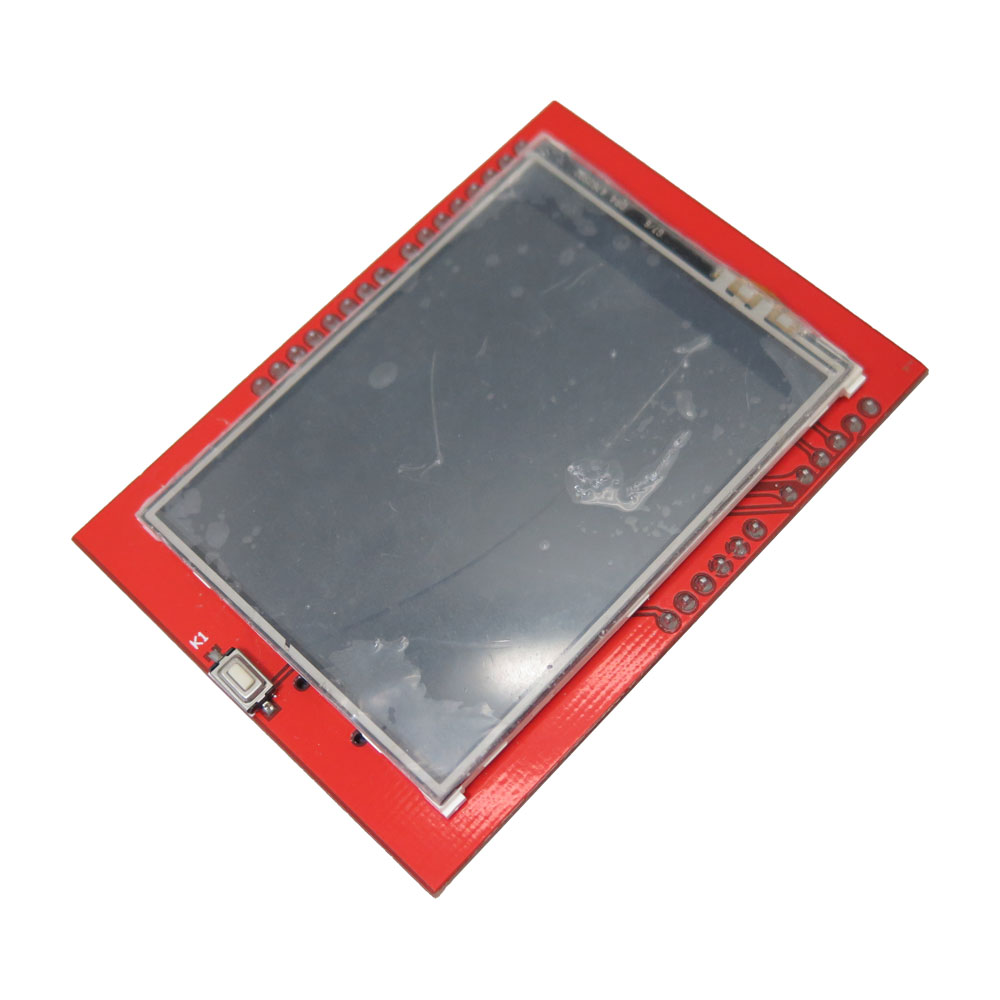

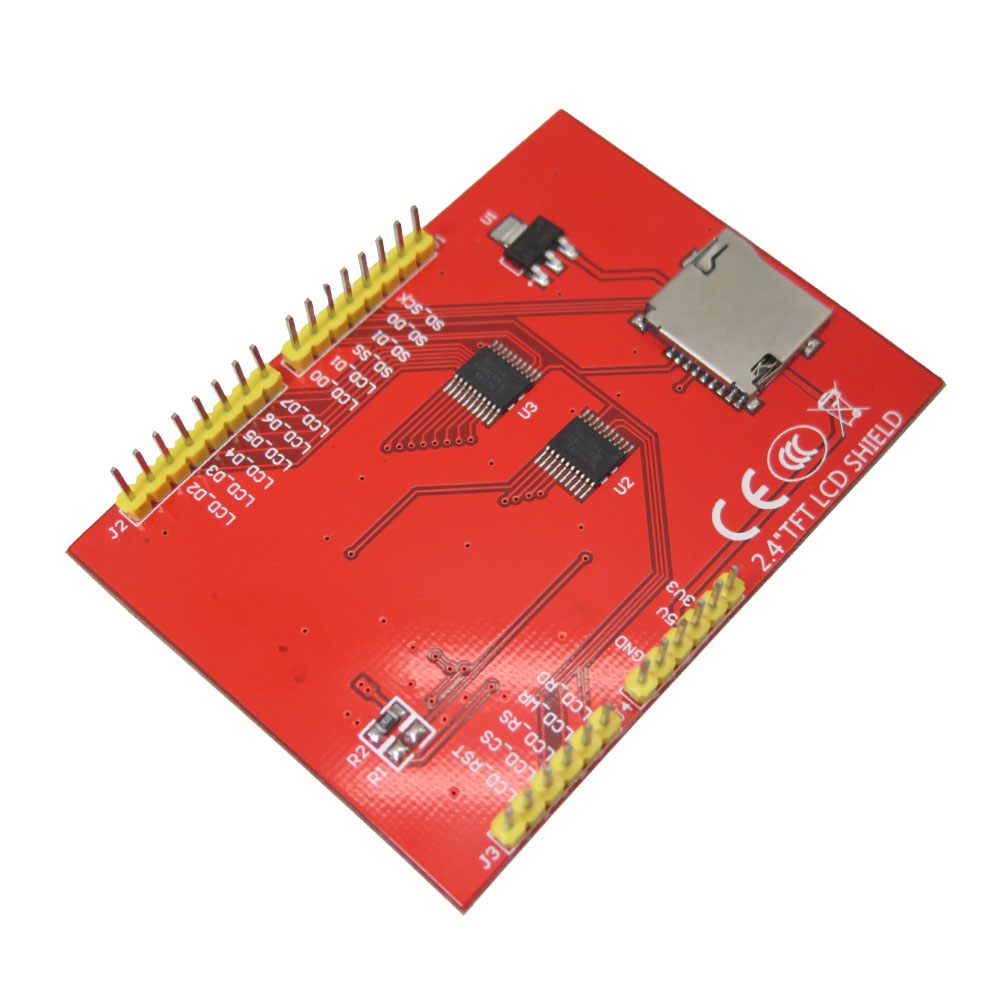

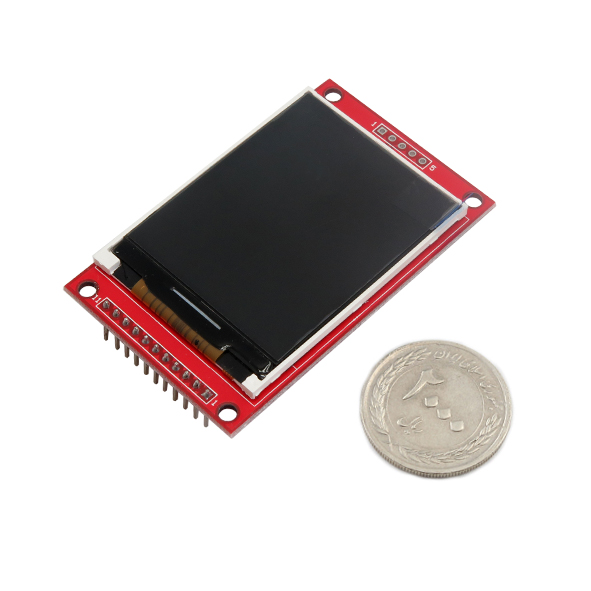

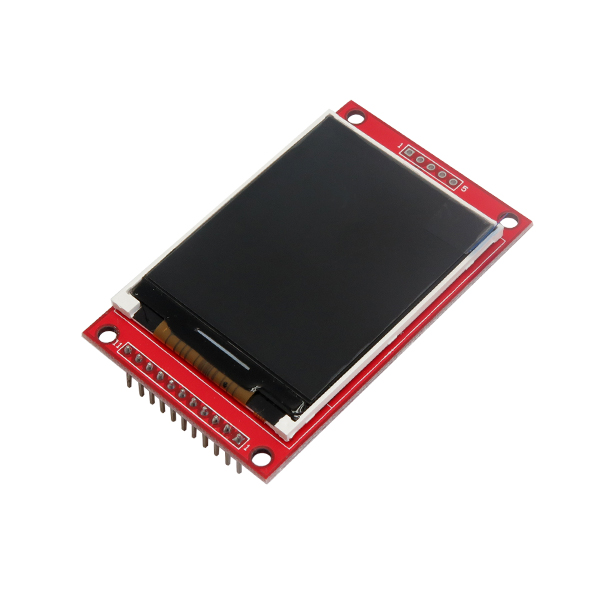

ماژول نمایشگر LCD TFT فول کالر 2.2 اینچ دارای ارتباط SPI
اصطلاح TFT در نمایشگرها مخفف Thin Film Transistor است که به منظور افزایش عملکرد و نمایش اطلاعات، از صفحه نمایش ال سی دی استفاده می شود. نمایشگر TFT نوعی از ال سی دی کریستال مایع می‌باشد که با یک ترانزیستور فیلم نازک به هر پیکسل وصل شده است. این نمایشگر ها مصرف جریان نسبتاً خوبی دارند و معمولا دارای بک لایت (Backlight) و لایه TFT می باشند که باعث کاهش تقاطع بین پیکسل‌ها می‌شود.
ارسال تصویر زمانی اتفاق می‌افتد که یک سیگنال به پیکسل ارسال می شود همچنین بر پیکسل کنار آن تأثیر می گذارد. این امر باعث می شود فن آوری TFT به بهترین فن‌آوری وضوح تصویر و کیفیت تصویر تبدیل شده و در بسیاری از صنایع مختلف از جمله پزشکی، صنعتی، بازی، نظامی و غیره مورد استفاده قرار گیرد.
ماژول های LCD TFT رنگی 2.2 اینچ یکی از ارزان ترین ماژول هایی است که می توان یافت. این ماژول 2.2 اینچ با شفافیت زیاد دارای نور پس زمینه سفید و 16 بیت 65K رنگ مختلف و با 220×176 پیکسل است.
این ماژول نمایشگر دارای پورت ارتباطی چهار سیمه SPI می باشد و درایور این ماژول LCD نمایشگر mILI9225 است که با ولتاژ بین 3.3 تا 5 ولت عمل می کند.

کاربرد ماژول نمایشگر 2.2 اینچ TFT تمام رنگ:

  1. نظامی
  2. پزشکی
  3. بازی
  4. صنعتی

مشخصات ماژول نمایشگر 2.2 اینچ TFT تمام رنگ:

  1. نمایشگر رنگی: 16 بیتی، RGB
  2. اندازه صفحه نمایش: 2.2 اینچ
  3. جنس نمایش: TFT
  4. رابط ماژول: 4 سیمه SPI
  5. بک لایت: 3 ال ای دی سفید
  6. اندازه ماژول پی سی بی: 42.46 × 67.20 میلی متر
  7. دمای کاری: 60 ~ 10- درجه سانتی گراد
  8. دمای نگهداری: 70 ~ 20 - درجه سانتی گراد
  9. توان مصرفی: 90 میلی وات
  10. وزن : حدود 25 گرم

مستندات:
کتابخانه نمایشگر 2.2 اینچی


Description:

A thin-film-transistor liquid-crystal display (TFT LCD) is a variant of a liquid-crystal display (LCD) that uses thin-film-transistor (TFT) technology to improve image qualities such as addressability and contrast. A TFT LCD is an active-matrix LCD, in contrast to passive-matrix LCDs or simple, direct-driven LCDs with a few segments. Each pixel on a TFT LCD has its own transistor on the glass itself, which offers greater control over the images and colors that it renders.

This is a 2.2-inch color screen that supports 16BIT RGB 65K rich color display. The resolution is 176X220 which provides a  clear display. It should be considered that only a few IO can light up the display using SPI serial bus.
This LCD includes convenient function expansion with SD card slot and provides low-level library and rich Arduino, C51, and STM32 platform sample programs. It can be directly connected to Arduino. It greatly accepts 5V and 3.3V power supply along with an onboard ultra-low dropout voltage power regulator circuit.
TFT LCDs are found on low-end smartphones as well as basic cell phones. The technology is also used on TVs, handheld video game systems, computer monitors, and GPS navigation systems.

Features:
Display Color: 16BIT RGB 65K color
SKU: MAR2201
Size: 2.2 inch
Types of Display: TFT
Driver Chip: mILI9225
Resolution: 176 * 220 Pixel
Module Interface: 4-wire SPI interface
Backlight: 3 White Led
Effective Display Area: 34.848 x 43.56 mm
Module PCB Size: 42.46 x 67.20 mm
Operating Temperature: -10 ℃ ~ 60 ℃
storage Temperature: -20 ℃ ~ 70 ℃
Operating Voltage: 5V / 3.3V
Power Consumption: About 90mw
Product Weight: About 25 (g)

Specification:
Military-grade process standard, long-term stable work
Provide low-level drive technical support
Onboard a reliable and stable level conversion circuit, support 5V / 3.3V IO level
The onboard backlight control circuit, support IO control backlight or PWM dimming

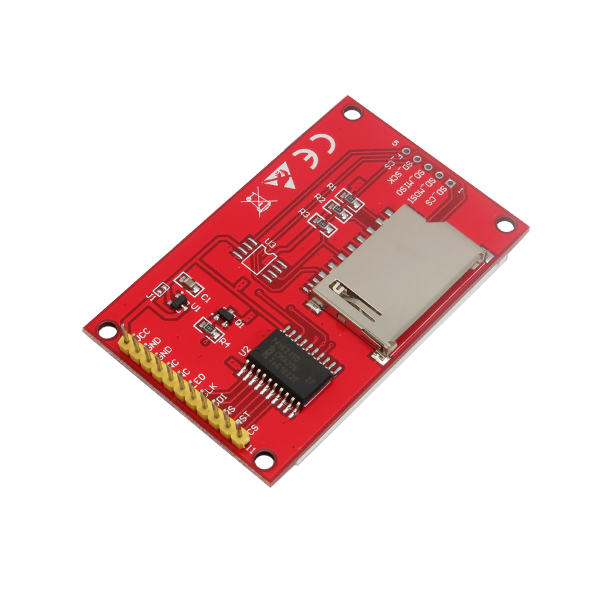

Onboard SD card circuit, easy to extend applications
Reserved SPI FLASH pad, easy to extend applications

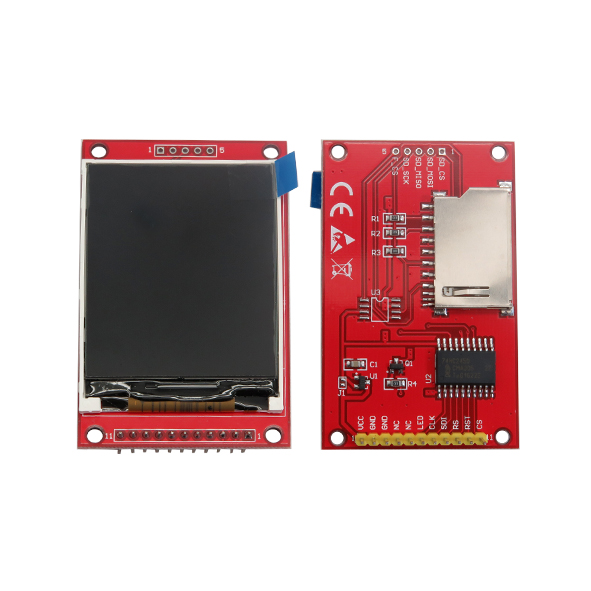

Pinouts:
1. VCC: Positive LCD power supply (3.3V ~ 5V)
2. GND: LCD power supply
3. GND: LCD power supply
4. NC: Undefined, reserved
5. NC: Undefined, reserved
6. led: Backlight control, high-level lighting, if no control is required, then connect to 3.3V
7. CLK: LCD screen SPI bus clock signal
8. SDI: LCD screen SPI bus write data signal
9. RS: LCD register / data selection signal, low level: register, high level: data
10. RST: LCD reset signal, low level reset
11. CS: LCD screen chip select signal, low level enable
