باتری خورشیدی فتوولتاییک 12 ولت 10 وات

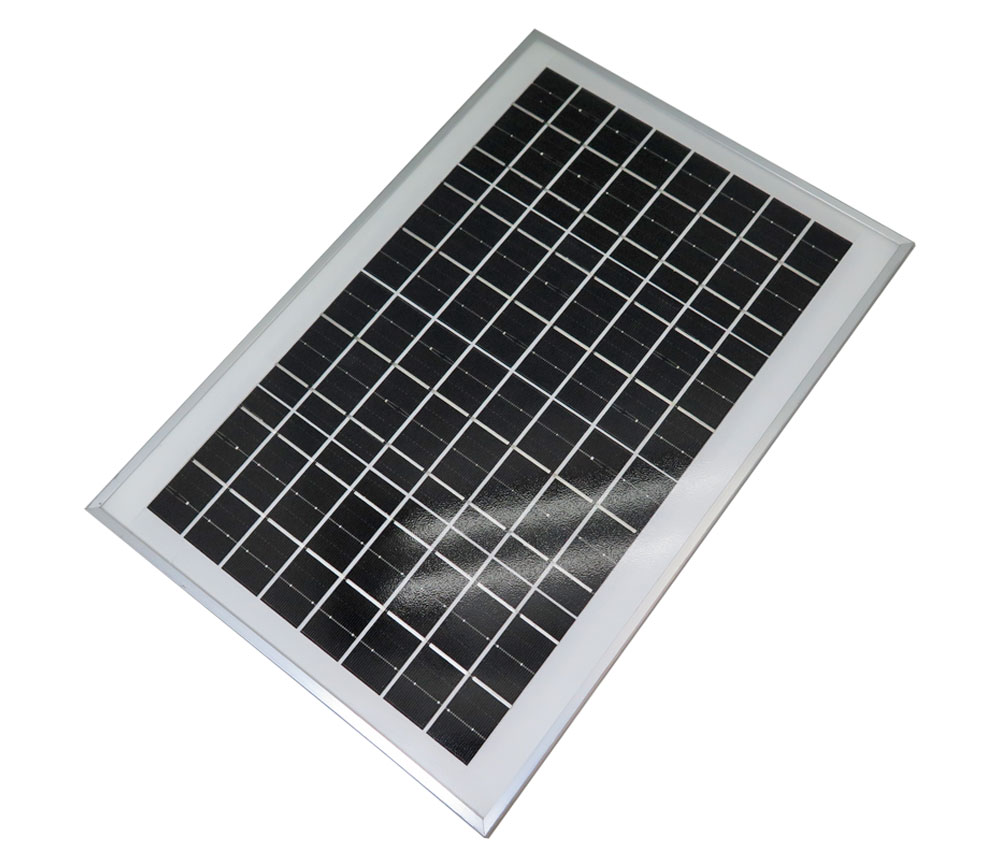

پنل خورشیدی فتوولتاییک 12 ولت 10 وات

کاربرد باتری خورشیدی 12ولت 10 وات:

1. پکیج های برق خورشیدی سیار
2. شارژهای پرتابل
3. چراغ های روشنایی خیابانی
4. چراغ های باغچه ای

مشخصات باتری خورشیدی 12ولت 10 وات:

1. مدل: HN-010M

2. حداکثر ولتاژ: 18 ولت

3. ولتاژ مدار حلقه باز: 21.6 ولت

4. جریان حداکثر: 0.55 آمپر

5. جریان اتصال کوتاه: 0.61 آمپر

6. توان حداکثر: 10 وات

7. وزن: 1.1 کیلوگرم


مستندات:

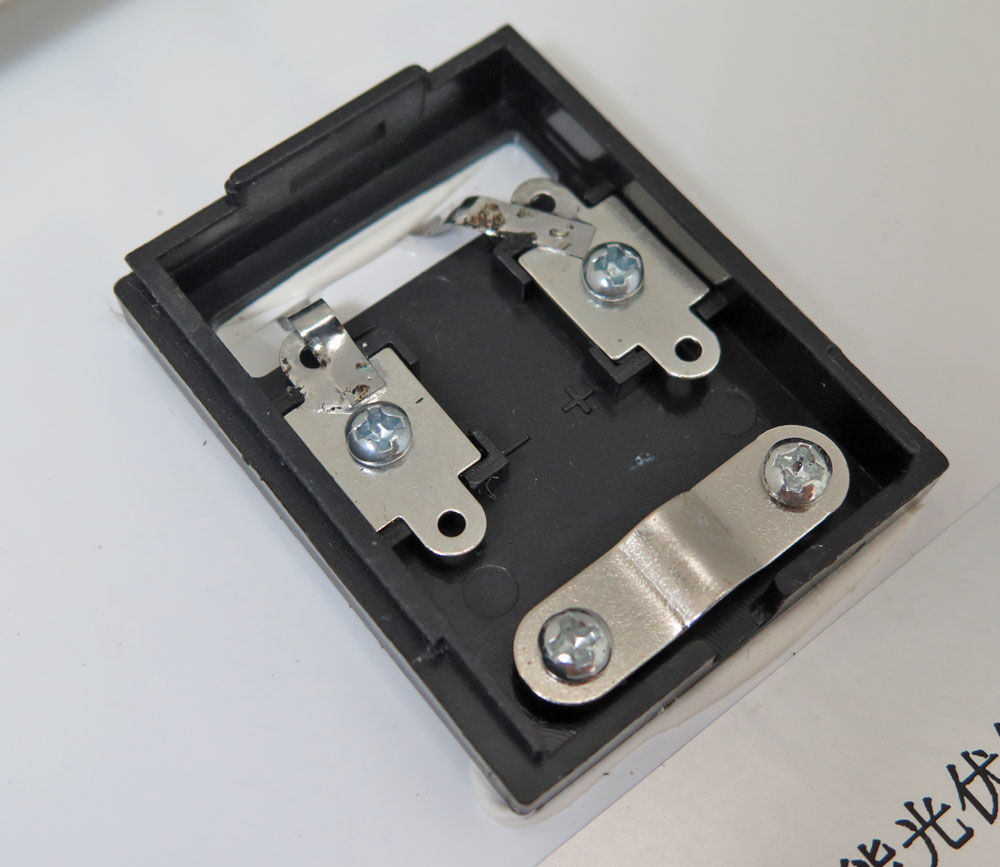

ساختار داخلی پنل خورشیدی

Description:
A photovoltaic (PV) cell, also known as a solar cell, is an electronic component that generates electricity when exposed to photons or particles of light. A photovoltaic system employs solar modules, each comprising a number of solar cells, which generate electrical power. PV installations may be ground-mounted, rooftop mounted, wall-mounted, or floating. The mount may be fixed or use a solar tracker to follow the sun across the sky. Efficiency is the ratio of electrical power produced by the cell to the amount of sunlight it receives. To measure efficiency, the cells are combined into modules, which are in turn assembled into arrays.
Monocrystalline solar cells are more efficient because they are cut from a single source of silicon. Polycrystalline solar cells are blended from multiple silicon sources and are slightly less efficient. Thin-film technology costs less than mono or poly panels, but is also less efficient.

Application:
Mobile solar power packages
Portable chargers
Street lights
Garden lights

Features:
Model: HN-010M
Peak voltage: 18V
Open circuit voltage: 21.6V
Peak current: 0.55A
Short Circuit Current: 0.61A
Pmax: 10W
Weight: 1.1Kg
