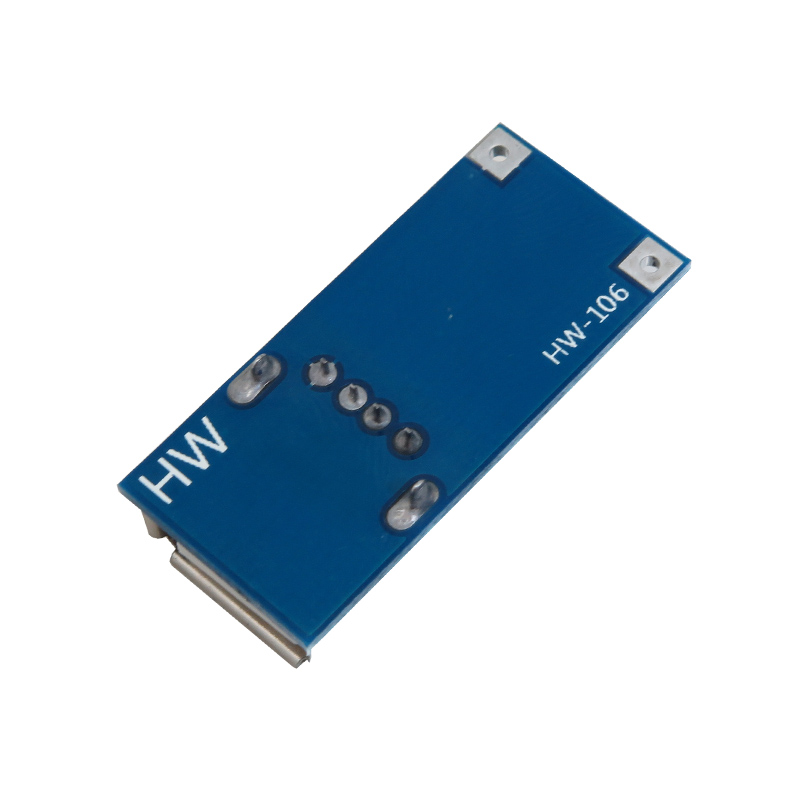

ماژول رگولاتور DC به DC افزاینده دارای خروجی 600mA 5V USB

ماژول رگولاتور DC به DC افزاینده دارای خروجی 600mA 5V USB

توسط ماژول تقویت کننده جریان یا Booster می‌توانید ولتاژ ورودی را با جریان تقویت شده در خروجی به صورت USB تبدیل کنید. بر روی ماژول مبدل و تقویت کننده DC to DC usb 600 ma قرار دارد. عملکرد و کارایی این ماژول در حد 96 درصد می‌باشد. خروجی این ماژول 5 ولت ثابت می باشد. از این رو انتخاب مناسب برای ساخت پاور بانک PowerBank می‌باشد. به طور کلی این ماژول یک افزاینده ولتاژ از نوع بوست می باشد که می تواند ولتاژ بین 0.9 تا 5.0 ولت را به 5.0 ولت مستقیم با جریان 600 میلی آمپر تبدیل کند.
این ماژول با خروجی مادگی USB که کاربرد فراوانی دارد و با طراحی بسیار جم و جور و استفاده از قطعات کوچک، می توان در موارد مختلف آن را به کار برد. یک LED بر روی این ماژول قرار دارد که وضعیت عملکرد مدار را نمایش می‌دهد.

Description:
A boost converter (step-up converter) is a DC-to-DC power converter that steps up voltage (while stepping down current) from its input (supply) to its output (load). It is a class of switched-mode power supply (SMPS) containing at least two semiconductors (a diode and a transistor) and at least one energy storage element: a capacitor, inductor, or the two in combination. To reduce voltage ripple, filters made of capacitors (sometimes in combination with inductors) are normally added to such a converter's output (load-side filter) and input (supply-side filter). A process that changes one DC voltage to a different DC voltage is called DC to DC conversion. A boost converter is a DC to DC converter with an output voltage greater than the source voltage. A boost converter is sometimes called a step-up converter since it "steps up" the source voltage.
Most DC-to-DC converters are designed to move power in only one direction, from dedicated input to output. However, all switching regulator topologies can be made bi-directionally and able to move power in either direction by replacing all diodes with independently controlled active rectification. A bidirectional converter is useful, for example, in applications requiring regenerative braking of vehicles, where power is supplied to the wheels while driving, but supplied by the wheels when braking.
DC to DC converter is used in portable electronic devices such as cellular phones and laptop computers, which are supplied with power from batteries primarily. Such electronic devices often contain several sub-circuits, each with its own voltage level requirement different from that supplied by the battery or an external supply (sometimes higher or lower than the supply voltage). Additionally, the battery voltage declines as its stored energy are drained. Switched DC to DC converters offer a method to increase the voltage from a partially lowered battery voltage thereby saving space instead of using multiple batteries to accomplish the same thing.
Most DC to DC converter circuits also regulates the output voltage. Some exceptions include high-efficiency LED power sources, which are a kind of DC to DC converter that regulates the current through the LEDs, and simple charge pumps which double or triple the output voltage.

Applications:
Automotive applications.
Power amplifier applications.
Adaptive control applications.
Battery power systems.
Consumer Electronics.
Communication Applications Battery Charging circuits.
Heaters and welders.
DC motor drives.

Features:
1. On-board ultra-small PFM controlled DC / DC boost controller chip
2. Any input 0.9V ~ 5V DC voltage output 5V DC voltage can be stable, with two AA batteries input to output 500 ~ 600MA current single AA battery output current 200ma about for mobile phones, camera, single-chip, digital products supply. Can stabilize the output voltage of 5V DC
3. Onboard USB female seat: you can directly interface device for USB-powered
4. Board input voltage indicator
5. PCB size: 34 x 16.2 mm
