ترموستات دیجیتال XH-W1309 با نمایشگر دما، کنترل رله و هشدار

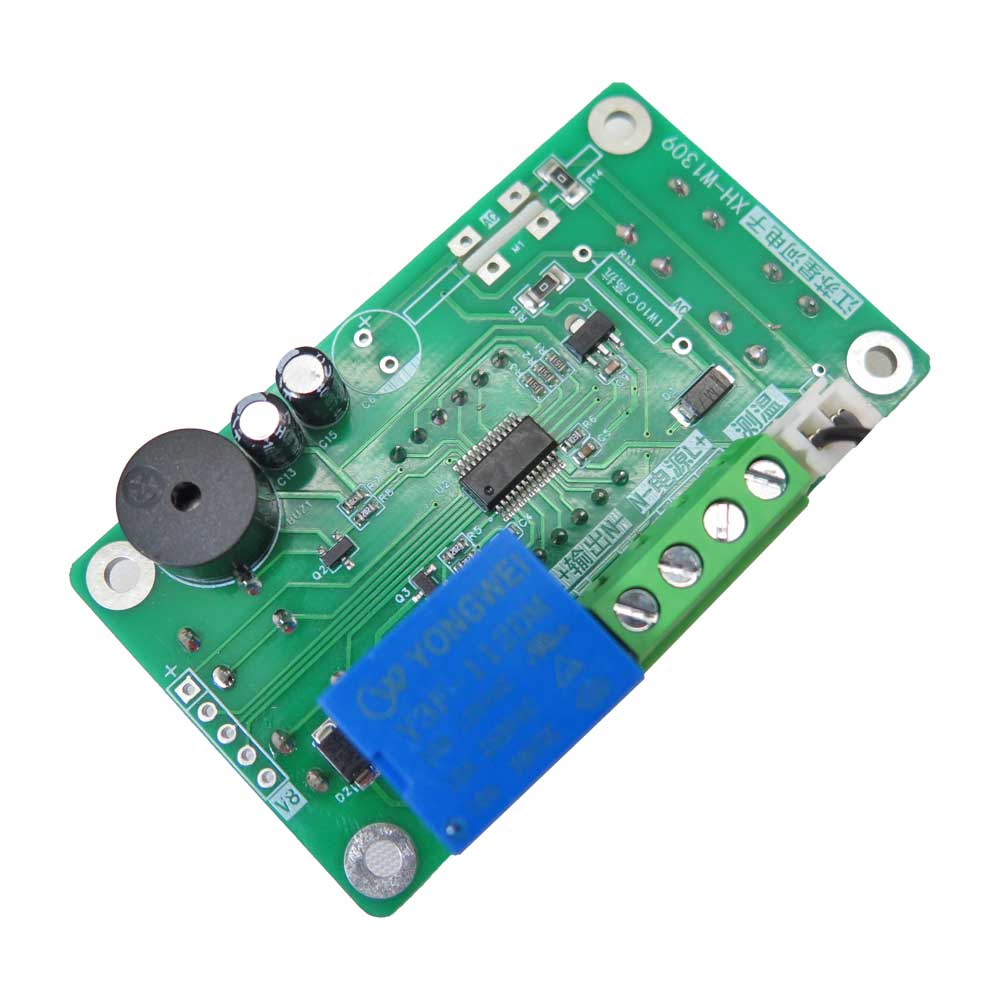

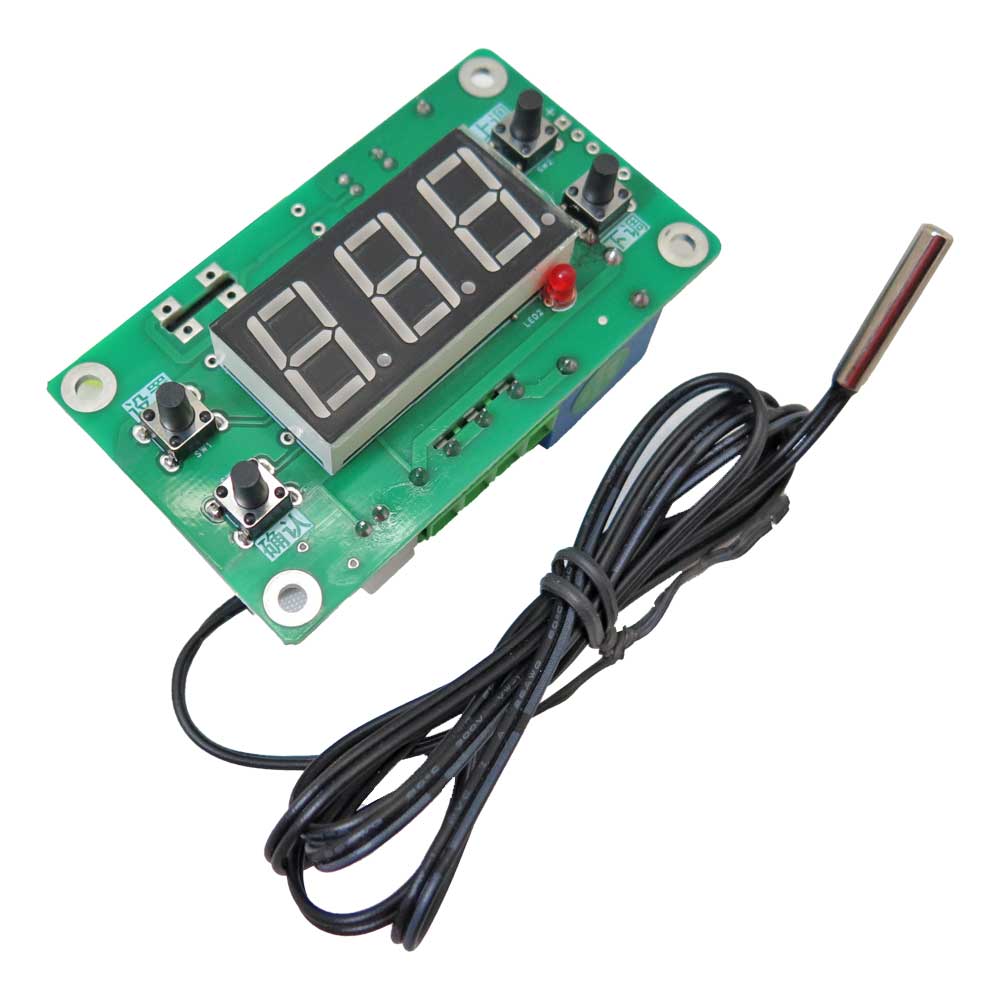

XH-W1309 Digital Temperature Controller

Technical Specifications

1. Model: XH-W1309
2. Product Type: Digital Temperature Controller
3. Operating Voltage: 12V DC
4. Temperature Control Range: -50°C to +110°C
5. Stated Temperature Control Accuracy: 0.1°C
6. Temperature Sensor: NTC 10K
7. Sensor Characteristic: B3950
8. Control Method: On/Off Control
9. Operating Modes: Heating and Cooling
10. Output Type: Direct output, according to the manufacturer's description

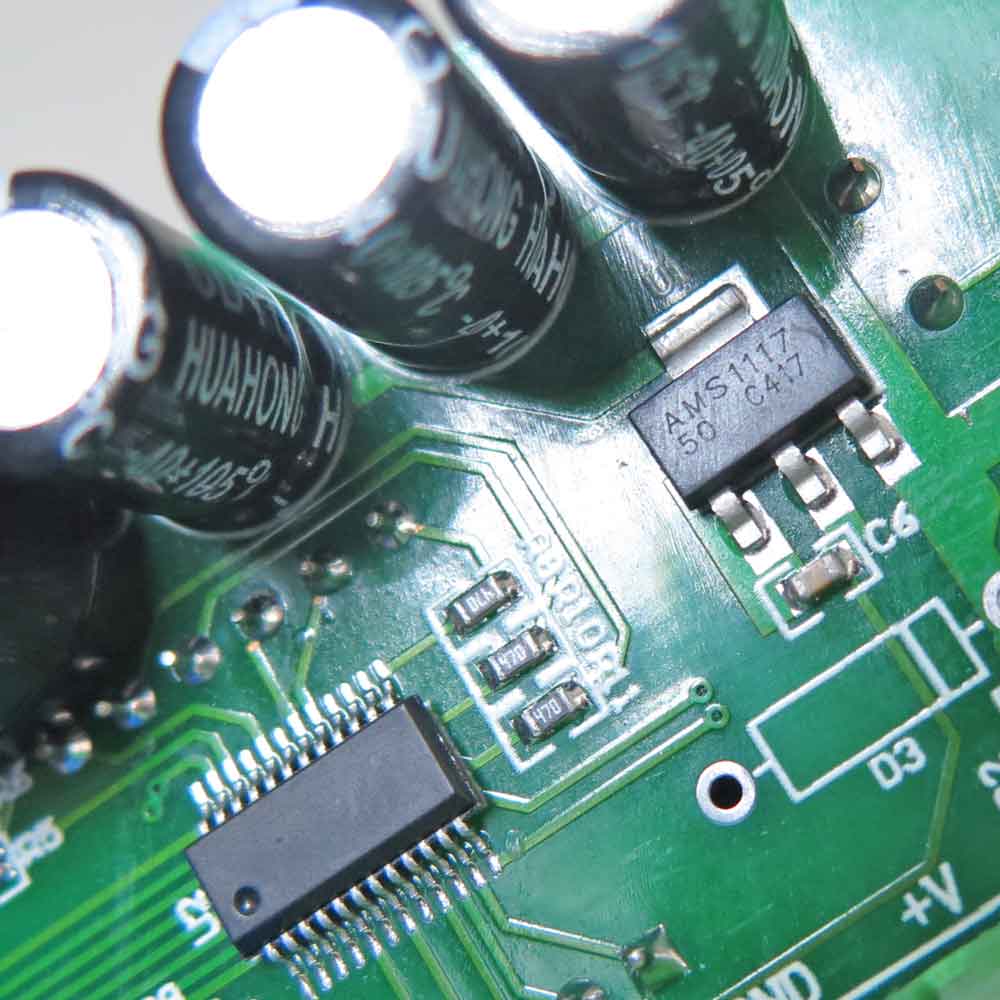

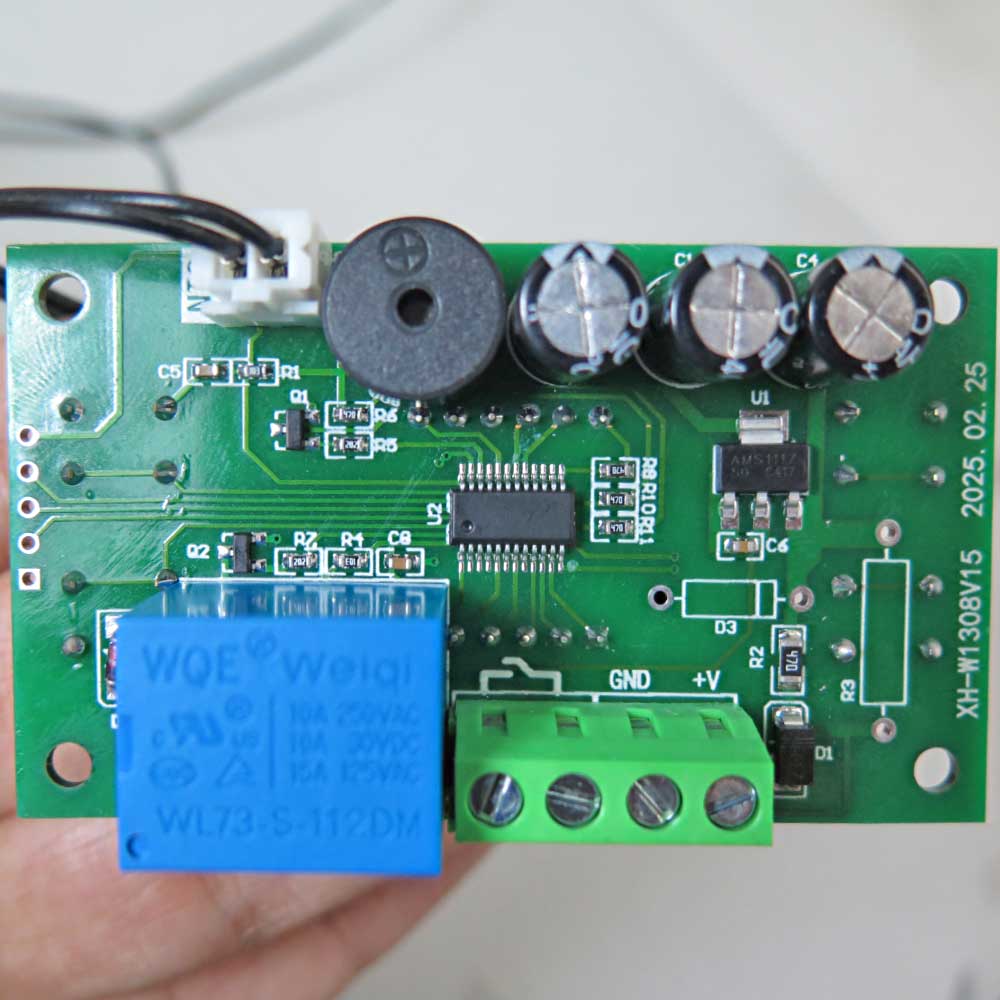

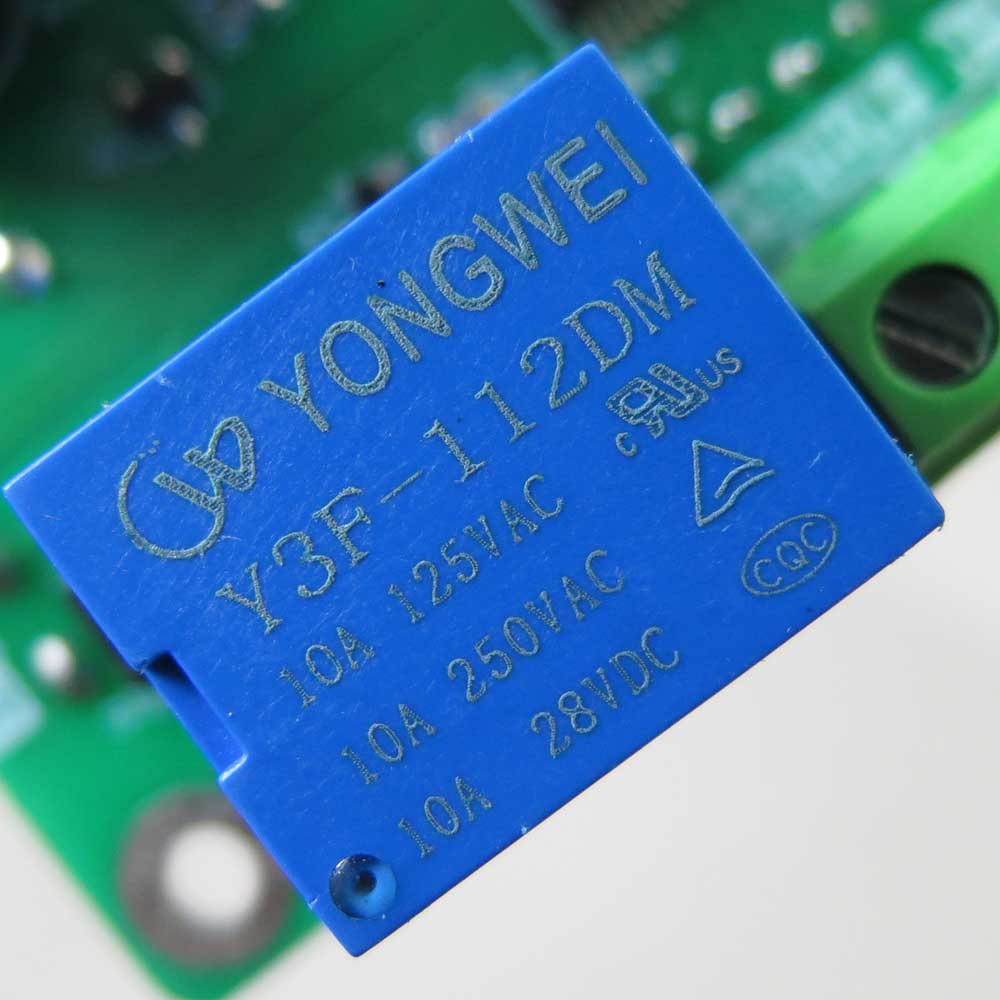

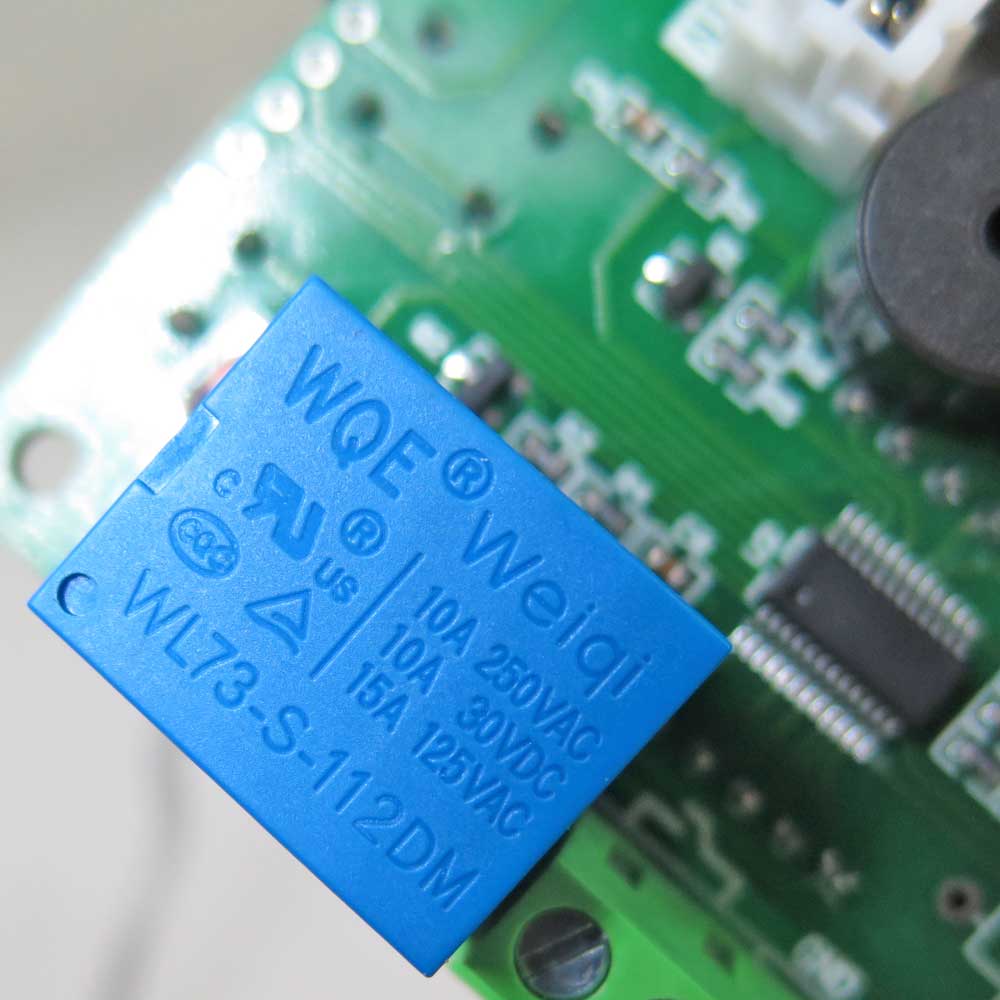

11. Maximum Specified Output Capacity: 10A
12. Adjustable Upper Temperature Limit: Supported
13. Adjustable Lower Temperature Limit: Supported
14. Temperature Correction: Supported
15. Adjustable Startup Delay: Supported
16. Adjustable High-Temperature Alarm: Supported

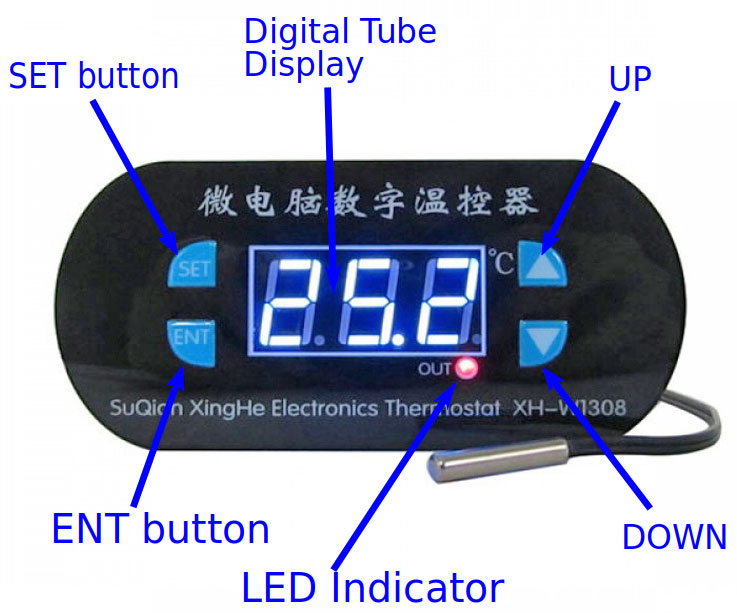

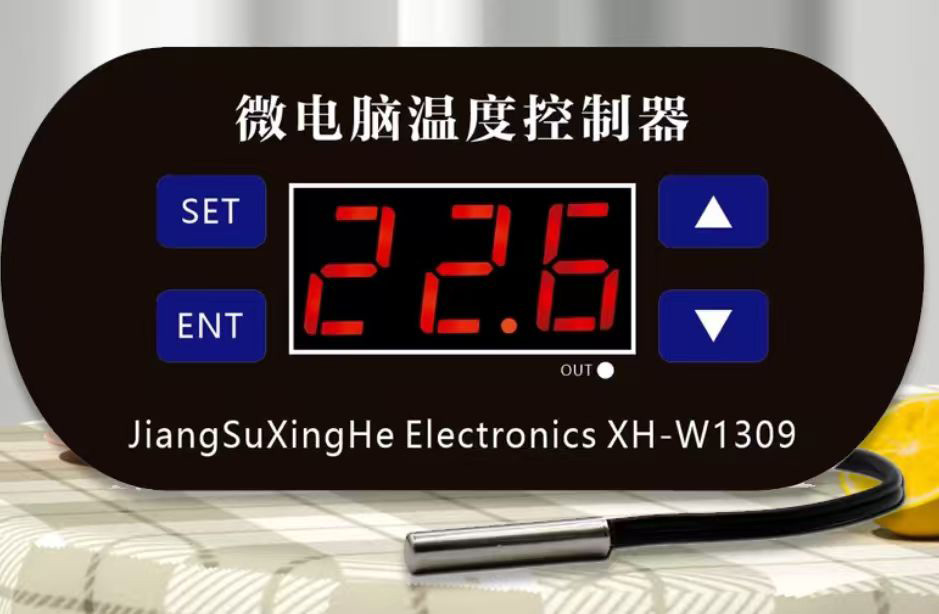

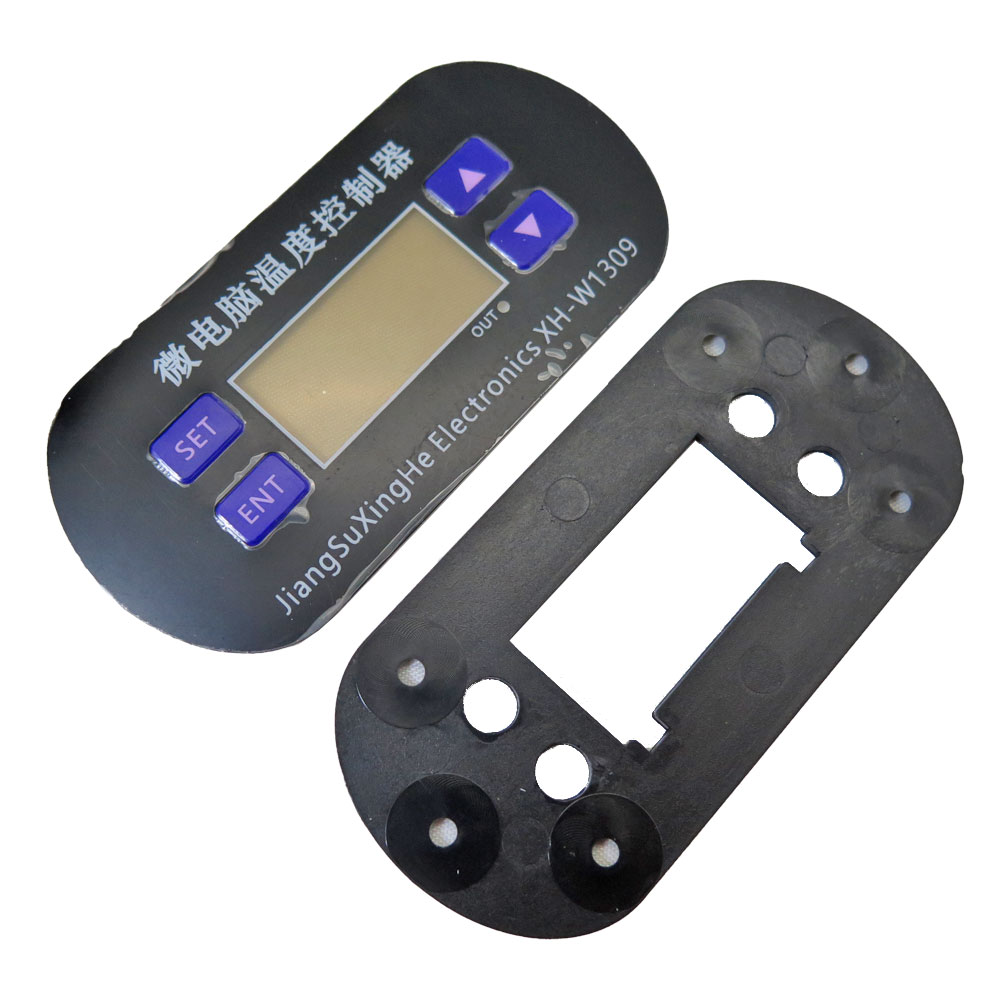

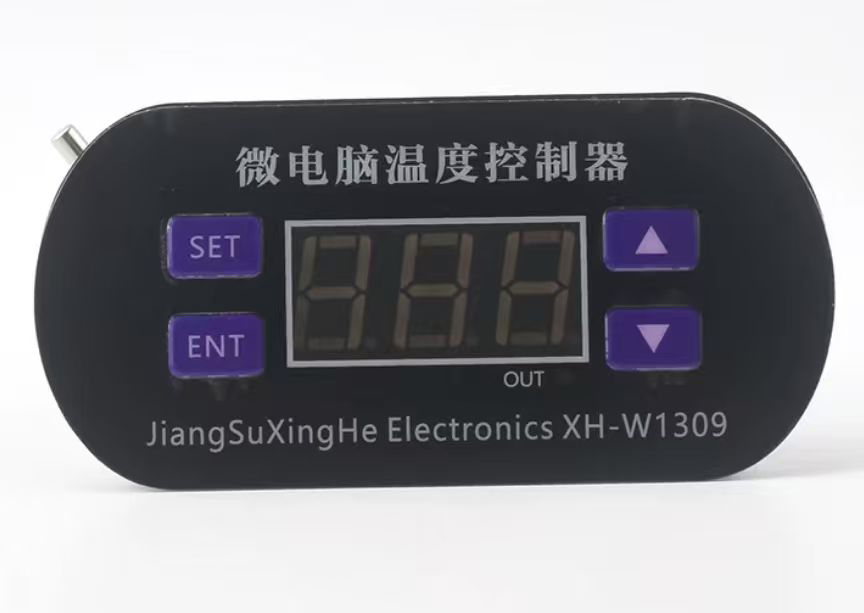

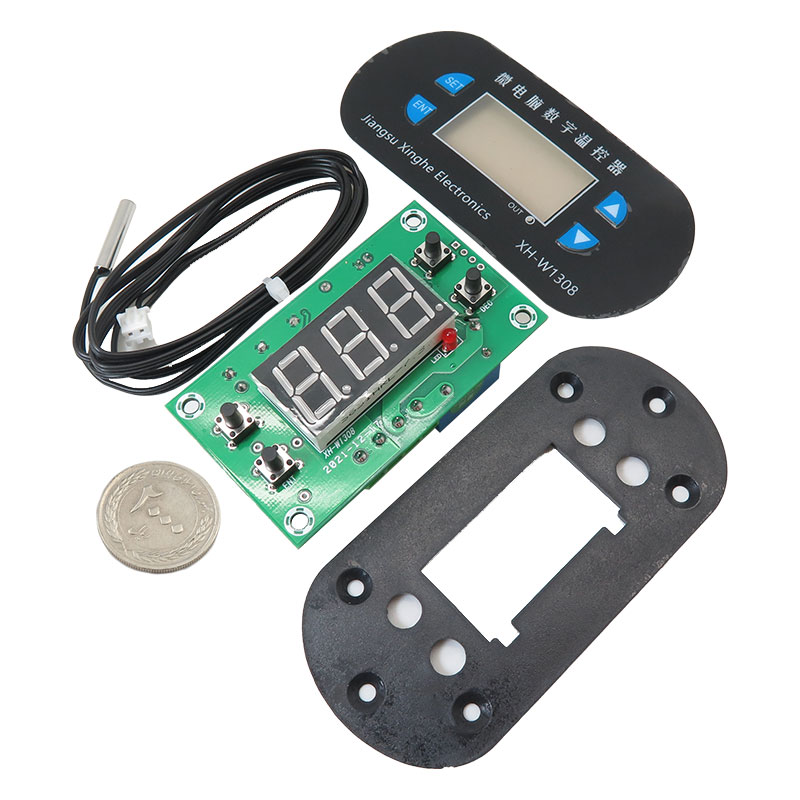

17. Control Buttons: SET, ENT, Increase, and Decrease
18. Output Status Indicator: OUT
19. Overall Dimensions: 100 × 48 mm
20. Panel Cutout Dimensions: 71 × 42 mm

Applications

1. Temperature control in compatible heating and cooling equipment.
2. Temperature regulation in refrigerators and freezers, subject to verification of electrical compatibility and load requirements.
3. Temperature monitoring and control in greenhouses and plant-growing enclosures.
4. Temperature monitoring in electronic equipment cabinets and enclosures.
5. Educational, laboratory, and automation projects involving temperature control.
6. Control of compatible heaters and fans in heating or cooling applications.
7. Temperature-control projects requiring adjustable high-temperature alarms and startup delays.

Features

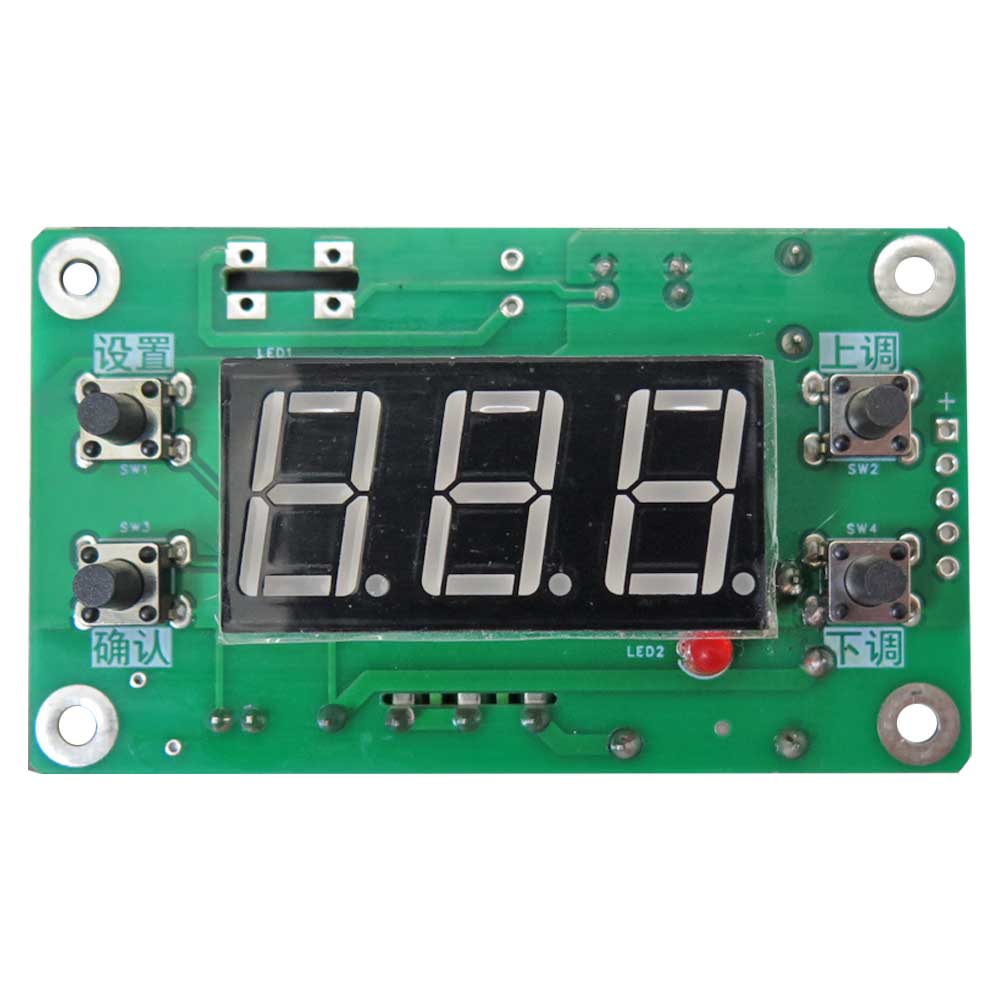

1. Digital display of the measured temperature.
2. Temperature setting through the control buttons.
3. Heating and cooling operating modes.
4. Adjustable upper and lower temperature limits.
5. Temperature correction to compensate for measurement deviations.
6. Adjustable startup delay before output activation.
7. Configurable high-temperature alarm.
8. OUT indicator for monitoring the output status.
9. ENT button for confirming settings.
10. SET button for accessing configuration parameters.
11. 12V DC power supply for this product version.
12. Automatic temperature control for compatible external equipment.

Operating Instructions

Use the SET, ENT, Increase, and Decrease buttons to configure the controller. Select the appropriate heating or cooling mode according to the application. Set the required temperature limits, temperature correction value, startup delay, and high-temperature alarm as needed. Verify the displayed temperature against a reliable reference thermometer when adjusting temperature correction. Check the OUT indicator to monitor the output status.

Power Supply and Output Safety

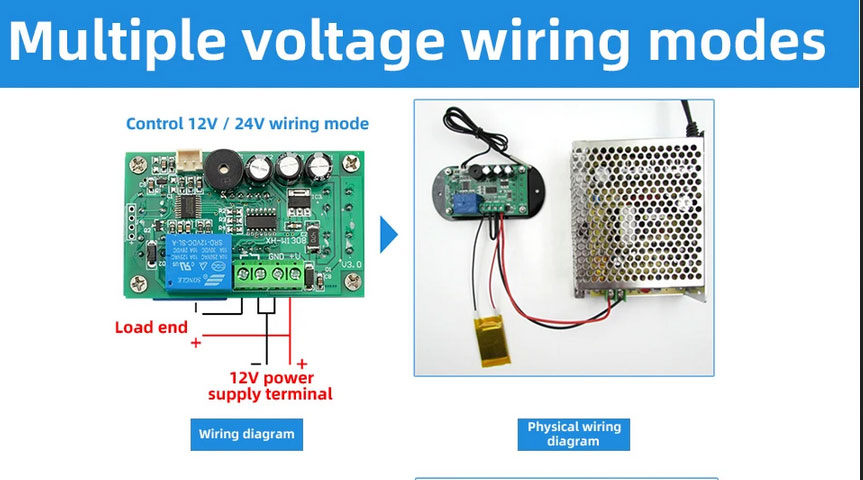

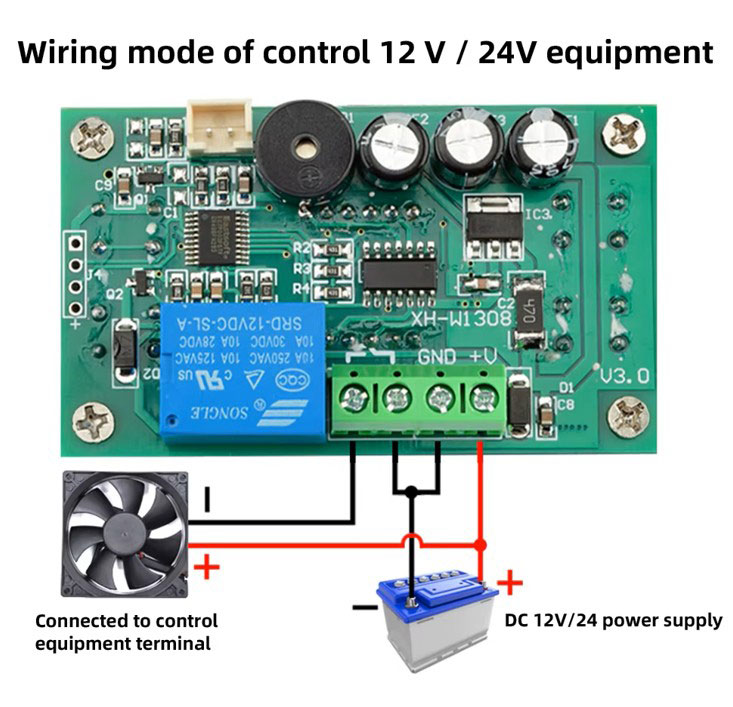

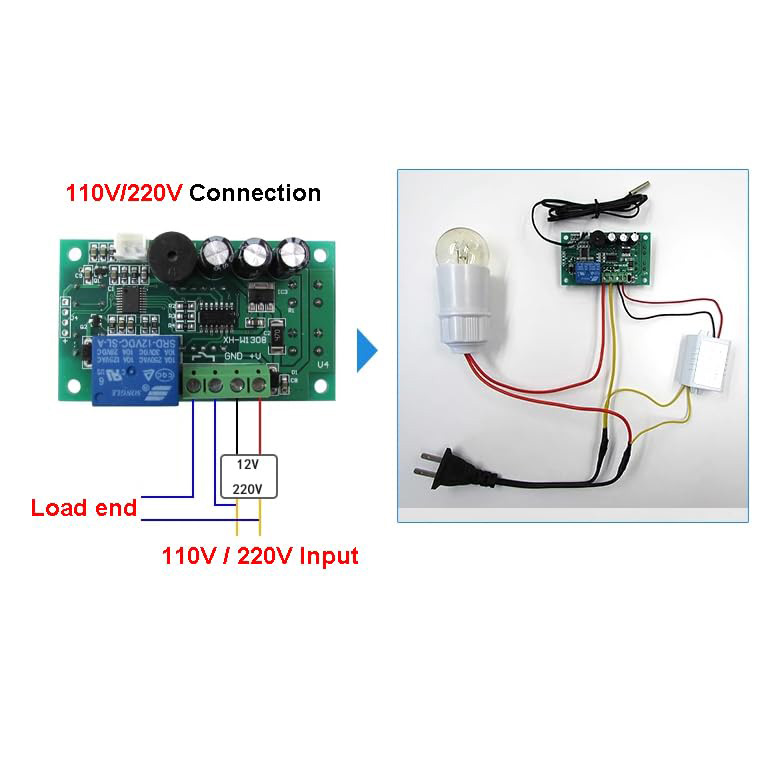

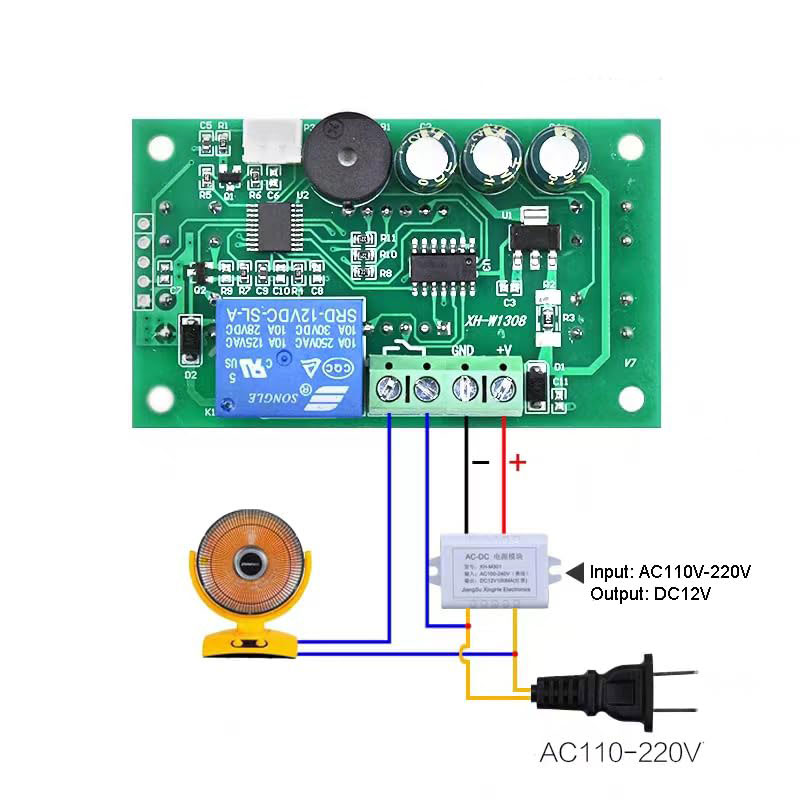

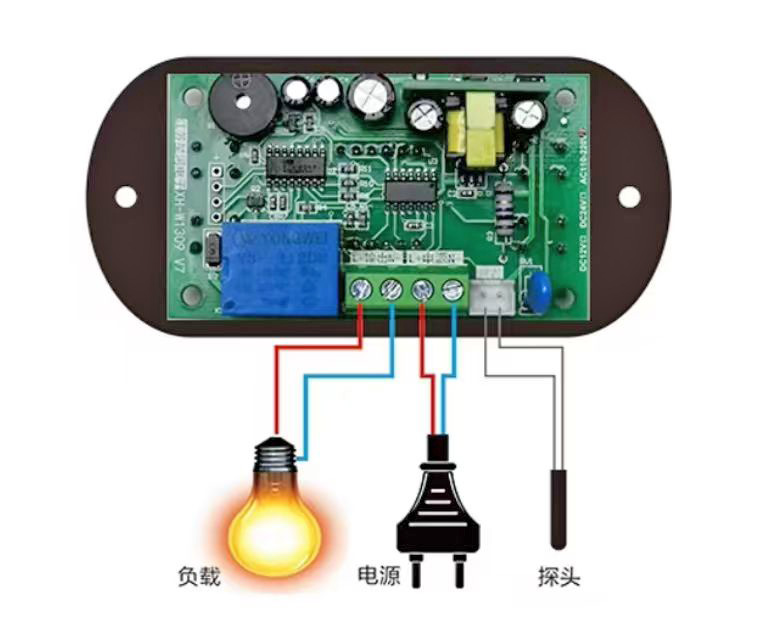

This version requires a 12V DC power supply. Verify the correct polarity before connecting power. The manufacturer specifies a maximum output capacity of 10A; however, the permitted load and exact output wiring must be verified using the wiring diagram for the supplied version. Consider startup current and switching requirements when controlling inductive loads such as motors and compressors. An appropriately rated external relay or contactor may be required for certain loads.

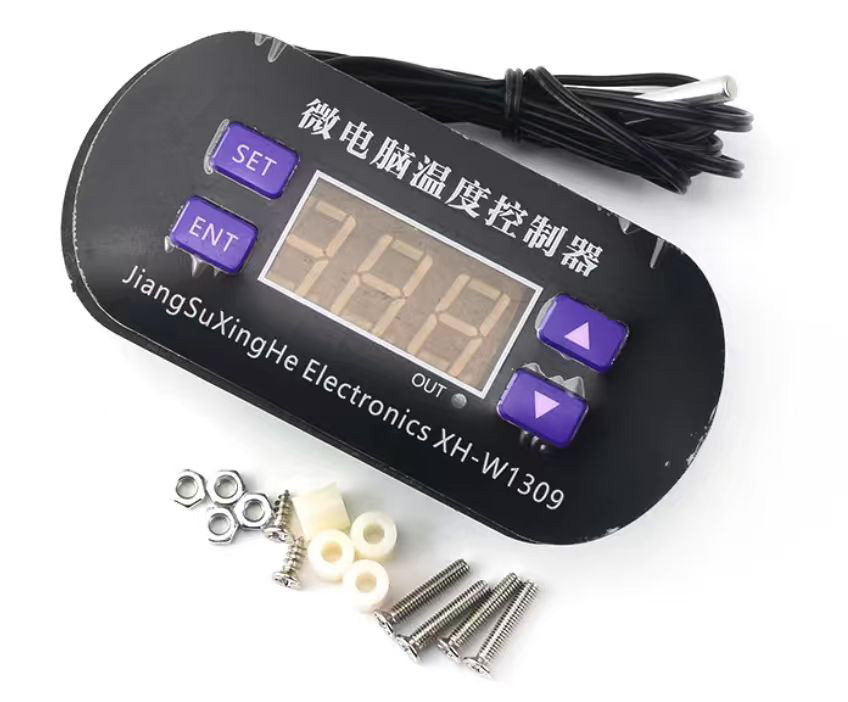

Dimensions and Installation

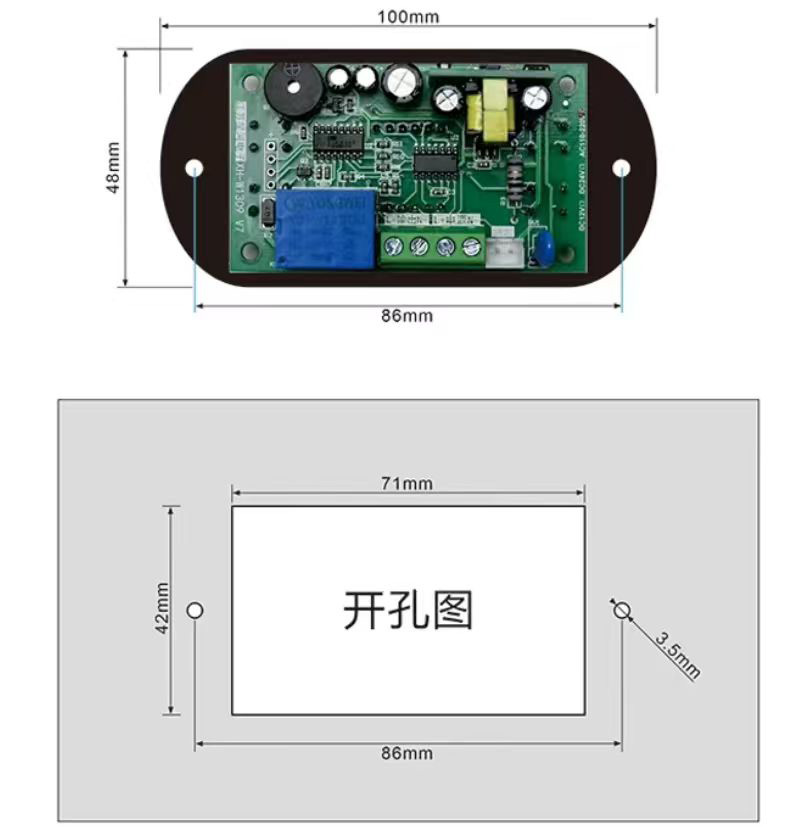

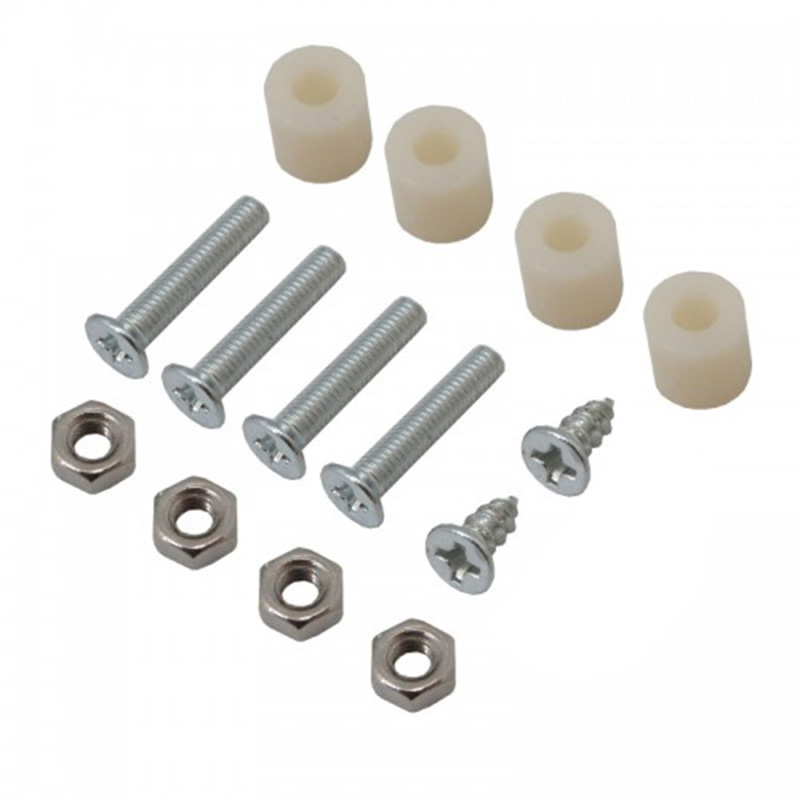

The overall dimensions are 100 × 48 mm, and the specified panel cutout dimensions are 71 × 42 mm. Check the available installation space and wiring clearance before mounting the controller.
