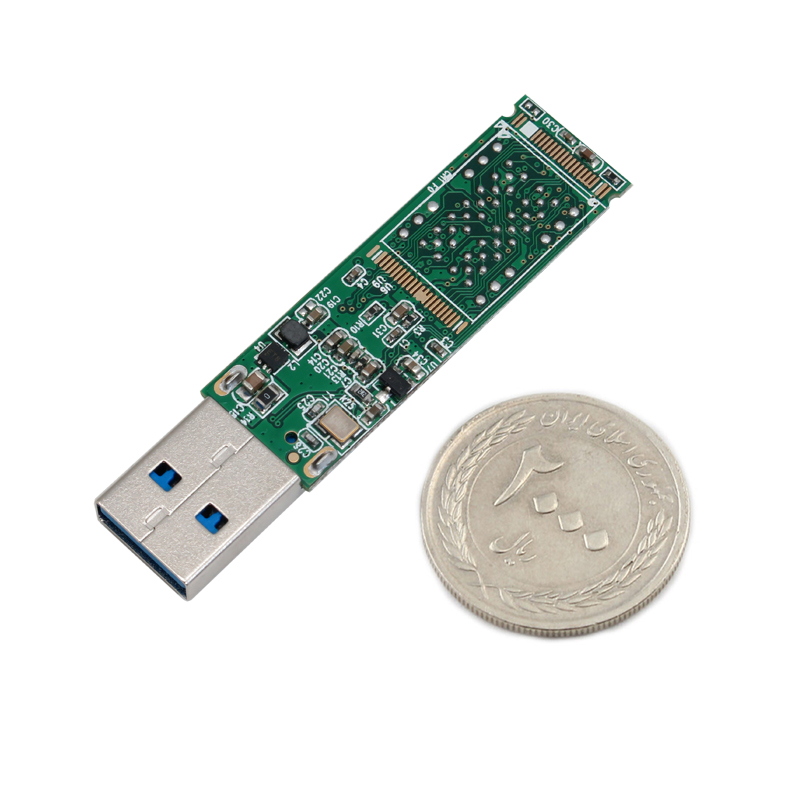

ماژول درایور Nand Flash دارای ارتباط USB3.0 مناسب برای پکیج های LGA52 / TSOP48
Description
IS902 is the latest USB-3.0 interface Nand Flash Controller. With flexible firmware code supporting,IS902 can support various flash technology including 4k / 8k page MLC and SLC by different 4xnm / 3xnm / 2xnm process for major flash vendors.
Features
Flash Support
1. 4xnm, 3xnm, 2xnm process Flash from various vendors
2. One Channel / two channel data bus by small footprint package
3.Up to 8 CEs to support max. 16 Flash dies per channel
4. SLC / MLC types Nand Flash supported
5.EF-Nand Flash supported
6.ONFI 2.1 spec. interface supported
7.Toggle DDR interface supported
USB Interface
1.Compliant with USB 3.0 spec. version 1.0
2.Compliant with USB 2.0 spec. backward compatible with USB1.1
3.Compliant with USB Mass Storage Class spec. version 1.0
4.ECC protect 27 / 24 bit by 1K bytes, 6 bit by 512 bytes
5.High performance 1T 8051 with hardware acceleration DMA
6.F/W off-load engine embedded
7. 1.2V low power consumption design
8.LED indicator to show link status and r/w traffic
9.Customized VID/ PID with serial number
10.Smart Auto-write protection by user friendly AP
11.30Mhz Crystal
Specifications:
Host:USB3.0
controller:IS902E
Package:LGA52 and TSOP48
Total Length :59mm
Board Length:44mm
Case:Yes
