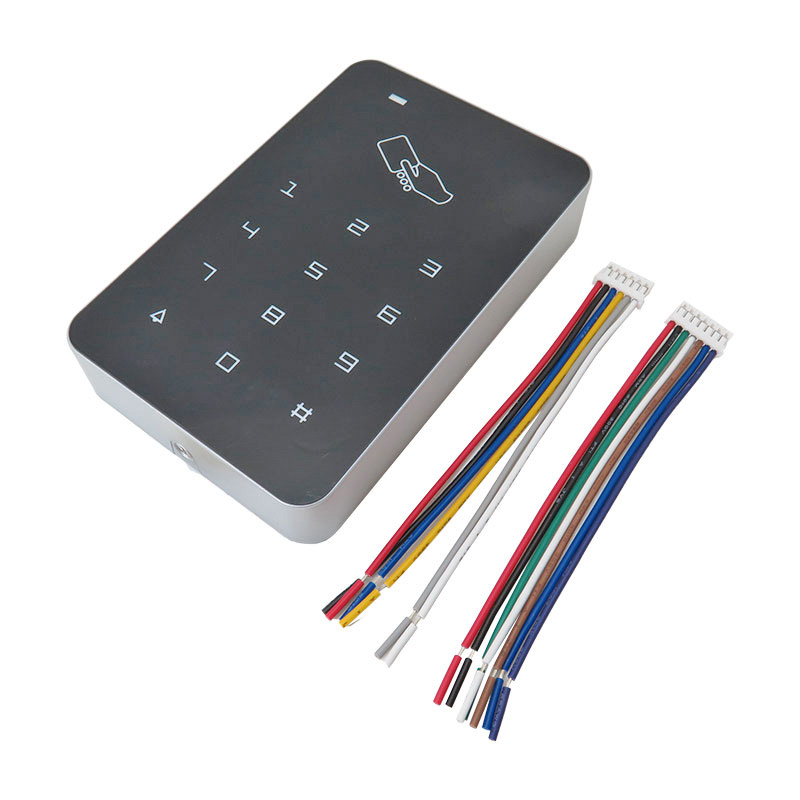

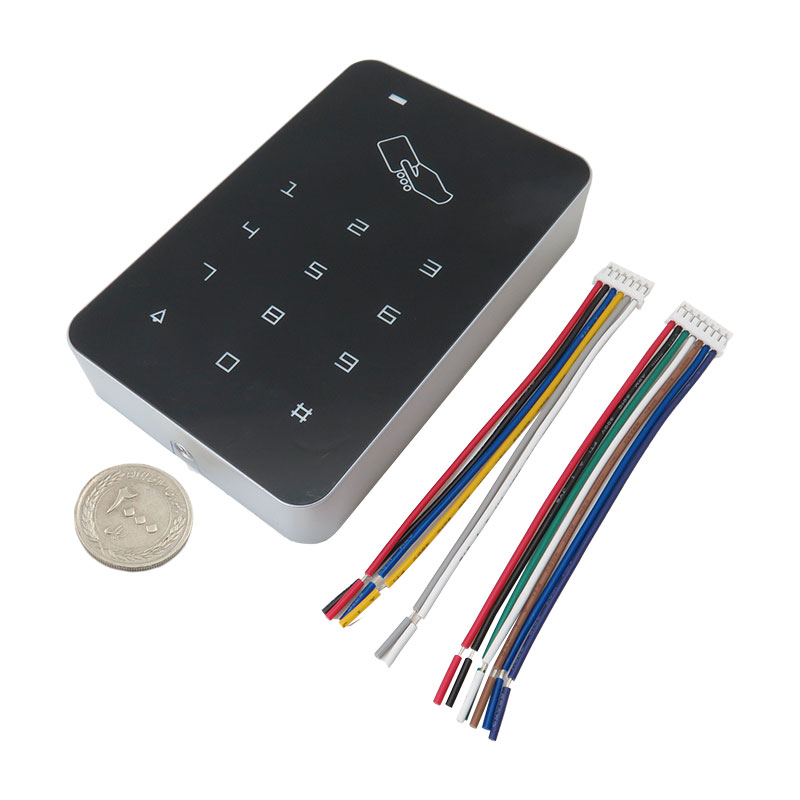

دستگاه کنترل تردد ( اکسس کنترل ) دارای کلیدهای لمسی و قابلیت خواندن کارت RFID ( فرکانس 125KHZ)

ID-ACRFID-125

2813-169-4586

659,360 تومان
کالا موجود است
موجودی انبار : 27 عدد


خرید کالا


علاقه مندان : 7 نفر
وضعیت : فعال

تعداد مرجوعی : 0
دنبال کنندگان : 6 نفر

قدمت : 6 سال و 11 ماه و 2 روز
وزن : 124 گرم

کل فروش : 741 عدد
تعداد سفارش ها : 171 سفارش

4 از 5.0 با 9 رای
دستگاه کنترل تردد ( اکسس کنترل ) دارای کلیدهای لمسی و قابلیت خواندن کارت RFID ( فرکانس 125KHZ)
دستگاه های اکسس کنترل یا همان دستگاه کنترلر تردد دارای یک یا چند رله می باشند که دستگاه پس از تشخیص مجاز بودن افراد برای فرمان دادن به قفل برقی جهت باز شدن درب از آنها استفاده می کند. همچنین می توان از این کنترلر ها برای فرمان دادن به انواع جک پارکینگ و دربهای اتوماتیک استفاده نمود. امکان گذارش گیری از ترددها به منظور حضور و غیاب افراد و کارکنان یک مجموعه نیز دربعضی از مدل های این دستگاهها وجود دارد. همچنین می توانند به درب بازکن های اتوماتیک دستور بدهند تا در صورت شناسایی افراد اجازه ورود را خواهد داد.
این دستگاه هوشمند درب بازکن قابلیت پشتیبانی از کارت RFID و صفحه کلید را دارد. این دستگاه نیز قابلیت ذخیره سازی 1000 کاربر را در خود دارد. ولتاژ تغذیه این دستگاه 12 ولت و جریانی کمتر از 100 میلی آمپر از منبع می کشد. فرکانس کاری RFID این دستگاه در رنج Mifare 125KHz می باشد و فقط تگهای همین رنج فرکانسی قابل استفاده در این دستگاه می باشند.
با استفاده از این دستگاه کنترل امکان صدور فرمان خروجی در حالت های مختلف دستگاه مانند کار با رمز کیبوردی، کار با تگ، RFID و کار با استفاده همزمان از رمز کیبوردی و کارت RFID وجود دارد و شما می توانید به این دستگاه زنگ درب هم وصل کنید و با فشردن کلید زنگ بر روی دستگاه، زنگ را به صدا در آورید.
فرکانس کاری این دستگاه 125 کیلوهرتز است. این دستگاه قابلیت خواندن کارت از فاصله 1 تا 15 سانتی متر را دارد.
دستگاه اکسس کنترلر کار خود را در سه مرحله ی ورودی اطلاعات فرد در دستگاه ، احراز هویت افراد و تایید هویت فرد انجام می دهد.

کاربرد دستگاه کنترل تردد :

  1. حضور و غیاب
  2. دربهای اتوماتیک

مشخصات دستگاه کنترل تردد :

  1. ولتاژ کاری: 12 ولت DC
  2. جریان: کمتر از 100 میلی آمپر
  3. وزن: 110 گرم
  4. جنس پنل: اکریلیک
  5. ظرفیت پین عمومی 4 رقمی: 1
  6. کارت های سازگار: کارت سازگار با EMID یا ID
  7. فرکانس خوان نزدیک: 125 کیلوهرتز
  8. فاصله کارتخوانی: 1 ~ 15 سانتی متر
  9. دمای کارکرد: 0~60C
  10. رطوبت نسبی: 20 تا 90 درصد

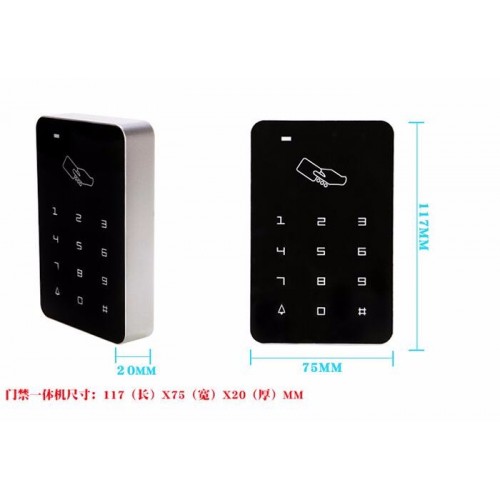

  11. ابعاد: 116 × 75 × 20 میلی متر
  12. گزینه های باز کردن در (قابل انتخاب توسط کاربر): فقط کارت شناسایی / فقط رمز عبور / کارت شناسایی (حلقه کلید) + رمز عبور

Description:
Radio-frequency identification (RFID) uses electromagnetic fields to automatically identify and track tags attached to objects. An RFID tag consists of a tiny radio transponder: a radio receiver and transmitter. When triggered by an electromagnetic interrogation pulse from a nearby RFID reader device, the tag transmits digital data, usually an identifying inventory number, back to the reader. This number can be used to inventory goods. There are two types. Passive tags are powered by energy from the RFID reader's interrogating radio waves. Active tags are powered by a battery and thus can be read at a greater range from the RFID reader; up to hundreds of meters. Unlike a barcode, the tag doesn't need to be within the line of sight of the reader, so it may be embedded in the tracked object.
RFID technology is popularly employed in access control systems to allow only the entry of authenticated and authorized personnel to secure spaces. Elsewhere, RFID technology is also applied in several other fields, such as supply chain inventory, gate control in parking garages, retail checkout lines, and even race timing. RFID can be either active, in which it has its own power source and a high range, or passive, in which it is powered by a reader and works at shorter distances.
Access control is a security technique that regulates who or what can view or use resources in a computing environment. It is a fundamental concept in security that minimizes risk to the business or organization.
There are two types of access control: physical and logical. Physical access control limits access to campuses, buildings, rooms, and physical IT assets. Logical access control limits connections to computer networks, system files and data. Door readers also use this same technology. Each RFID reader is equipped with a small antenna, which sends its own radio waves with the purpose of detecting any RFID tag or card within its range. This range can vary for each reader depending upon the frequency of the radio waves it emits, anywhere from about 10 centimeters to around one meter. The RFID reader decodes the unique stored information being emitted from the corresponding RFID badge and sends the signal to its host software, which either grants or denies access to the user. It is widely used in Offices, Server rooms, Homes, Airports, Defense, Data centers, etc.

Application:
home
office
residential area
public places

Features:
Operating Voltage: 12V DC
Current: Less than 100mA
Weight: 110g
Panel Material: Acrylic
4-digits Public PIN Capacity: 1
External Reader: Not support
Compatible Cards: EMID or ID compatible card
Proximity Reader Frequency: 125KHz
Card Reading Distance: 1~15cm
Operate Temperature: 0~60C
Relative Humidity: 20%~90%
Dimension: 116 x 75 x 20mm
Door Open Options (admin user selectable): ID Card Only / Password Only / ID Card (Key Ring) + Password

Specification:
Contactless RFID transponder technology
Full programming from the keypad
Support Card, PIN, Card + PIN
Connection for external release button
Valid password: General 1 set
User capacity: 1000 users
