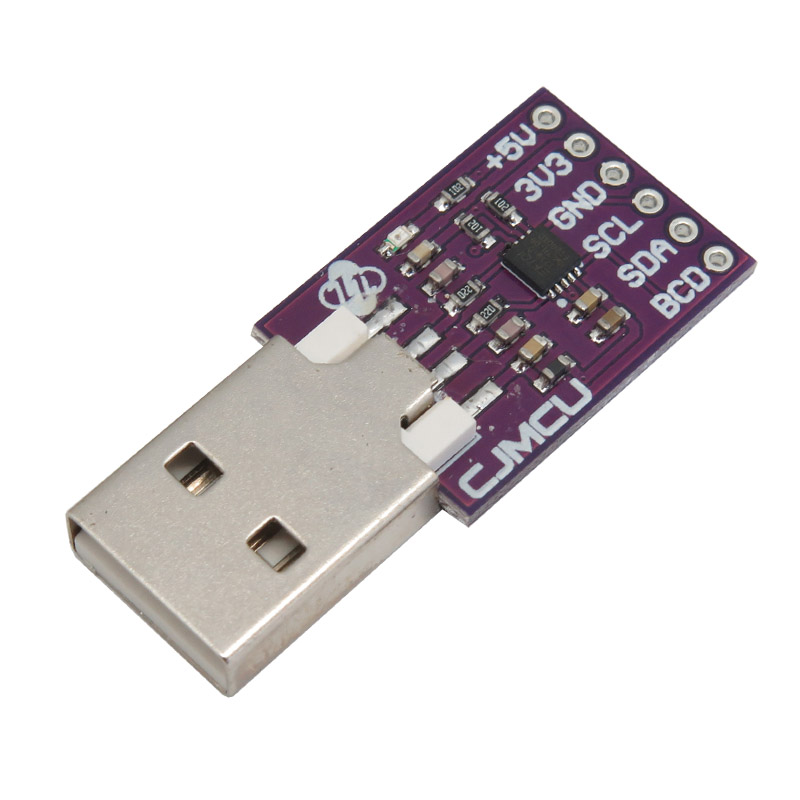

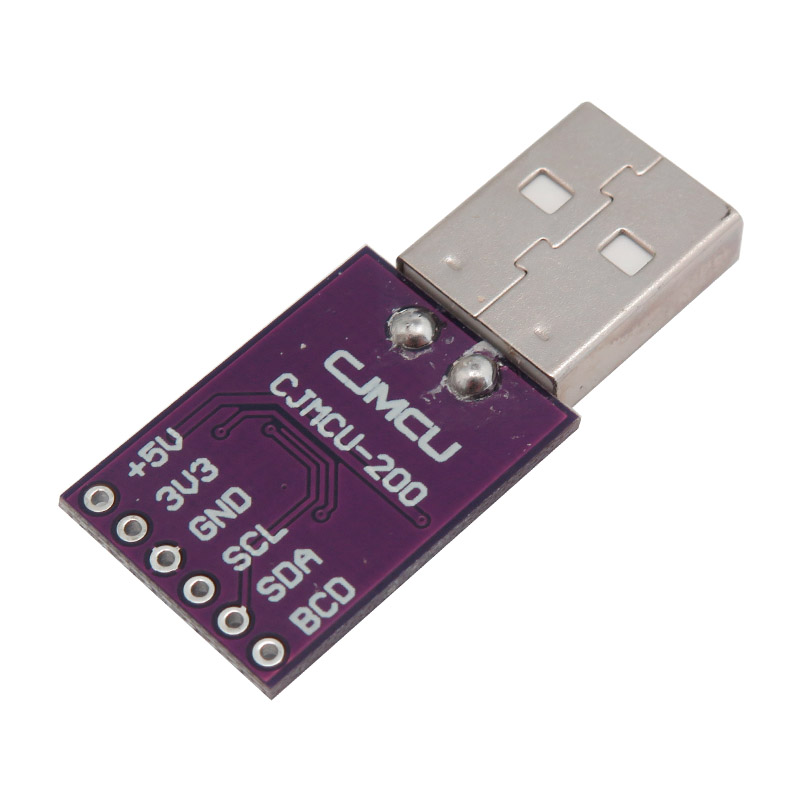

ماژول مبدل USB به I2C دارای چیپ FT200XD
کاربرد ماژول کانورتر USB به I2C چیپ FT200XD:
- انتقال داده سیستم های مخابراتی
- کنترل USB صنعتی
- کنترل USB دوربین دیجیتال
- تجهیزات USB
- اینترفیس های مبتنی بر MCU/PLD/FPGA
- تشخیص پورت شارژر یو اس بی
مشخصات ماژول کانورتر USB به I2C چیپ FT200XD:
- بدون نیاز به فریمور برنامه ریزی
- مجتمع شده با مموری 2048 بایتی برای ذخیرع سازی دستورات و پیکربندی
- بدون نیاز به اسیلاتوور خارجی
- بافر 512 بایتی دریافت و ارسال
- تشخیص شارژ باتری
- رگولاتورهای داخلی 3.3 و 3.8 ولت
- جریان عملیاتی 1.8 میلی آمپر
- جریان 125 میکرو آمپری استندبای
- توان مصرفی کم پهنای باند
- محدوده دمای عملیاتی : -40°C تا 85°C
مستندات:
دیتاشیت cjmcu ft200xd
Description:
This USB2.0 Full Speed IC offers a compact bridge to I2C devices. The device is an I2C slave, capable of operating up to 3.4MBit/s, with low power consumption (8mA). The FT200XD includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over an I2C interface.
Application:
Upgrading Legacy Peripherals to USB
Utilising USB to add system modularity
Incorporate USB interface to enable PC transfers for development system communication
Motherboard and system monitoring through USB
USB dongle implementations for Software/Hardware Encryption and Wireless Modules
Interfacing MCU/PLD/FPGA based designs to add USB connectivity
USB Instrumentation
USB Industrial Control
USB Digital Camera Interface
Capable of detecting dedicated USB charger ports for charging batteries with high current
Features:
Single chip USB to I2C interface
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte Multi-Time-Programmable (MTP) memory for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Configurable CBUS I/O pin.
Battery Charger detection. May be used by mobile devices to detect the presence of a charger on the USB port for higher current / faster charging of batteries.
Device supplied pre-programmed with unique USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40°C to 85°C.
