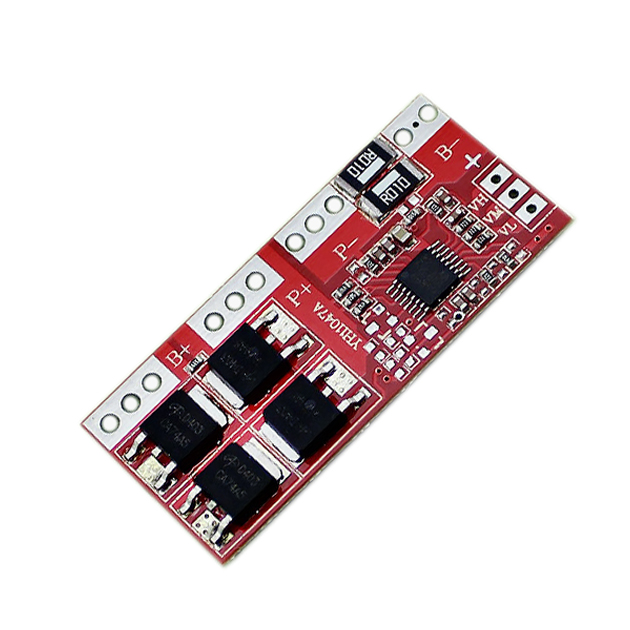

ماژول شارژر باتری های لیتیومی 30 آمپر دارای مدار محافظ
Feature:
Module Name: 4 string lithium battery protection board
The modular nature: polymer lithium battery protection board
Overcharge detection voltage: 4.25 ± 0.025V
Overcharge release voltage: 4.15 ± 0.05V
Over-discharge detection voltage: 2.50 ± 0.08V
Overdischarge release voltage: 3.00 ± 0.1V
Overcurrent Current: 20-30A
Working Current: 15A
Main features: over charge protection, over-discharge protection, short circuit protection, overcurrent protection.
Working temperature: -40 to + 85 degrees
Connection: welding output
Module size: 50mm * 22mm * 4mm
Applications:
The protection board can be used as the nominal voltage of 14.4V, 14.8V, 16.8V four strings of polymer lithium battery pack, four string 18650 lithium battery pack as overcharge, over discharge, short circuit protection. No need to activate the function in the instantaneous current for high power applications, inverter applications can avoid false trigger protection, the use of more convenient.
