موتور DC گیربکس دار 12 ولتی 210rpm

موتور DC گیربکس دار 12 ولتی 210rpm

وظیفه اصلی موتور DC تبدیل انرژی الکتریکی به انرژی مکانیکی است که این کار را به کمک نیروی مغناطیسی انجام می دهد.
موتورهای DC کاربردهای بسیار گسترده ای دارند و در ابعاد مختلف و با طیف گسترده ای از ولتاژ کاری تولید می شوند. در مواردی مثل رباتیک به موتور DC با ابعاد کوچک تری نیاز است. اگر در هنگام کار با موتور DC 12 ولت به قدرت یا گشتاور بیشتری نیاز باشد، با اضافه کردن گیربکس به موتور به آسانی این امر امکان پذیر است. در واقع گیربکس سرعت و گشتاور را به یکدیگر تبدیل میکند یعنی می تواند از گشتاور کم کند و به سرعت بیافزاید و یا برعکس از سرعت کم کند و به گشتاور بیفزاید. چرخ دنده های تعبیه شده در گیربکس وظیفه تنظیم نرخ کاهش سرعت و افزایش قدرت گیربکس را بر عهده دارند. این موتور دارای سرعت210 دور در هر دقیقه است.

Description:
A gear motor is an all-in-one combination of a motor and gearbox. The addition of a gear head to a motor reduces the speed
while increasing the torque output. The most important parameters in regards to gear motors are speed (rpm), torque (lb-in), and efficiency (%).
This Micro DC Gear Motor with Shaft is ideal for DIY enthusiasts a. A gear motor is an all-in-one combination of a motor and gearbox. The addition of a gear head to a motor reduces
the speed while increasing the torque output. The most important parameters in regards to gear motors are speed (rpm), torque (lb-in) and efficiency (%). Gear motors uses either AC (Alternating Current) or DC (Direct Current) power.
They can be found in many different applications, and are probably used in many devices in your home.
They are inexpensive, small, easy to install, and ideally suited for use in a mobile robot car.

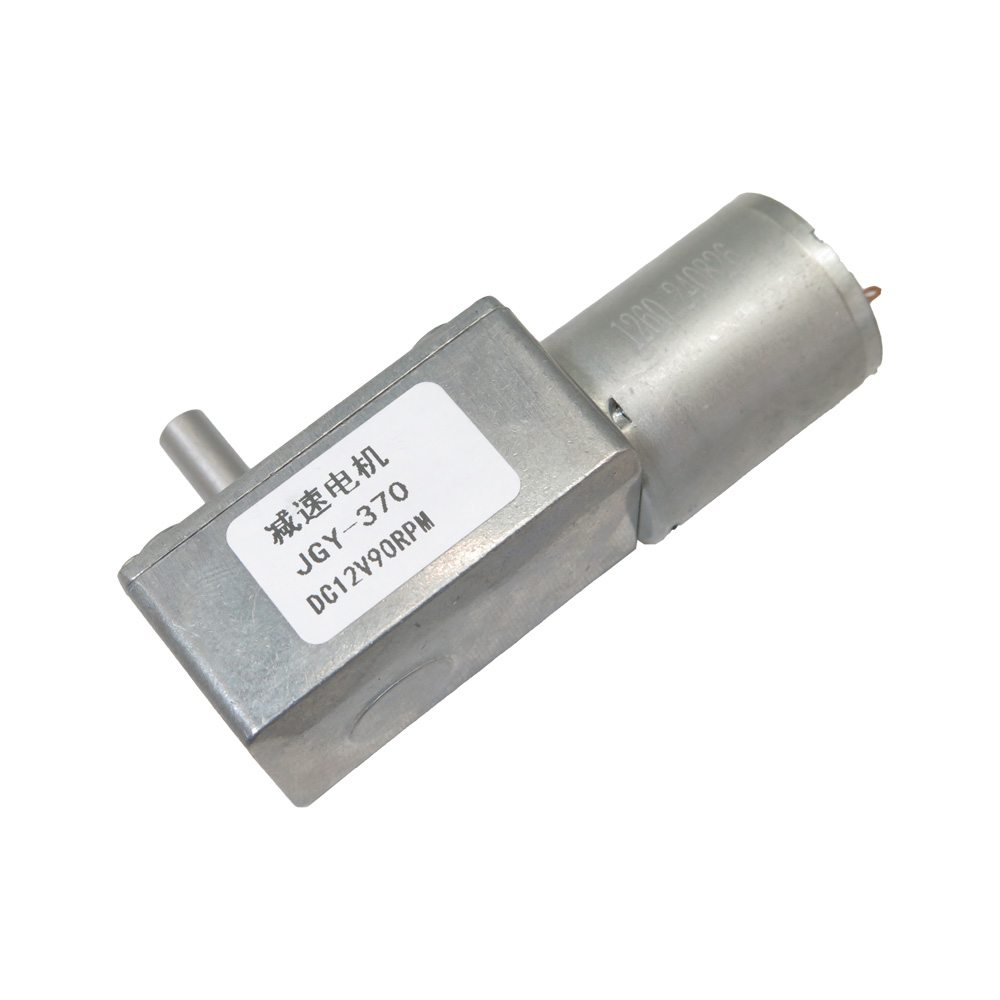

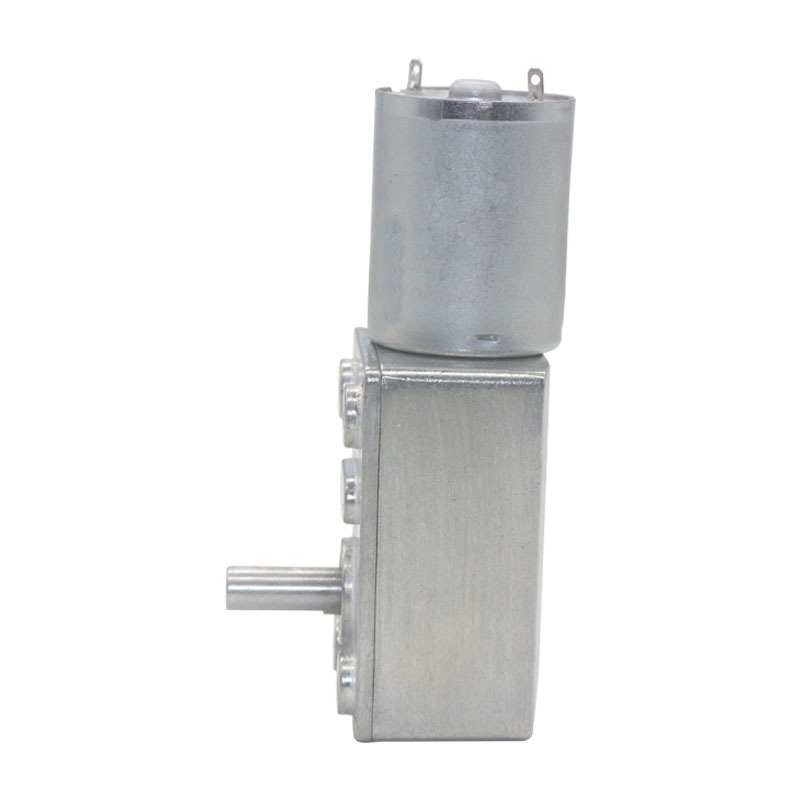

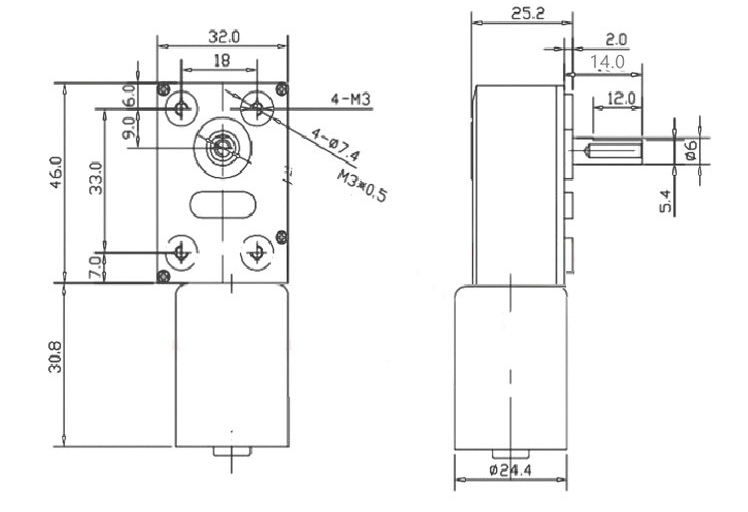

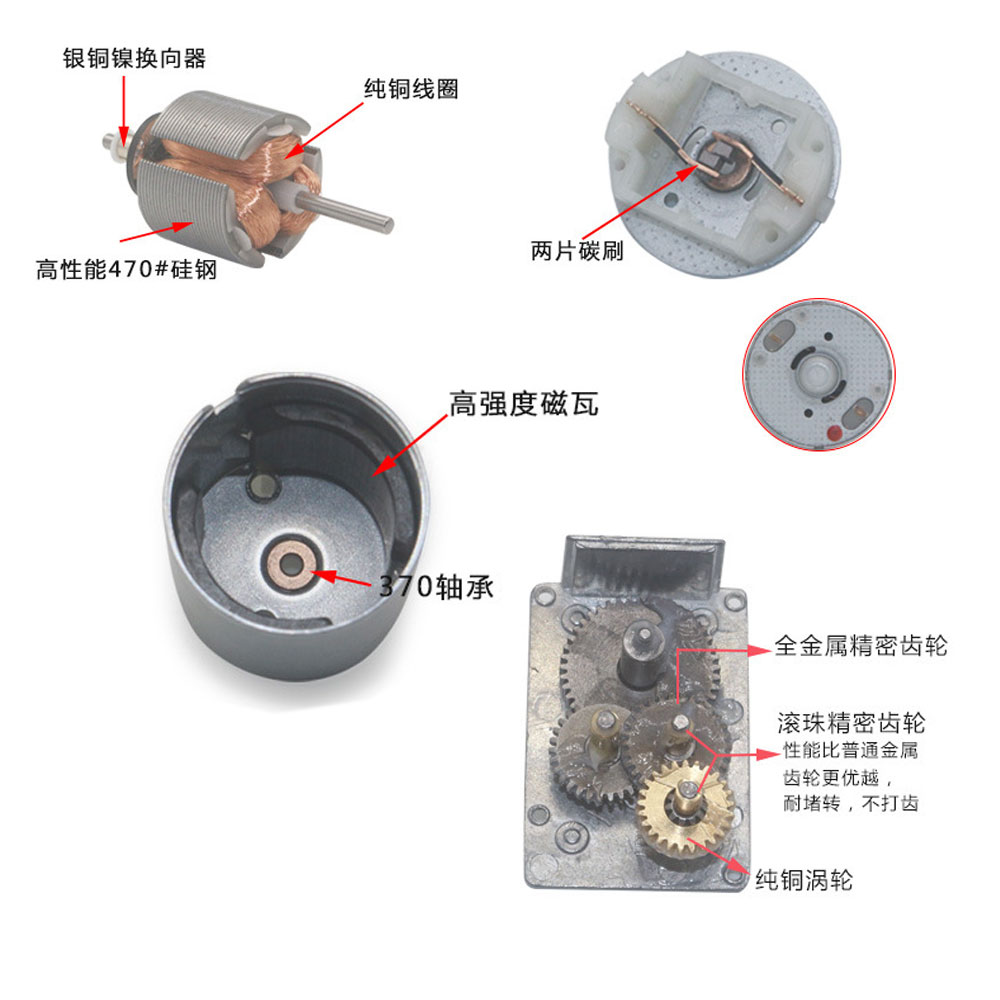

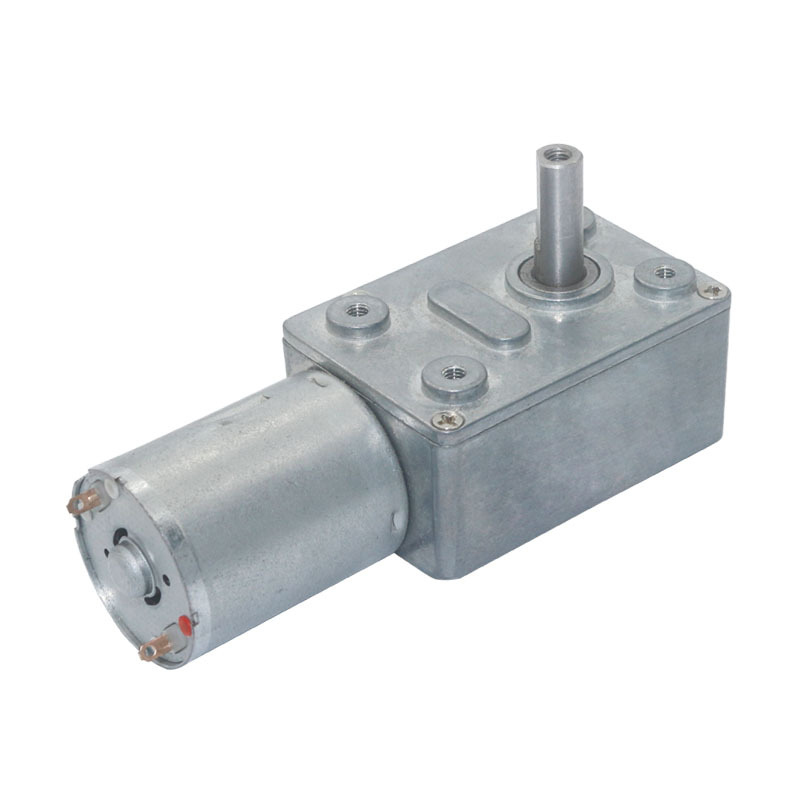

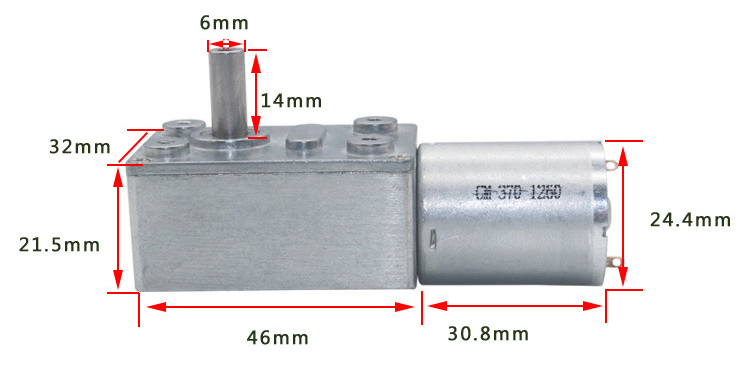

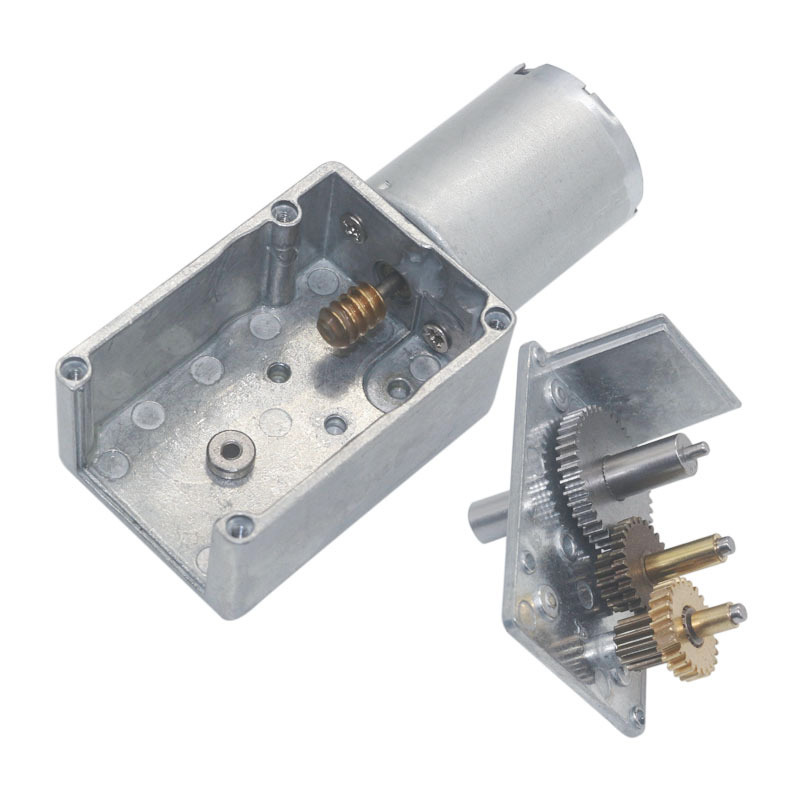

The turbine worm reducer deceleration, all metal gears, and with the speed governor control (controllable range 0- selected load speed), reversible motor (motor exchange connection terminal polarity reversing switch Or with the shop speed with positive and negative speed governor, forward and reverse switch). JGY370 turbine worm motor with self-locking function, the maximum bearing capacity of about 30KG. Please refer to the following parameters of the parameters of the table, if you need more parameters such as size, please contact customer service.

Instruction:
1. When you use the motor, there must be no binding things, such as adhesives do not flow into the bearings
through the rotating shaft, which hinders the operation of the motor.
2. The rotation of the shaft may have the opposite effect on the life of the motor. In order to prolong the life, please check whether your load is in accordance with the regulations, and it should not be overloaded, or there is something on the shaft end that hinders rotation.
3. When installing the motor, if the screw is too long, it will cause contact between the motor and the rotor, which will affect the output.
4. Please do not store in the surrounding high temperature or extreme humidity, nor in corrosive gas, it will reduce the motor's effect.
5. Do not run the motor in the surrounding high temperature and humidity.
6. When soldering is required on the motor terminals of the positive and negative poles, the temperature of the soldering iron is 340 ℃ ± 40 ℃ and the heating time is within 3 seconds. The plastic must not be deformed. During work, let the solder point flow into the motor or break the end of the wire. It may cause A decline in motor function.
7. Do not allow the motor shaft to get stuck. The motor will overheat in a short time and burn its accessories.
8. When installing pulleys or gears, do not increase the weight abnormally when
pressing in.
9. Supply specified power and be sure to be within the range of measurable requirements.

Features:
3V no-load speed per minute:
22rpm / min- 12rpm / min- 7rpm / min- 3rpm / min- 2rpm / min- 1rpm / min

6V no-load speed per minute:
45rpm / min- 25rpm / min- 15rpm / min- 7rpm / min -5rpm / min- 1.5rpm / min

12V no-load speed per minute:
90rpm / min- 50rpm / min- 30rpm / min- 15rpm / min- 10rpm / min- 3rpm / min-
2RPM 1RPM 0.5RPM

The main purpose:
Robot, playing nest machine, DIY, electronic locks, hood, entertainment equipment, intelligent equipment, barbecue machine and so on.
