4 از 5.0 با 7 رای
توجه:
1. این لیزر به تخلیه الکترواستاتیکی بسیار حساس می باشد، لذا حتما از ابزارهای محافظتی ESD استفاده کنید.
2. هنگام راه اندازی از عینک محافظ پرتوی لیزر استفاده کنید.
Description:
Powerful

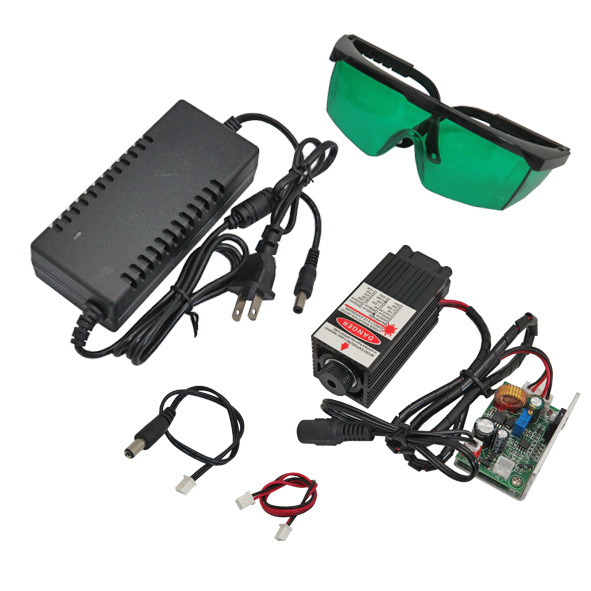

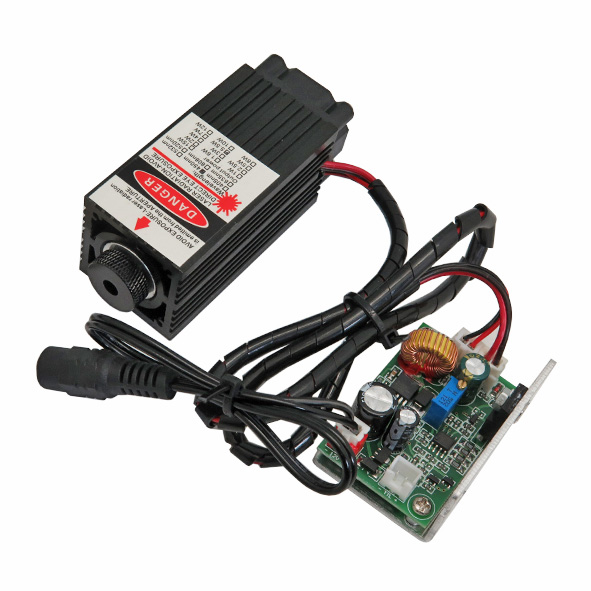

5500mW Adjustable Focus Laser Set [5.5W] [450nm] is a 5500mW powerful
laser set, which is based on a 5.5W laser diode with the blue beam at
450nm wavelength in an aluminum housing associated with a special
optical coated glass lens, an electrical cooling fan, and a circuit

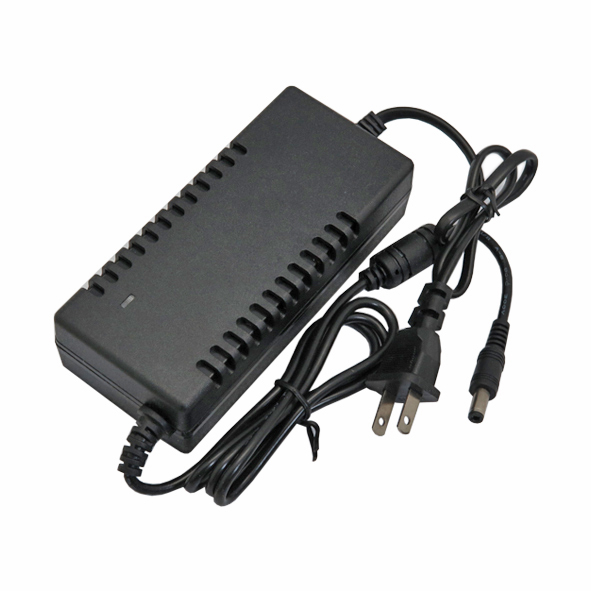

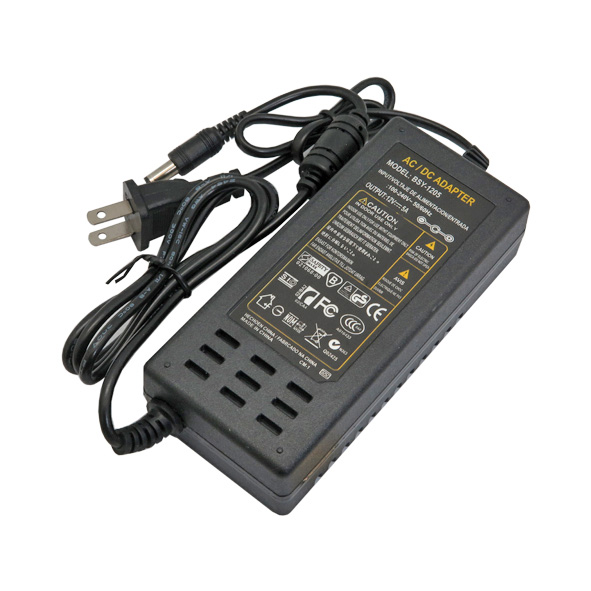

driving and controlling. This laser set can be supplied with 12V, 3A DC.
A
laser diode, (LD), an injection laser diode (ILD), or diode laser is an
especial semiconductor P-N junction, to emit coherent light with a
narrow spectrum. Two big challenges of laser diodes projects are proper
heat control (heat dissipation) and proper powering supply (diode
driving). Therefore laser diode should be attached to the heat
conductive case (copper, aluminum, and so on) to export diode
heat-producing into this body. Also, an optical lens is placed on the
body to focus the laser beam. The laser diode can't be supplied with a
simple voltage regulator. They need a precision current source for
supplying, and a TTL /PWM support circuit to control output for some
functions such as engraving, too.
High-power laser diodes are used in
industrial works such as heat treating, cladding, seam welding, and for
pumping other lasers, such as diode-pumped solid-state lasers. This
laser machine has an external ACC constant current drive with a TTL/PWM
support adjustable power, to make DIY laser application and can be used
in CNC cutting wood, thin paper, light wood, sponge paper, felt, fabric,
label and plastic, and engraving on wood, bamboo/plastic, paper,
leather, rubber, except transparent and white surfaces. It can't engrave
on metal, glass, stone, ceramic, jewelry, silver, reflective materials,
translucent materials.
Notes:
1. The laser diode is highly ESD sensitive (Don't touch it without ESD protection tools).
2.
Because of high power laser, while working, it can be harmful,
especially for eyes, thus using eyeglass is necessary, otherwise
consequences at your own risk.
3. Do not use in combustible environment to avoid fire and explosion.
4. Prevent children against exposure to this laser product.
Features:
Power: 5500 mW
Spot mode: Dot
Operating voltage: 12V
Laser wavelength: 450nm
Working current: 3A
Focus mode: Adjustment Focus
Color: Blue
Material: Aluminum
Operating temperature: 10°C ~ 40°C
Lens material: special optical coated glass
Cooling: Forced ventilation
Housing material: Aluminum (anodized surface)
