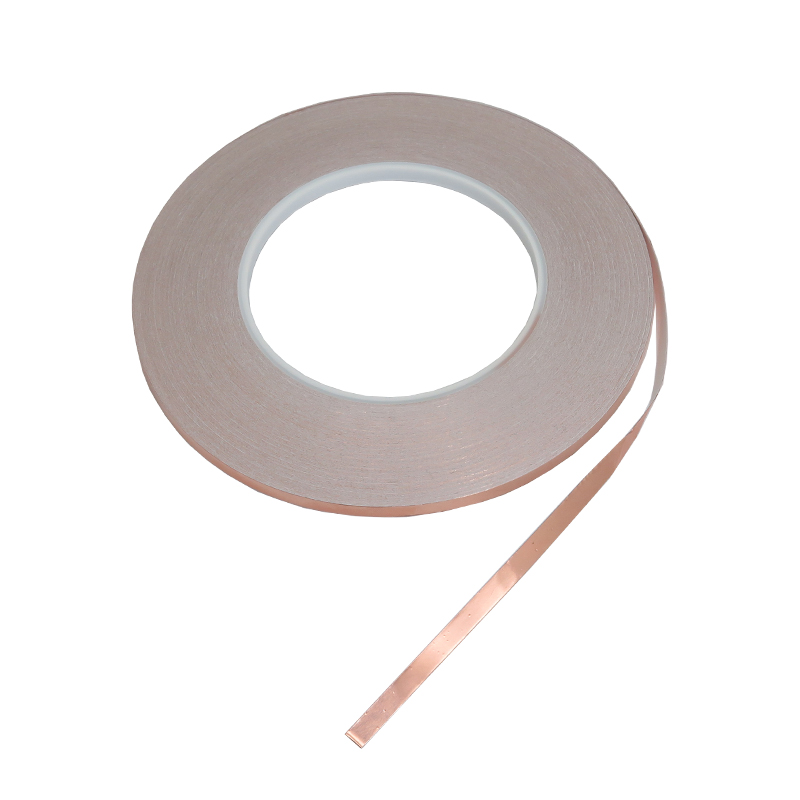

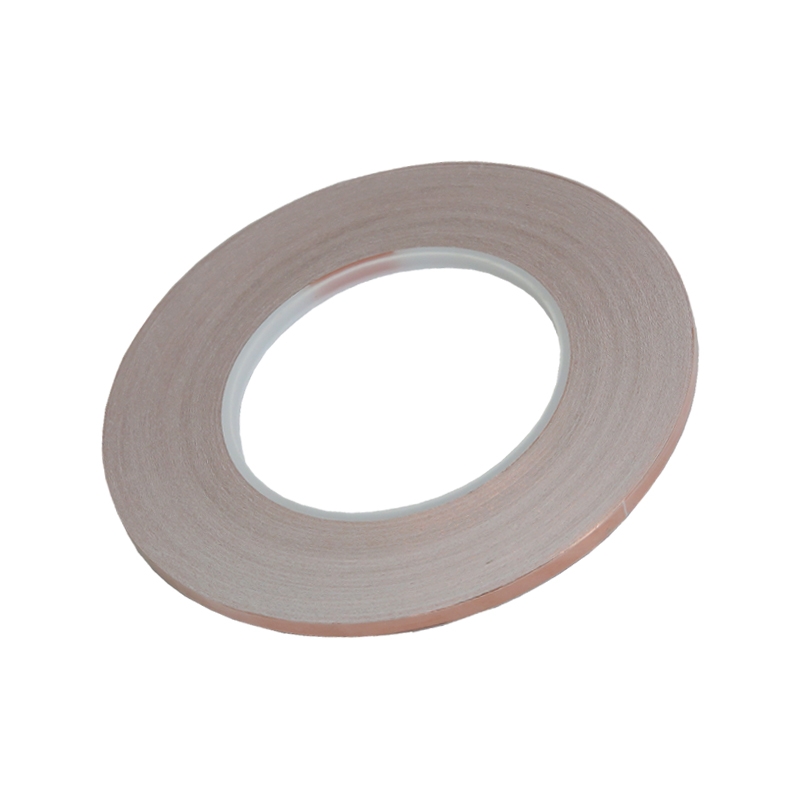

نوار چسب رسانا عرض 5mm ساخته شده از مس - مقاوم در برابر حرارت

CSCU-5mm

3187-194-5108

105,700 تومان
در حال حاضر موجود نمی باشد

موجودی در حال ارسال به انبار


خرید کالا


علاقه مندان : 17 نفر
وضعیت : فعال

تعداد مرجوعی : 0
دنبال کنندگان : 18 نفر

قدمت : 6 سال و 8 ماه و 9 روز
وزن : 70 گرم

کل فروش : 1145 عدد
تعداد سفارش ها : 421 سفارش

4 از 5.0 با 5 رای

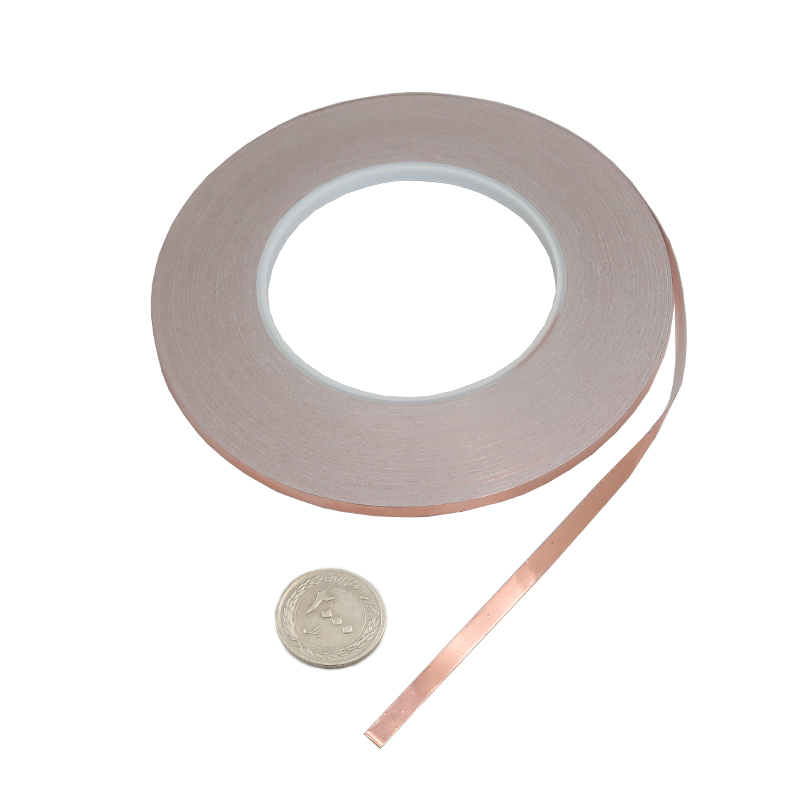

نوار چسب رسانا عرض 5mm ساخته شده از مس - مقاوم در برابر حرارت

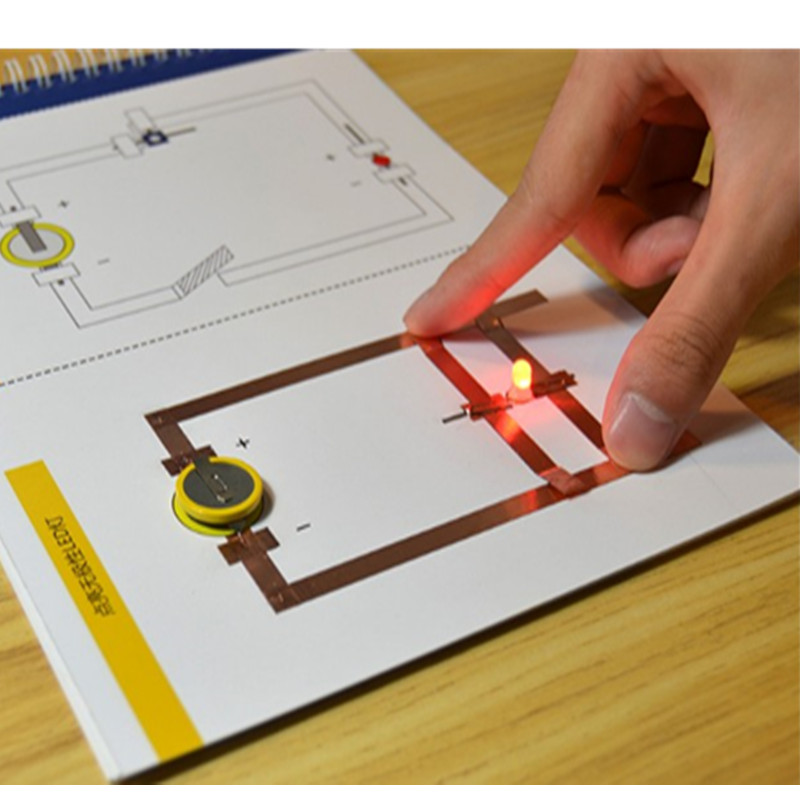

نوارهای مس رسانا با خلوص 99.98٪ برای ایجاد اتصالات الکتریکی بین قسمت های مختلف قرار می گیرد. عرض این نوار چسب 5 میلی متر، ضخامت آن 0.065 میلی متر و طول آن 50 متر می باشد و دارای یک طرف چسب اکریلیک است که توسط کاغذ سیلکونی پوشانده شده و ظرافت این چسب سبب شکل گیری سریع می شود.
میزان تحمل این چسب دمای 10- تا +120 درجه و قدرت چسبندگی آن 1.3 کیلوگرم بر 25 میلی متر می باشد.
از چسب های نواری مسی در مصارف مختلف برای حذف تداخل الکترومغناطیسی و جداسازی امواج الکترومغناطیسی برای جلوگیری از آسیب رسیدن به بدن انسان و دیگر قطعات جانبی استفاده می گیرد. از این نوار مسی می توان برای مانیتورها و ساخت مبدل ها بهره گرفت.


Description:
Copper tape refers to a thin strip of copper, often backed with the adhesive. It is also used for other applications, such as electromagnetic shielding or low-profile surface mount transmission line in electronics. It comes in two forms; conductive adhesive and non-conductive adhesive (which is more common).
Electrically conductive adhesives typically suspend silver, graphite, or copper in the adhesive, and can be responsible for 80% of the adhesive's mass.
Acrylic-based adhesives reach their maximum adhesion almost immediately upon application, have adequate resistance, require no preparation, and have good shear and peel strength.
They may or may not be conductive, and their adhesive may also be conductive. Copper foil tape is chemically resistant and may or may not have a liner.
The most important standard in consideration of HVAC tapes is UL 181 A-P and UL 181 B-FX, covering the enclosure of fiberglass duct systems and flexible air ducts respectively. ASTM 2342 - 10 provides a test for assessing the durability of ductwork sealants. ASTM D4935 - 10 provides a standardized test for measuring the EMI shielding effectiveness of planar materials. FSK tapes are explicitly controlled by ASTM C1136 - 10, a standard of flexible, low permeance vapor retarders for thermal insulation.
For tapes, there are some important specifications and features relate to the strength and resistance to consider: Tensile strength, Peel strength, Temperature resistance, Abrasion resistance, Weather resistant, and reflectivity.

Features :
Material: CU 99.98%
Substrate Thickness: 0.018mm -0.05mm
Adhesive Thickness: 0.035mm
Colloid Composition: Conductive Adhesive (Heat-sensitive Acrylic Adhesive)
Adhesion: 1.5 ~ 1.3kg / 25mm

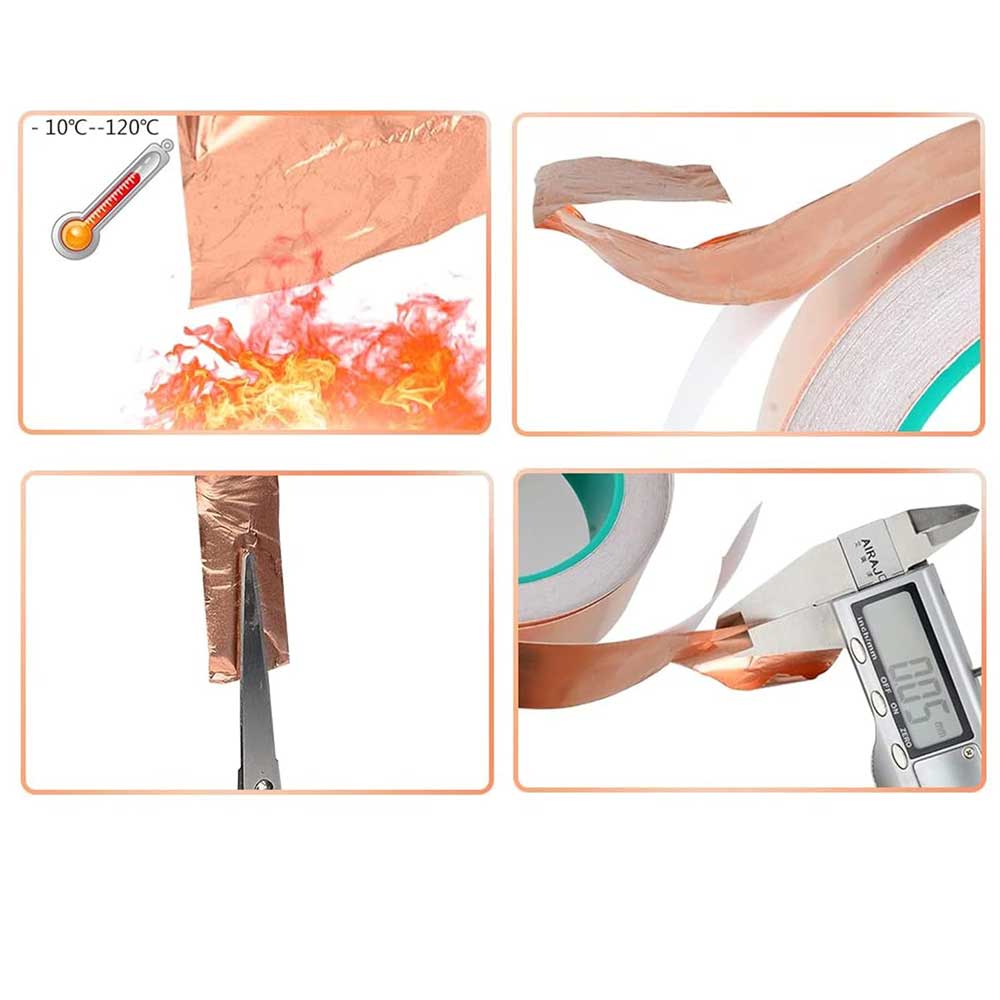

Temperature Resistance -10 ℃ 120 ℃
Velocity 4.5 ~ 4.8kg / mm
Elongation Rate 7-7% ~ 3-4%
Size: 5mm*50m*0.065mm

Note:
1. Test conditions for the room temperature 25 ℃, relative humidity below 65 ℃ using the United States ASTM-D1000 detected.

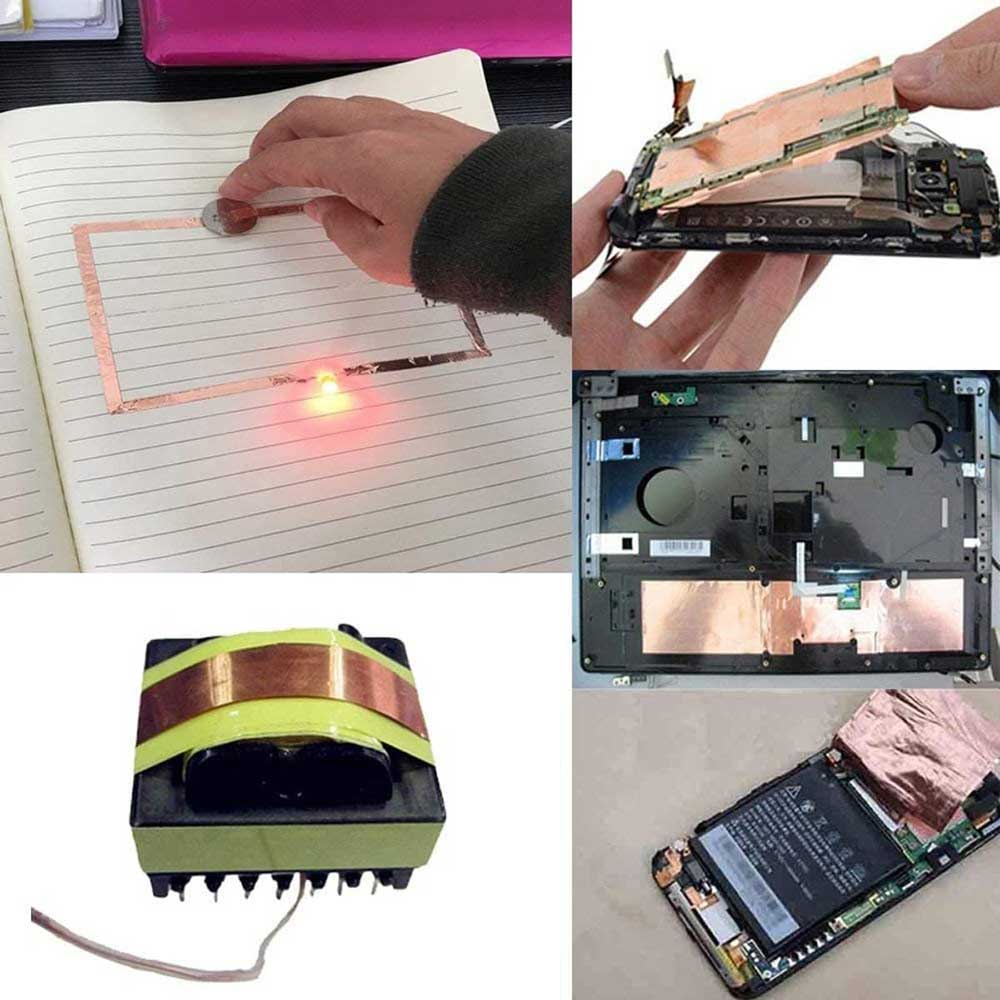

2. The product is mainly used to eliminate electromagnetic interference EMI, isolation of electromagnetic waves on the human body hazards, mainly used in computer peripheral wire, computer monitors and transformer manufacturers.

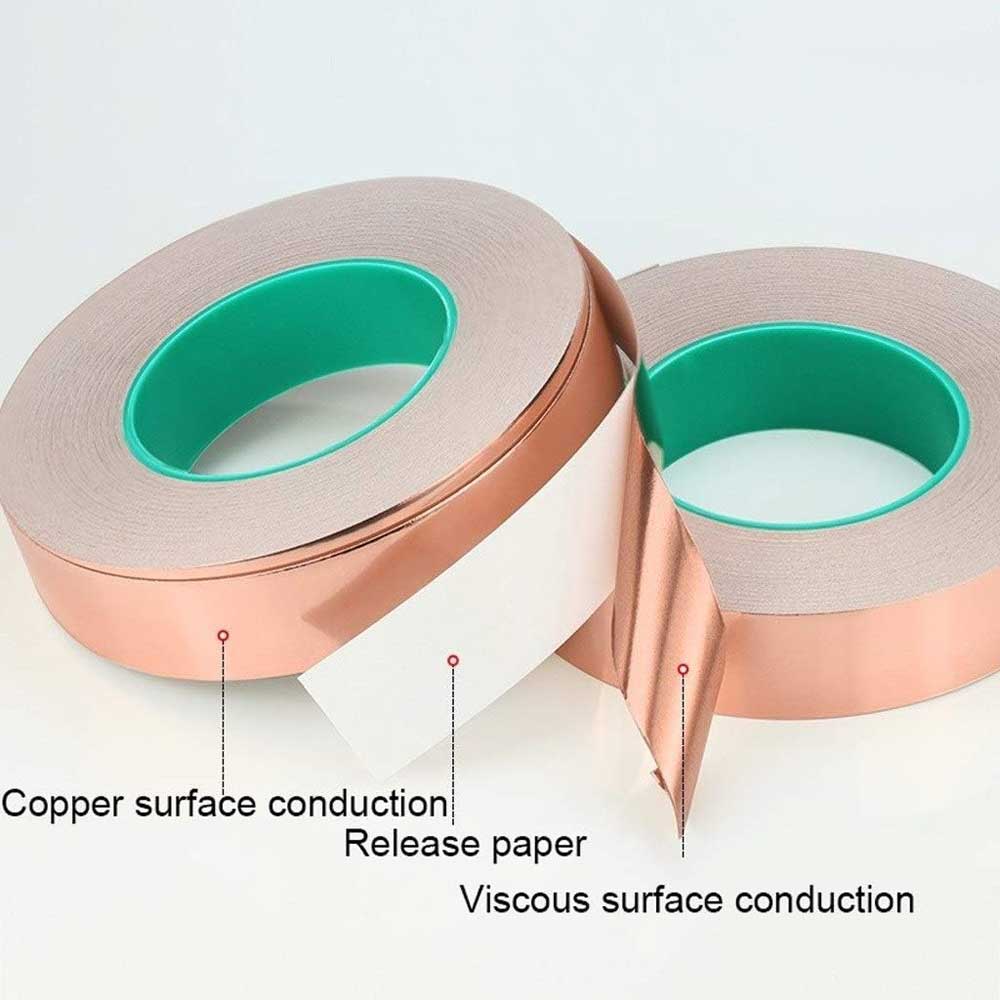

3. It is divided into double-sided conductive and single-sided conductive.

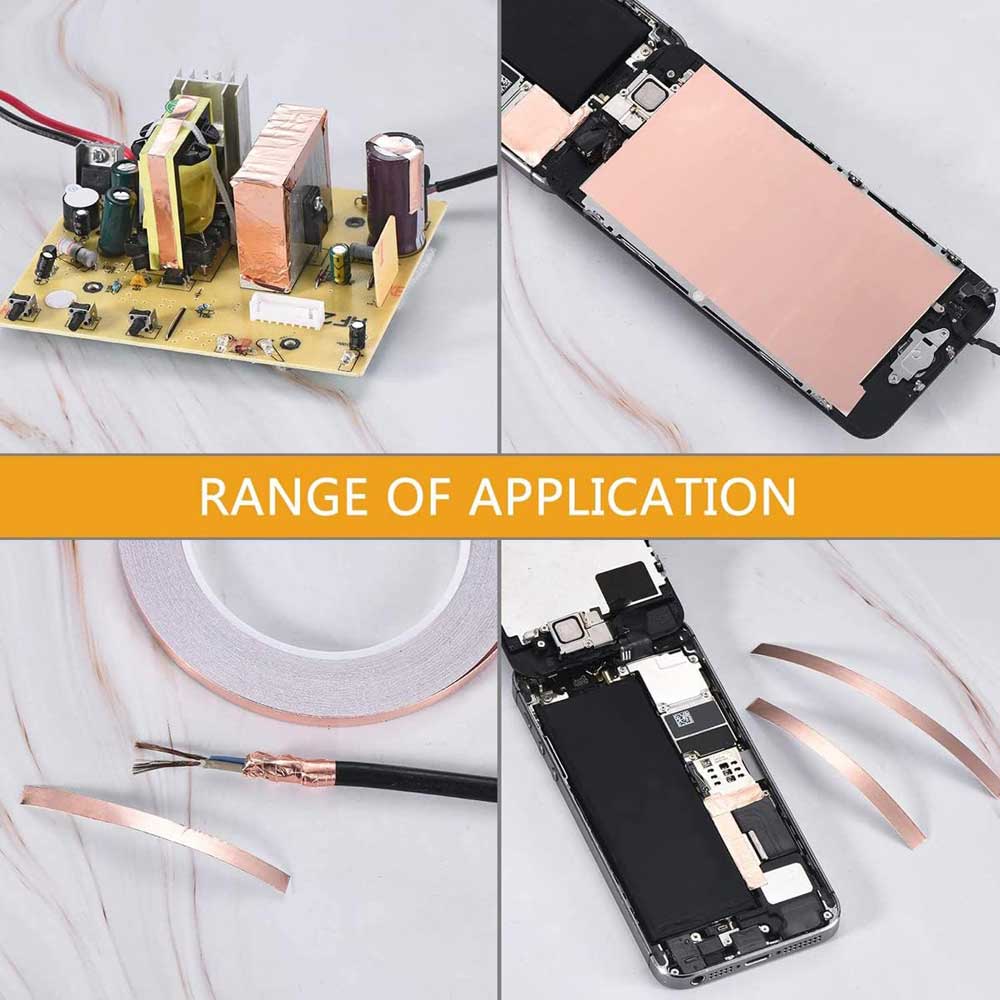

Application:

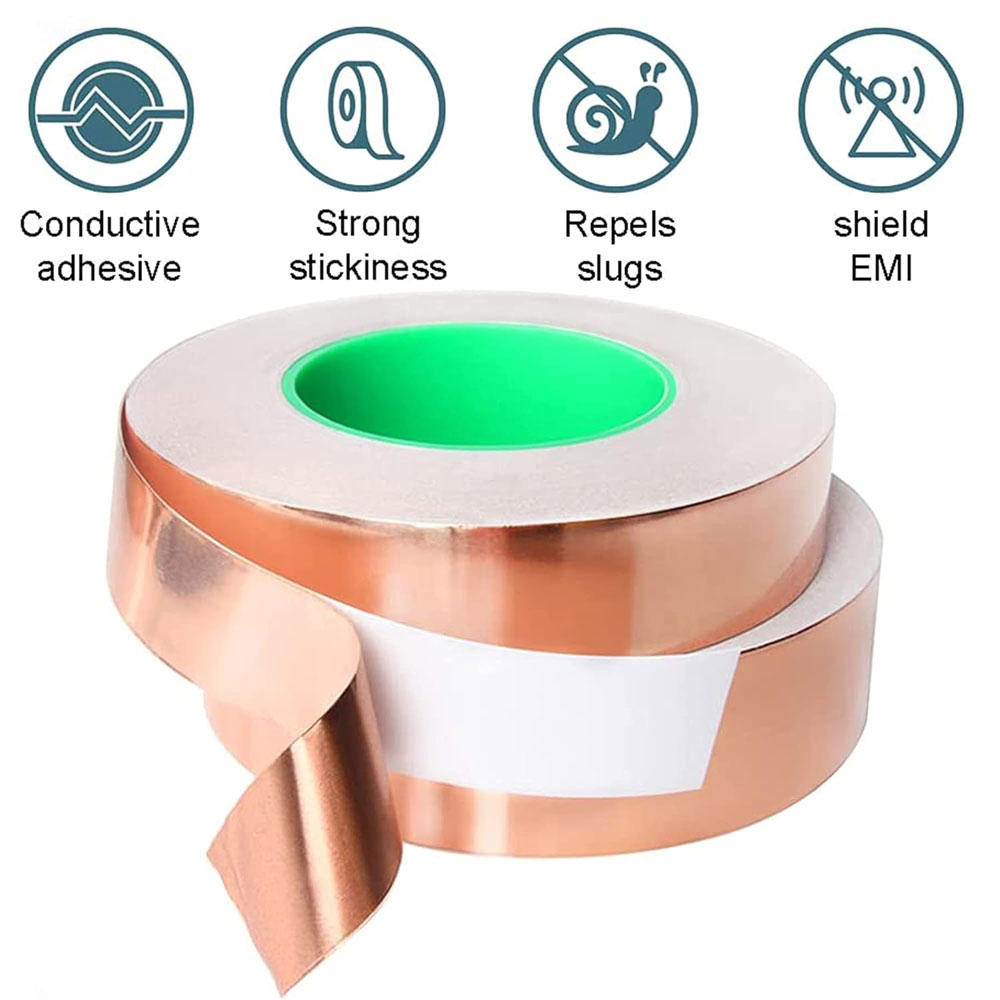

This product is used for electromagnetic interference has a better shielding effect, for the ground electrostatic discharge has a good performance, while the product is still used for soldering purposes.
