ماژول منبع تغذیه بردبوردی AMS1117 دارای ورودی جک آداپتوری / USB

POWER-MBV2

334-135-1297

36,610 تومان
کالا موجود است
موجودی انبار : 18 عدد


خرید کالا


علاقه مندان : 12 نفر
وضعیت : فعال

تعداد مرجوعی : 0
دنبال کنندگان : 13 نفر

قدمت : 10 سال و 3 ماه و 23 روز
وزن : 13 گرم

کل فروش : 2090 عدد
تعداد سفارش ها : 1066 سفارش

4 از 5.0 با 13 رای
ماژول منبع تغذیه بردبوردی AMS1117 دارای ورودی جک آداپتوری / USB

این ماژول بردی کوچک برای تغذیه پروژه هایی است که برروی برد بورد راه اندازی می شود. این برد قادر است ولتاژ 5 ولت و 3.3 ولت رگوله شده را در دسترس کاربر قرار دهد. اکثر سیستم‌های الکترونیکی تحمل تغییرات ولتاژ بیش از یک درصد را نداشته و برای حذف تغییرات اضافی از مدارهای تنظیم کننده ولتاژ استفاده می‌نمایند. رگولاتور موجود بر روی این بورد AMS1117 می باشد. برخی از ماژول‌ها و سنسورها به ولتاژ 3.3 ولت نیاز دارند و در برخی پروژه‌ها یا این ولتاژ را کلا نداریم و یا این که پایه‌های ولتاژ 3.3 ولت برای مصرف دیگری استفاده شده است و در چنین شرایطی رگلاتور AMS1117 بسیار کاربرد دارد. با ابعاد بسیار کوچک توانایی تبدیل به ولتاژ 3.3 ولت را دارد. ولتاژ خروجی از طریق پورت USB روی ماژول هم در اختیار خواهد بود. همچنین با ال ای دی روی برد وضعیت ماژول اطلاع رسانی می‌شود.

Description:

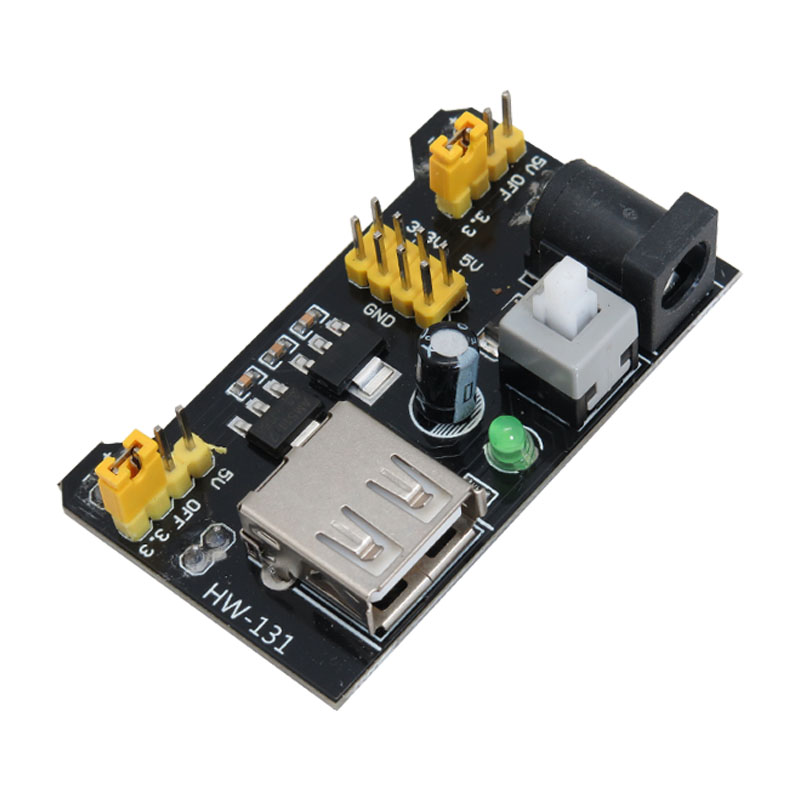

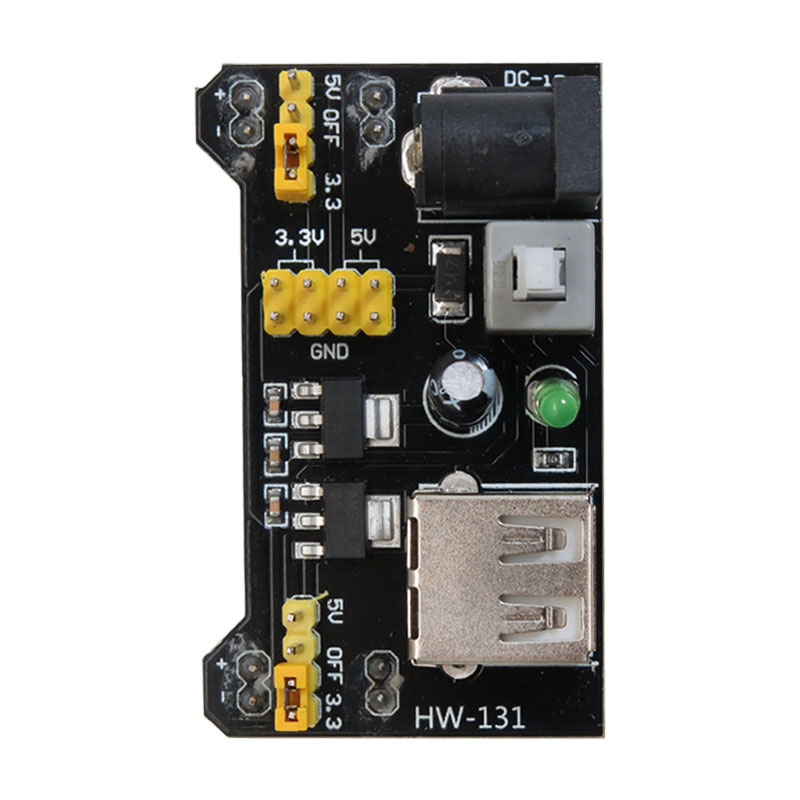

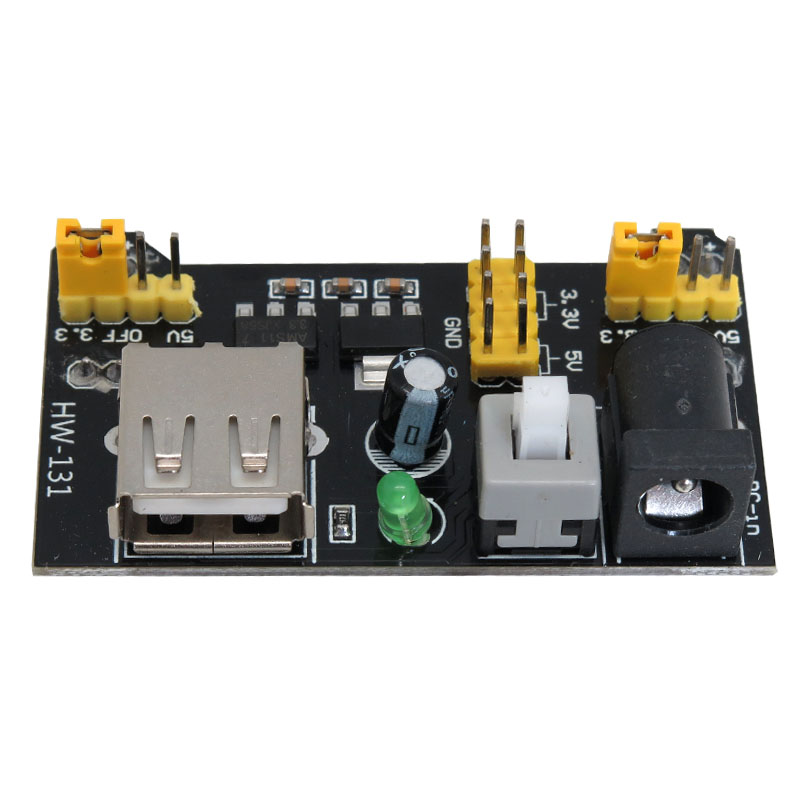

The is a breadboard power supply module that provides dual 5 V and 3.3 V power rails and has a multi-purpose female USB socket.
The board has two modes of power input, through the USB socket and through a DC barrel socket. There is a green LED to indicate the presence of power, and a latching switch to control the power to the board.
On this particular model and version, the center pin of the barrel socket is positive; however, please double-check with the manufacturer’s instructions, in case they have made any changes. You have to push the switch IN to be able to use power from the barrel socket input.
The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed a maximum of 1.3V, decreasing at lower load currents.
On-chip trimming adjusts the reference voltage to 1.5%. The current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry.
The AMS1117 devices are pin-compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.

Features:
Breadboard power supply module, compatible with 5 V, 3.3 V
Apply to MB102 breadboard
Input Voltage: 6.5-12 V (DC) or USB power supply
Output Voltage: 3.3V/5V can switch over
Maximum Output Current: <700 mA
Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
Size: 5.3 x 3.2 x 2.5cm
