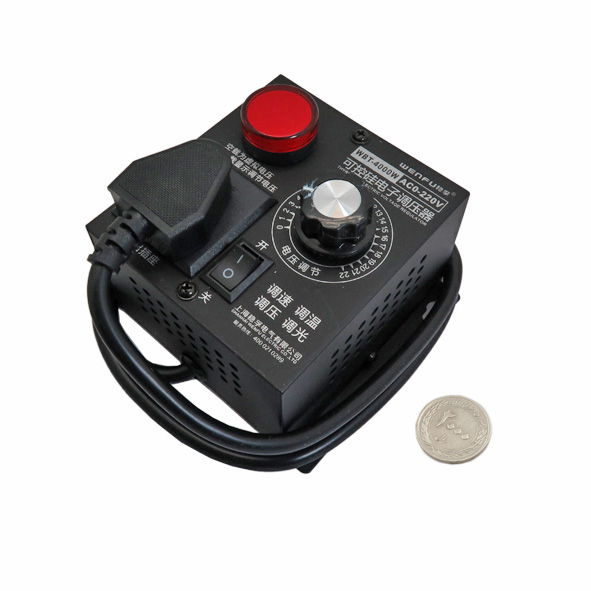

رگولاتور / دیمر AC به AC کاهنده 4 کیلو وات SCR

Product Description:
Novel design,speed regulation, temperature regulation, voltage regulation, dimming function, independent switch control, voltage display, easy to use, safe and assured.
Power Transfer,easy to solve the voltage problems.
Large power controlable digital regulator:GT-4000W:power:4000W;input:AC220V;output:0-220V;Gear:100 gears;Button adjustment
Controlable digital regulator:Mode:WBT-4000W:power:4000W;input:AC220V;output:0-220V;Gear:multi-gear,stepless adjustable;Switch control,voltage display
Power intelligent voltage transformer application
One button to complete:speed adjustion,temperature adjustion,voltage adjustion,light adjustion.
Widely application:household electrical appliances,industrial appliances,scientific experiment factories,schools,such as electrical equipment.
Attention:You must connect to the load before adjusting voltage (display the correct voltage).
The regulator can control the motor rotation speed maintains 0%-100% with stepless changes.
Precise accurate voltage regulation
Input controls switch,cut off input power freely.
Safe flame retardant,the metal shell resitance pressure,in high temperature non-deformation,none-combustion
Inports of silicon controlled rectifier.The product use ST Microelectronics Controlled silicon BTA41-600B/800B
bidirectional large power controlled silicon,dual side copper platinum welding.The current reaches 40A
Flame retardant insulation shell ,new national standard socket,independent switch control,3C national standard power cord,hook design,special silicon contrplled meter

Product Specification:
Product Size:10cmX9cmX6cm (LxWxH)
Install Size:10.4cmX7.5cmX4cm
Mode:WBT-4000W (Hardcover)
Input voltage:AC 220V
Output voltage:0~220V adjudtable (If the output voltage is too low,there will not display.)
Ultimate power:4000W (adapt to 2000~3000W)
Voltage regulation range:0~220V stepless adjustable (with load) The voltage reduces to 0V;the boost begins in 20V.
Rated current:18A
Product Features:Zero lag, zero delay,peak,voltage absorbtion circuit,effective protection,large power,Thyristor Anti surge, anti spike,RC absoration multi-protection
Controlled silicon mode:ST Microelectionics; Controlled silicon BTA41-600B/800B
Operative norm:GB14536.1-2008
Gear:100 gears

Note:
If the tested output voltage and the input voltage are the same under no-load occasion,you need to connect more than 20W load.Then you can test the output voltage.
Input AC,the output is still AC,not DC.
The above 4000W refers:The ultimate power on the resistive load.Inductive load is 1/3 resistive load.Resistive load means electric lamp,heater,ect.Inductive load is series motor.Please do not use it on the electrical intelligent products. Metal shell appliances,please connect to the safety grounding.
