Description:

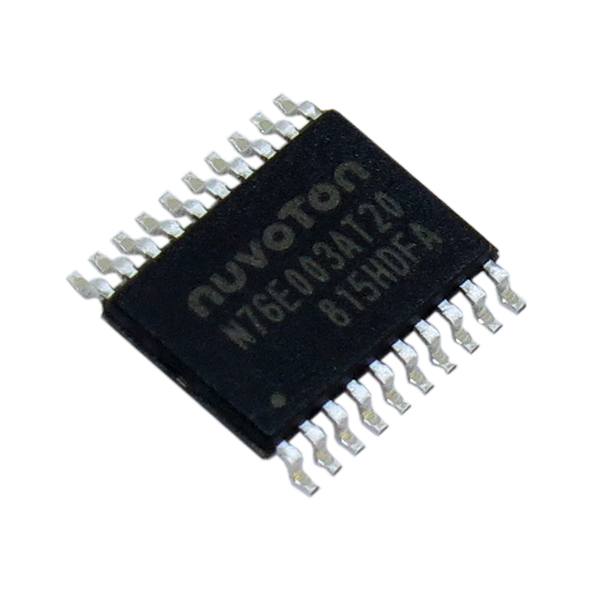

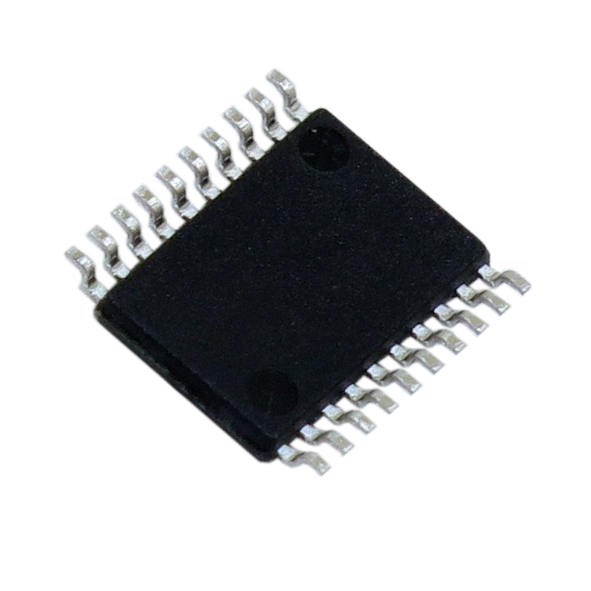

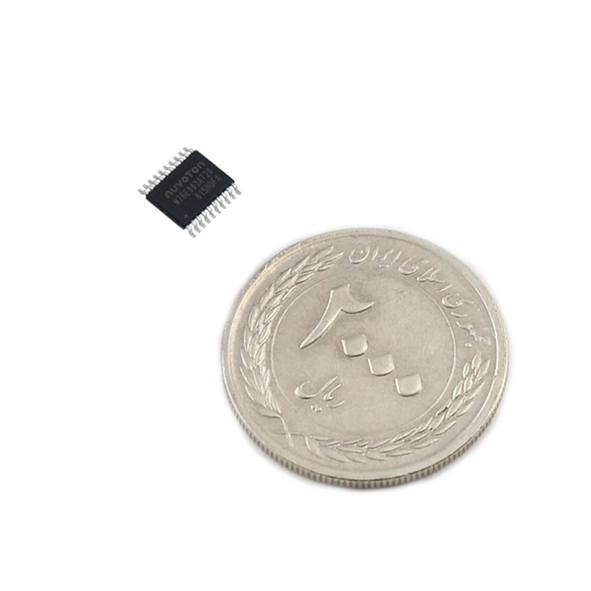

The N76E003AT20 is a high-speed controller featuring a strong oscillator running at 16 MHz, an I2C protocol, an SPI port, and a self-wakeup timer. For motor operations, the MCU additionally features an analog to digital converter, an 8-channel PWM, and a fault brake. This microcontroller module is used in consumer products and modest projects.
Applications:
Access Control System
Thermostat
Bluetooth Speaker
Electric Meter
Data Collector
Battery charger
Beauty Equipment
Small Home Appliance
Features:
Core:
1T 8051 processor
Max frequency up to16 MHz
Wide operating voltage: 2.4V to 5.5V
Temperature range: -40℃ to 105℃
Memory:
18 KB of Flash memory
1 KB of SRAM
Supports configurable Data Flash
Supports program update by ISP (In-System Programming)/ ICP (In-Circuit Programming)/ IAP (In-Application Programming)
PWM:
Up to 6-ch PWM
Programmable dead-zone generator
ADC:
12-bit 8-ch ADC
Runs up to 500 kSPS
Connectivity:
Two UARTs up to 115200 bps
One SPI up to 8 MHz
One I²C up to 400 kHz
Clock Control:
10 kHz Internal RC oscillator
