در ساخت سیستم صوتی خودرو یا اسپیکر حرفه ای خانگی نیاز به خروجی صدای استریو مستقل همراه با خروجی صدای ساب ووفر فیلتر شده توسط مدار فیلتر پایین گذر دارید که این ماژول تمامی این موارد را در اختیاردارد .ماژول آمپلی فایر استریو 80 وات برای برای افزایش توان ، جریان بکار می روند و همچنین وظیفه اصلی آنها بهبود صدای سیستم و تقویت کردن سیگنالهای ضعیف نیز می باشد .
از سمت ورودی این
ماژول ، اولین پتانسیومتر جهت تنظیم شدت صدا ( volum ) ، پتانسومتر دوم جهت فرکانس بالا ( treble ) ، پتانسیومتر سوم جهت فرکانس متوسط ( Alto ) ، پتانسومتر چهارم جهت فرکانس پایین ( bass ) می باشد .
Descriptions:
In building a car audio system or a professional home speaker, you need an independent stereo sound output along with a subwoofer sound output filtered by a low-pass filter circuit, and this module has all these things. 80 W stereo amplifier module to increase power currents are used and their main task is to improve the sound of the system and strengthen weak signals.

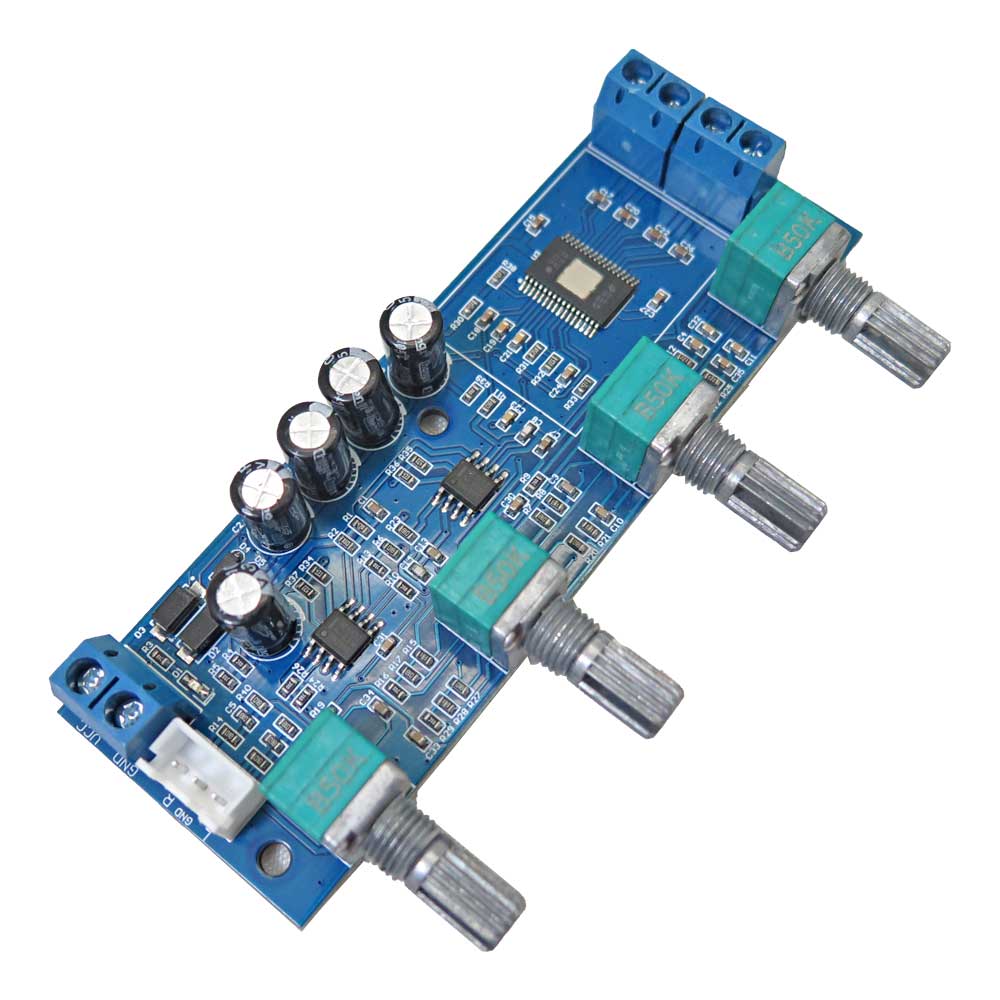

From the input side of this module, the first potentiometer is for adjusting the sound intensity (volume), the second potentiometer is for high frequency (treble), the third potentiometer is for medium frequency (Alto), the fourth potentiometer is for low frequency (bass).
Application:
Amplifiers are used in music equipment, electronic devices such as television and radio receivers, audio equipment and computers to increase the signal range.

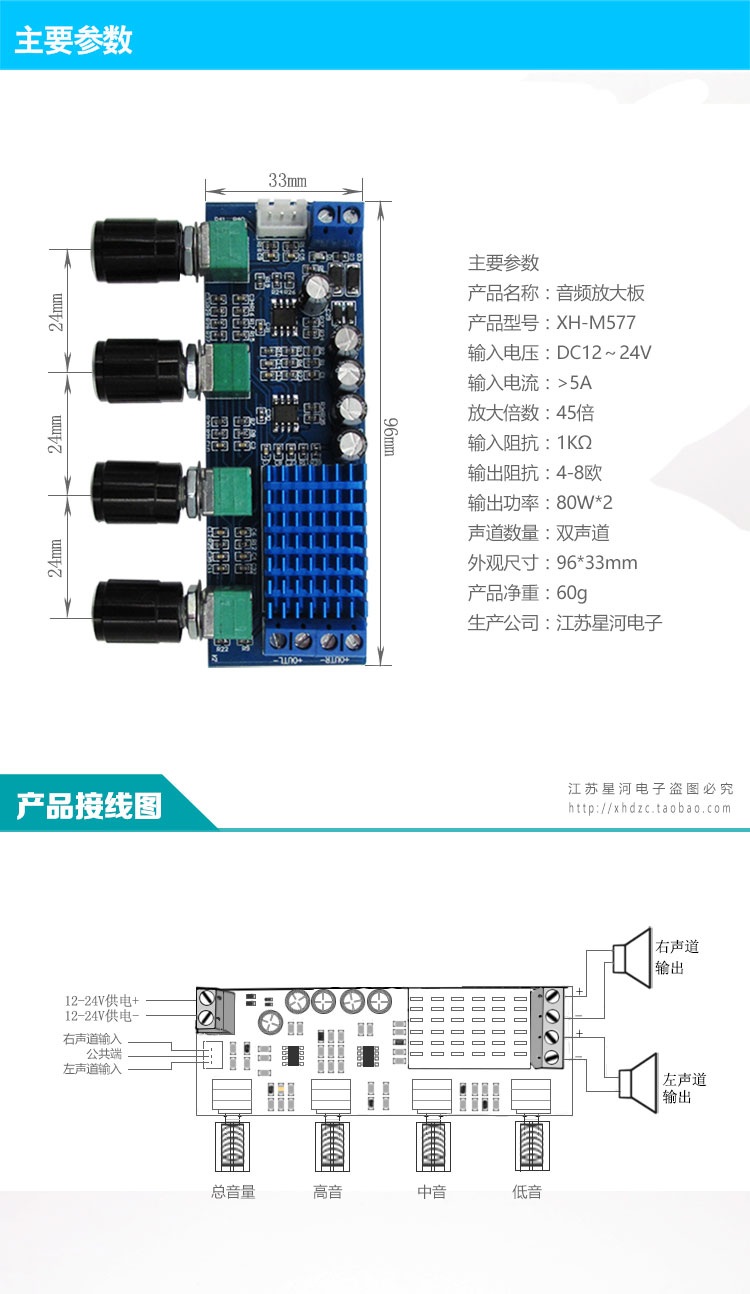

Specifications:
Product name: sound amplifier board
Input voltage: DC12 - 24V
Input current: 5A
Amplification factor: 45 times input
Impedance: 1KΩ
Input Impedance: 4-8 Ω
Output power: 80W*2
Number of channels: two channels
Appearance size: 96 * 33 mm
Product net weight: 60 grams
Distance between handles: 24 mm
