Description:
A brushless DC electric motor is synchronous motors powered by direct current (DC) electricity via an inverter or switching power supply which produces electricity in the form of alternating current (AC) to drive each phase of the motor via a closed-loop controller. brushless motors can be more powerful overall. Because the copper windings are on the outside of the motor configuration, there is room to make them larger. Brushless motors also don't have the friction and voltage drop that brushes create by dragging against the spinning commutator. This physical contact results in a continuous energy loss during the operating process.
The advantages of a brushless motor over brushed motors are high power-to-weight ratio, high speed, electronic control, and low maintenance. Brushless motors find applications in such places as computer peripherals (disk drives, printers), hand-held power tools, and vehicles ranging from model aircraft to automobiles. Modern washing machines use brushless DC motors which have replaced rubber belts and gearboxes with a much simpler and more reliable direct-drive design.

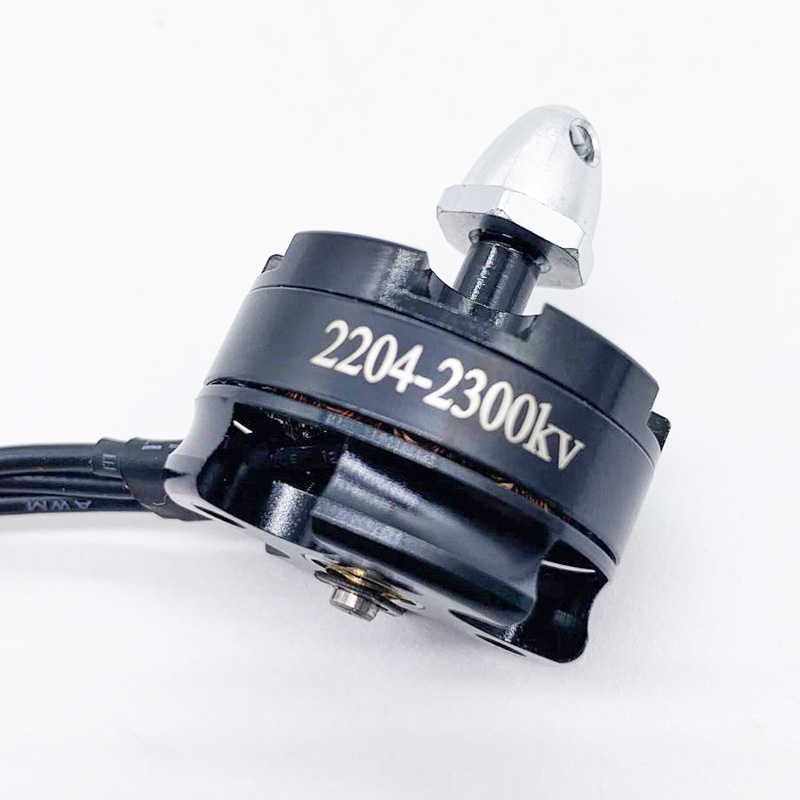

The EMAX MT2204 brushless motor for Quadcopters and Multicopters (CW) is specially made for Mini 250 size Drones for aggressive and speed flying. It's a very small but very powerful brushless motor, specially designed for a 5~6 inch propeller (Dual-Blade or Tri-Blade), very high and suitable for speed flying. This is an excellent choice for the 250 class Speed Racing drones with an FPV system on it. It has 14 poles 12 slots, a hi-torque motor design which CNC machined 6061 T6 Billet aluminum heatsink. It's a high purity copper windings that maximize efficiency. The high RPM ABEC5 oversized bearings and precision balanced rotor makes this brushless motor very smooth and reliable, even at the maximum RPM.
Application:
Transport
Cordless tools
Heating and ventilation
Industrial engineering
Motion control systems
Aeromodelling
Features:
1. Low CG design, lightweight design, longer flight duration
2. The factory has made a dynamic balance test for each motor
3. Integrated processing between prop mount holder and motor cap
4. Adopts Japan NMB bearing, with low noise and longer lifetime
5. Adopts Japan 0.2mm spindle, with high efficiency and low heat
6. CW and CCW propeller adapters, holding propellers tightly.
Specification:
Framework: 12N14P
KV: 2300
Length: 32.2mm
Diameter: 27.9mm
Lipo battery: 2-3S
Max. Thrust: 440g
Prop suggest: 5-6 inch
Suitable for: 250mm wheelbase mini quadcopter, lightweight fixed-wing copter, indoor 3D airplane
Note:
Emax has two different MT2204 motors, one is CW spinning (Clockwise) and the one is CCW spinning (Counter-Clockwise), which means you need two CW and two CCW motors for a drone.
