سنسور جریان اثر هال مدل HSTS016L

Description:

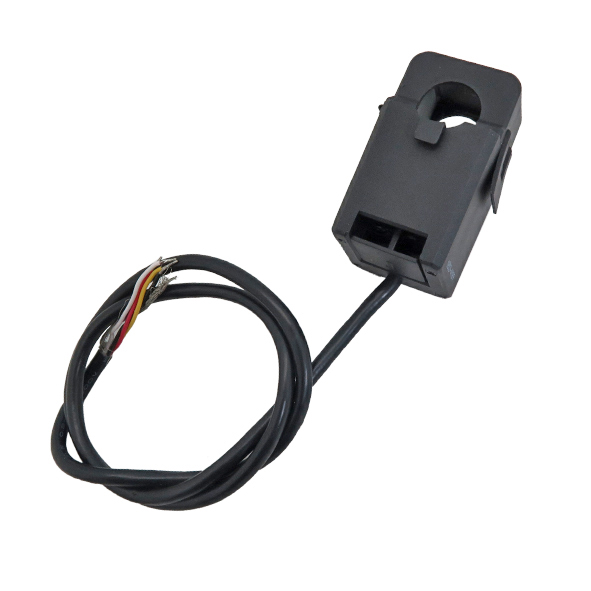

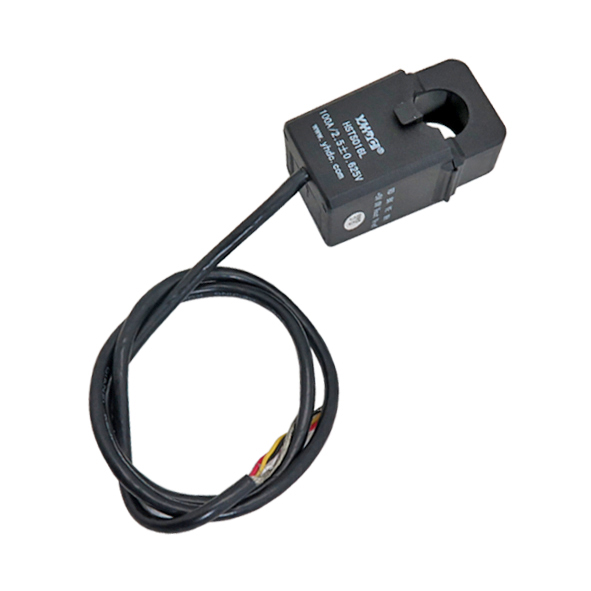

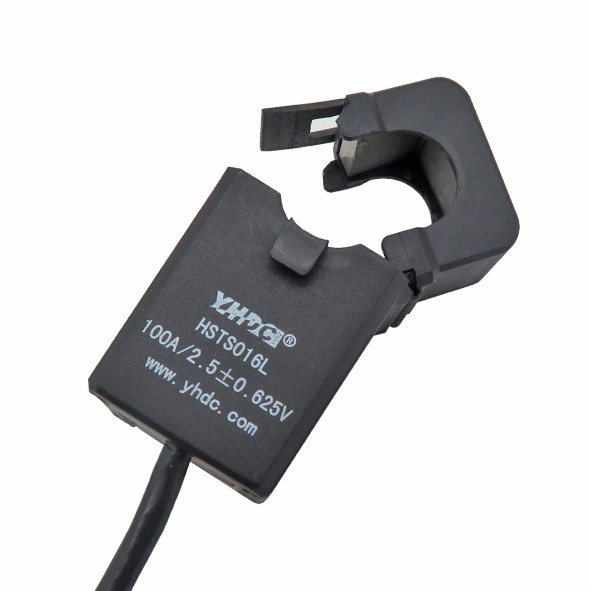

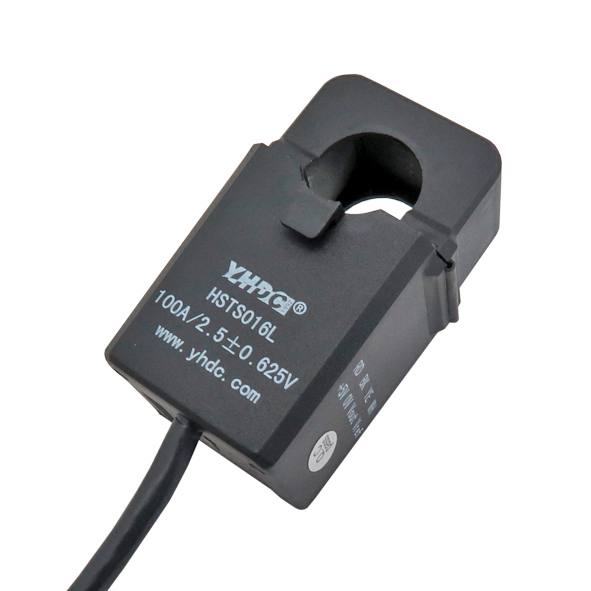

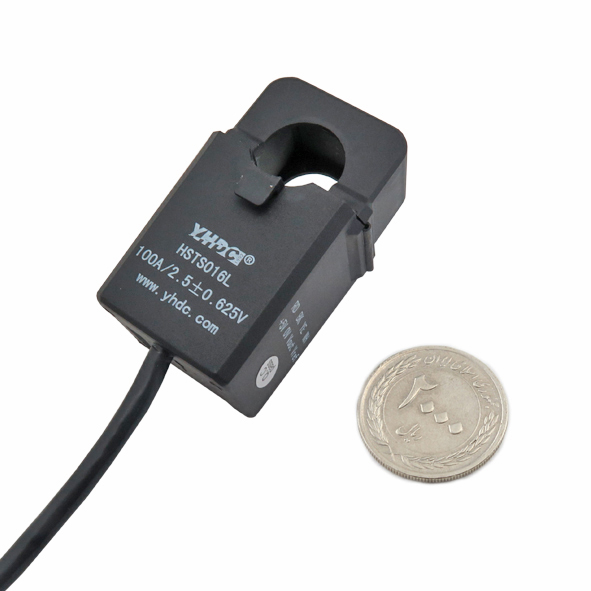

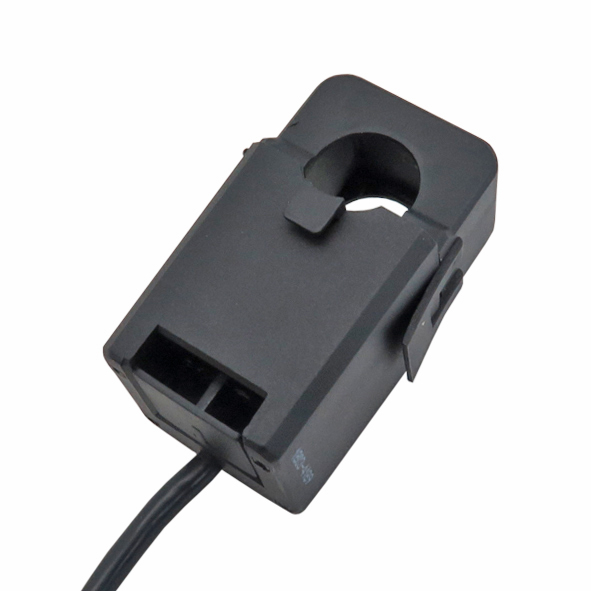

The HSTS016L Hall Effect Current Sensor is a split-core sensor designed to measure AC and DC currents up to 100A. Utilizing the Hall effect, it detects the magnetic field around the current-carrying conductor and converts it into a proportional voltage signal. This feature makes it an ideal choice for applications requiring both dynamic and static current measurements. Additionally, its contactless nature allows current measurement without direct electrical connection.

Operating Principle :

The HSTS016L sensor employs the Hall effect to measure electric current. When current flows through a conductor, it generates a magnetic field around it. The sensor, using a Hall effect element and an internal signal amplification circuit, detects variations in this field and converts them into a usable electrical signal. The ferromagnetic core focuses the magnetic field, and the sensor measures the field strength to produce a corresponding voltage. The internal circuitry then amplifies and filters this voltage to generate a stable output, which can be read by microcontrollers or control systems.

Advantages of the HSTS016L Sensor Over Traditional Methods :

One of the key advantages of this sensor is its easy installation, as it does not require breaking the circuit, unlike shunt resistors and current transducers. It also offers high electrical isolation, reducing the risk of overvoltage and enhancing safety. The sensor supports bidirectional current measurement, making it suitable for applications such as renewable energy systems, solar panels, and battery monitoring. Additionally, it provides high linearity and accuracy, ensuring reliable performance in various industrial environments. Unlike traditional shunt resistors, which generate significant heat, this sensor minimizes thermal losses, making it an energy-efficient choice.

Applications of the HSTS016L Sensor:
The HSTS016L Hall Effect Current Sensor is widely used in various industrial and electronic applications due to its high precision, electrical isolation, split-core design, and low power consumption. It plays a critical role in motor control, power supply monitoring, UPS systems, and other current-sensitive equipment.
This sensor is particularly useful for electric motor control, where it measures current to ensure monitoring and protection of both AC and DC motors. In switching power supplies (SMPS), it helps optimize efficiency and safety by continuously monitoring the output current. Uninterruptible Power Supply (UPS) systems rely on this sensor to detect sudden current fluctuations, improving system performance and energy management.
In industrial load control, the sensor prevents overloading by monitoring electrical loads. It is also essential in welding equipment and industrial machinery, where precise current control is necessary to maintain welding quality and system reliability. Additionally, it contributes to energy management systems, helping to monitor power consumption in electrical devices to enhance efficiency.
Another key application is non-contact current measurement in electrical panels, allowing for easy installation in both industrial and residential environments without the need for rewiring.
By integrating Hall effect technology with an advanced design, the HSTS016L sensor ensures reliable measurement of both dynamic and static currents, making it an excellent solution for diverse power monitoring and control applications.

Applications of the HSTS016L Sensor:

The HSTS016L Hall Effect Current Sensor is designed for precise AC and DC current measurement, offering high isolation, a split-core design, and low power consumption, making it ideal for a wide range of industrial and electronic applications.
This sensor plays a crucial role in electric motor control, ensuring monitoring and protection for both AC and DC motors. In switching power supplies (SMPS), it helps optimize efficiency and safety by continuously monitoring the output current. Uninterruptible Power Supply (UPS) systems rely on this sensor to detect sudden current fluctuations, improving system performance and energy management.
In industrial load control, the sensor prevents overloading by monitoring electrical loads. It is also essential in welding equipment and industrial machinery, where precise current control is necessary to maintain welding quality and system reliability. Additionally, it contributes to energy management systems, helping to monitor power consumption in electrical devices to enhance efficiency.
Another key application is non-contact current measurement in electrical panels, allowing for easy installation in both industrial and residential environments without the need for rewiring.
By integrating Hall effect technology with an advanced design, the HSTS016L sensor ensures reliable measurement of both dynamic and static currents, making it an excellent solution for diverse power monitoring and control applications.

Technical Specifications of the HSTS016L Hall Effect Current Sensor:

Flame Resistance Standard: UL94-V0 (Fire-resistant for enhanced safety in industrial environments)
Operating Temperature Range: -10 to +70°C (Stable performance under various temperature conditions)
Storage Temperature Range: -25 to +85°C (Capable of withstanding harsh storage conditions)
Bandwidth: DC (Suitable for precise direct current measurements)
Dielectric Strength: 2.5 kV at 50 Hz for 1 minute (High isolation and protection against unwanted voltages)
Rated Input Current: 100A (Compatible with high-power and industrial applications)
Output Voltage: 2.5V ± 0.625V (Analog output proportional to the measured current)
Power Supply: +5V DC (Low power consumption and compatibility with standard electronic systems)
