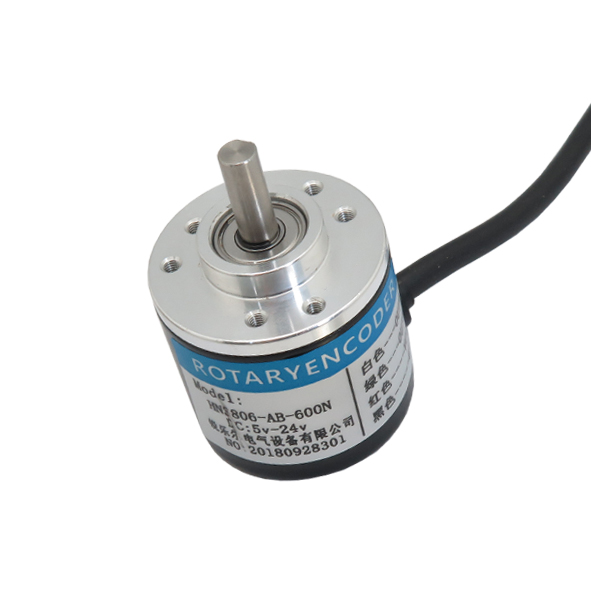

روتاری انکودر نوری 600 درجه دو فاز مدل HN3806

روتاری انکودر نوری 600 درجه دو فاز مدل HN3806

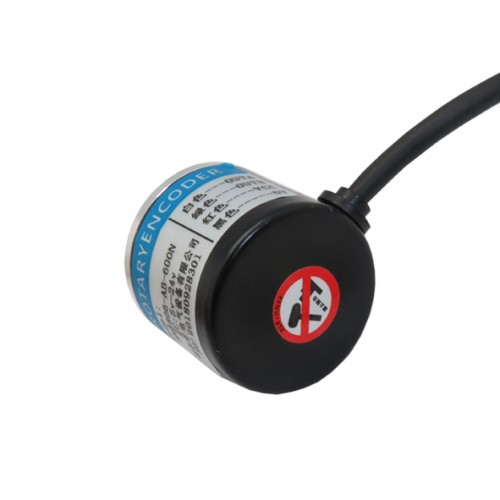

Features:
Model: HN3806-AB
Pulse Number: 600
Power source: DC 8-24V

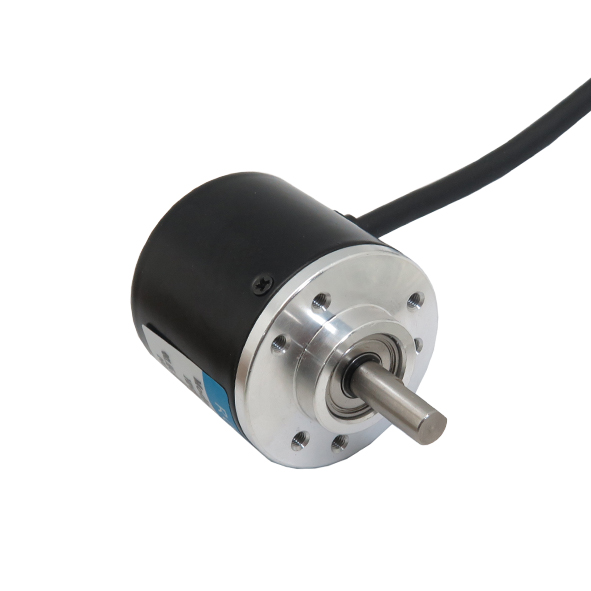

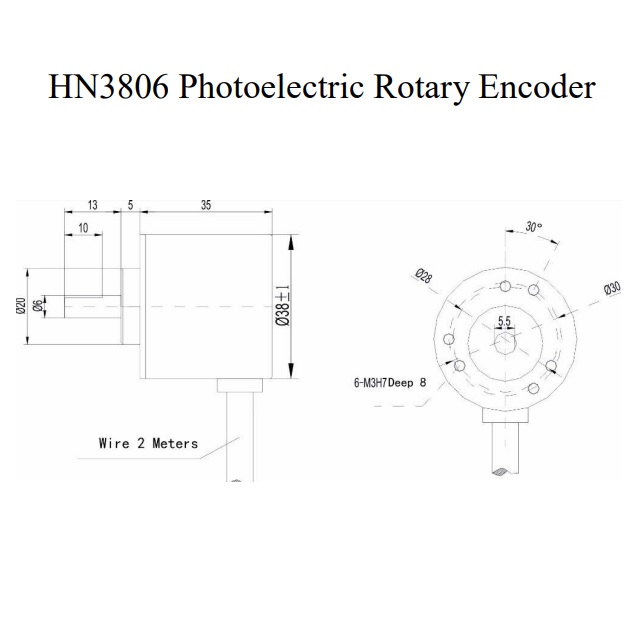

Shaft diameter: 6mm
Outer diameter : 38mm
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 30KHz

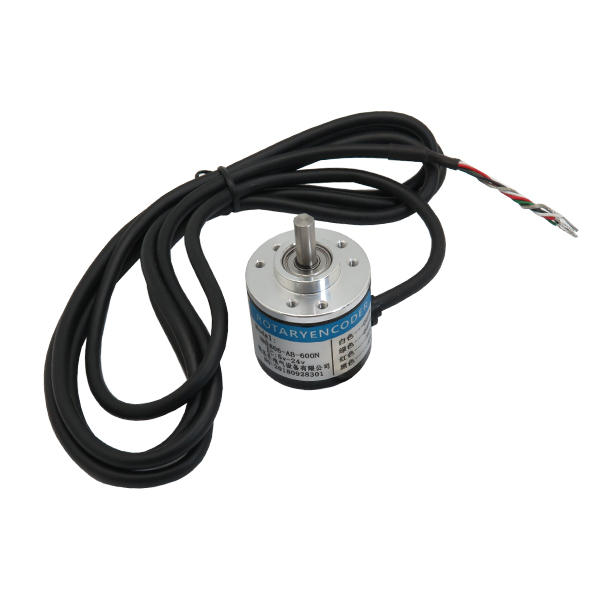

Cable length: 2 meter

Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots

Connection:

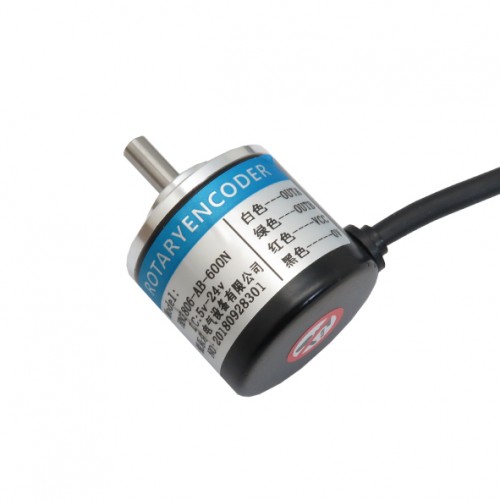

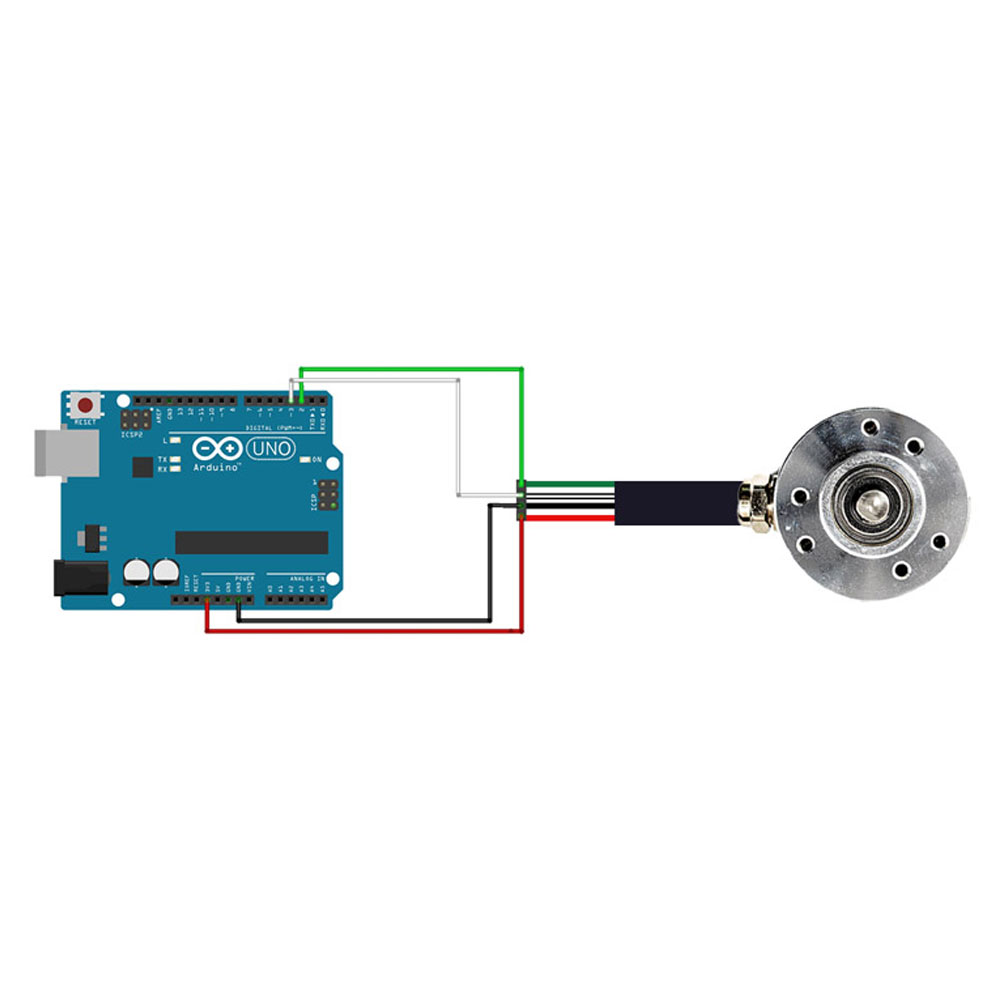

Green = A phase, white = B phase, red = Vcc power +, black = V0

Note:
AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the termina
