این آهن ربای فوق قوی به شکل مستطیل با اندازه 25 × 10 میلی متر دارای خاصیت مغناطیسی قوی است و کاربرد وسیعی دارد. اما باید توجه داشته باشید که این آهنربا شکننده است و باید به صورت خشک و در دمای اتاق نگهداری شود.
Description:
NdFeB magnets are also know as Neo, Neodymium Iron Boron, NdBFe, NIB, Super Strength, and Rare Earth Magnets (although SmCo also shares this term). Rare earth magnets like NdFeB Neodymium-Iron-Boron magnets have the highest energy density per volume and weight and also the best demagnetizations resistance.
NdFeB Neodymium-Iron-Boron magnets have a very high energy density allowing them to have very small dimensions in cylindrical or rectangular shapes. The magnet is produced by sintering and can only be processed by grinding, due to the strength and brittleness of the material.

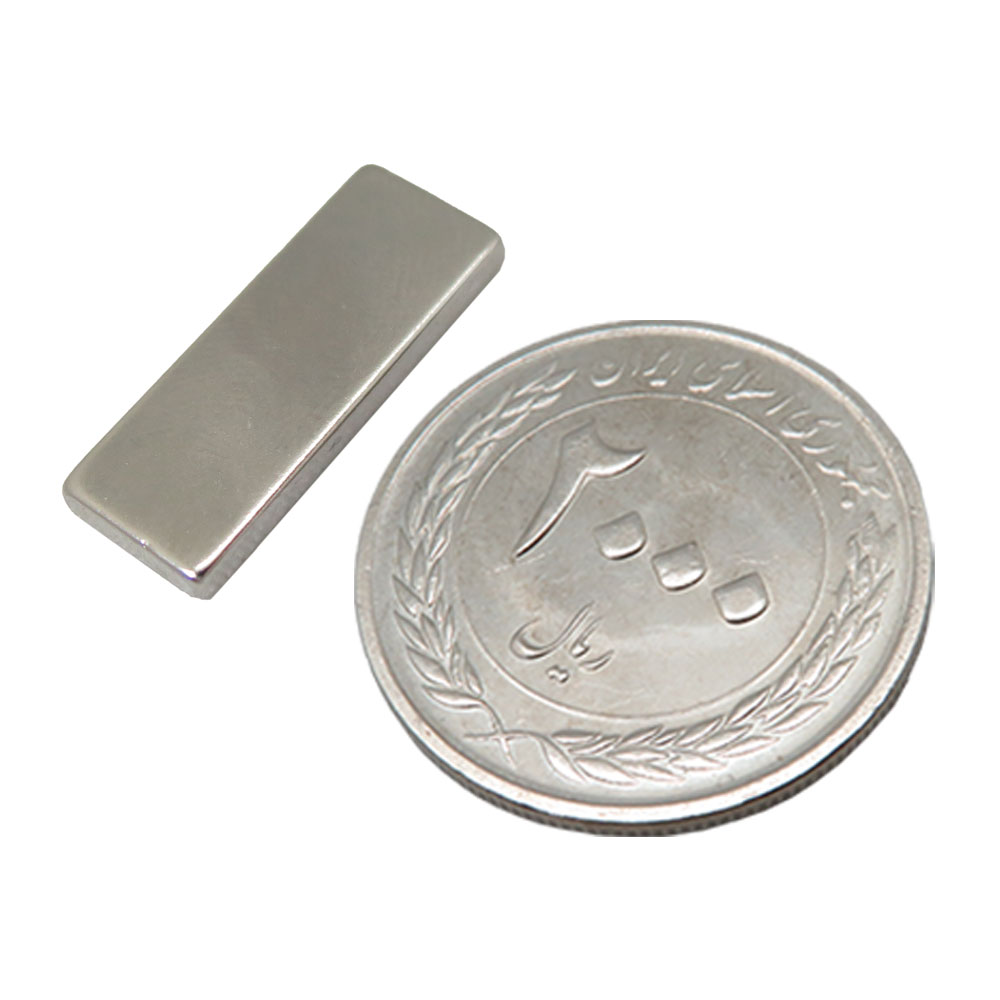

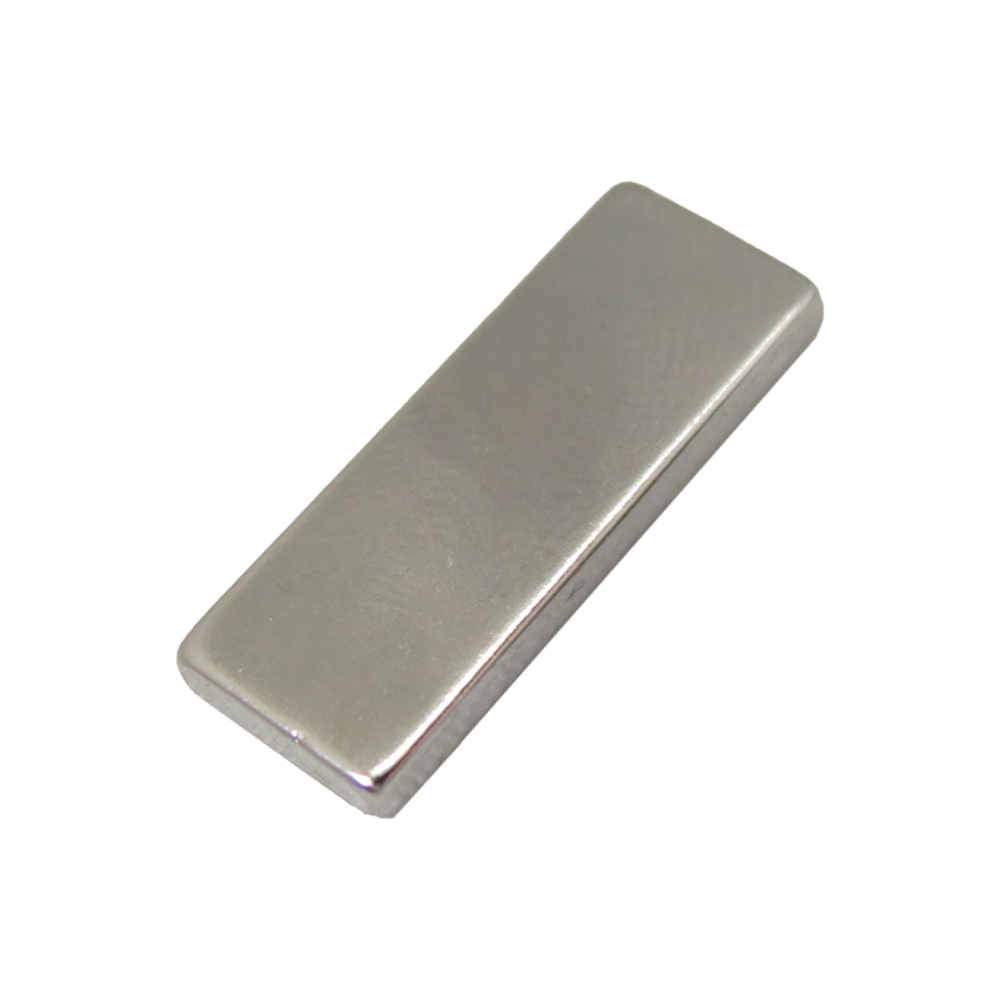

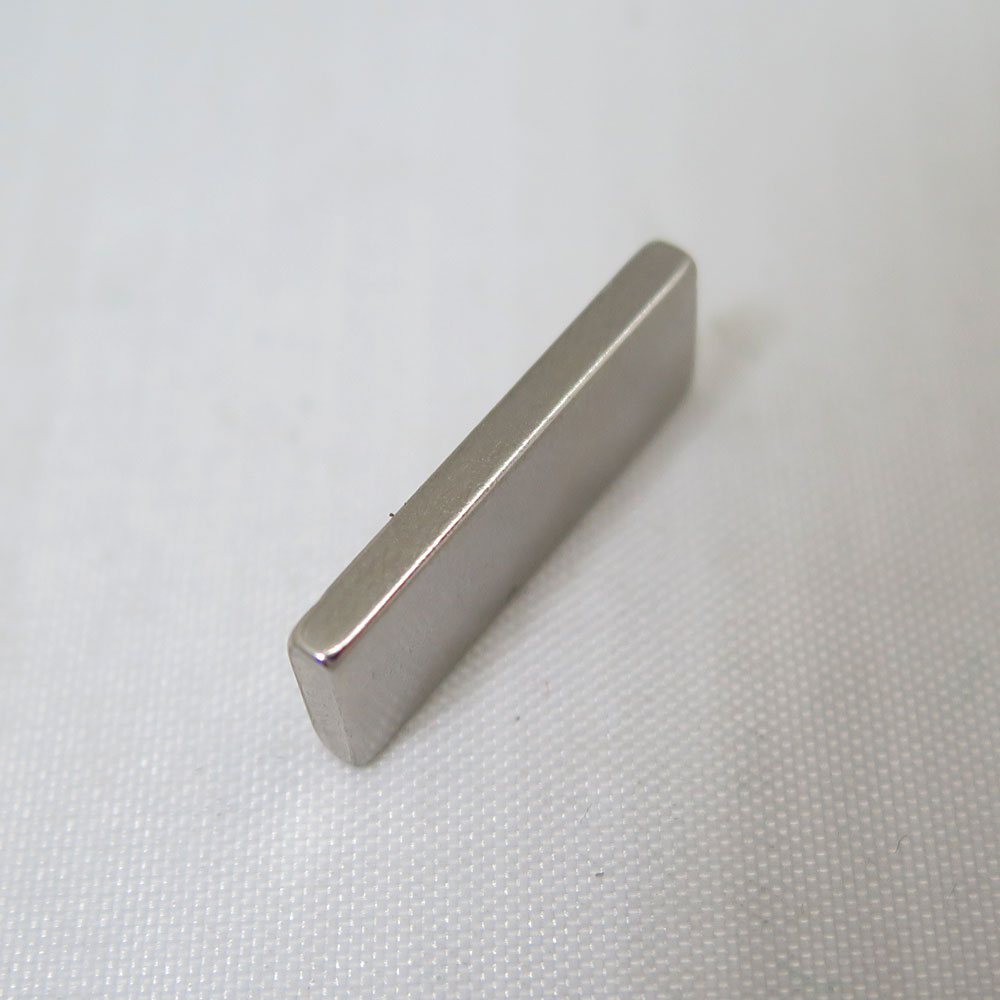

This is rectangular Neodymium-Iron-Boron magnet with small size of 25 × 10 mm.
Application:
Acoustic field: the speaker, receiver, microphone, alarm, stage audio, car audio
Electronics: permanent magnetic actuator vacuum circuit breakers, magnetic relays, meter, sound meter, a reed switch, sensors.
Electrical field: VCM, CD / DVD-ROM, generators, motors, servo motors, micro-motors, motors, vibration motors.
Machinery and equipment: magnetic separation, magnetic machinery.
Healthcare: medical equipment, magnetic health products.
Advertising magnets
Magnetic blackboard
Features:
Product material: NdFeB
Performance grade: N35
Product size: 25x10 mm
Magnetizing direction: on the plane of both ends of the NS pole
Working temperature: max 80 deg.C
