این کنترلر LED حساس به صدای موسیقی زمانی که در نزدیکی بلندگو قرار گیرد به خوبی صدا را دریافت می کند و رنگ آن با ضرب آهنگ موسیقی تغییر می کند. همچنین با داشتن کنترل از راه دور بی سیم مادون قرمز، می توان
نوارهای LED RGB کنترل کرد. این کنترلر نور LED از برق ورودی 12-24 ولت استفاده می کند. از مزایای این محصول می توان به روشنایی قابل تنظیم، سرعت پخش پویا و حساسیت بالا در دریافت صدا اشاره کرد. در نظر داشته باشید که این محصول ضد آب نیست و اگر در فضای باز نصب می شود، حتما از جعبه ضد آب استفاده کنید. شرایط خوب اتلاف گرما باعث افزایش طول عمر کنترلر LED می شود، بهتر است محصول را در محیطی با تهویه مناسب نصب کنید.
Description:

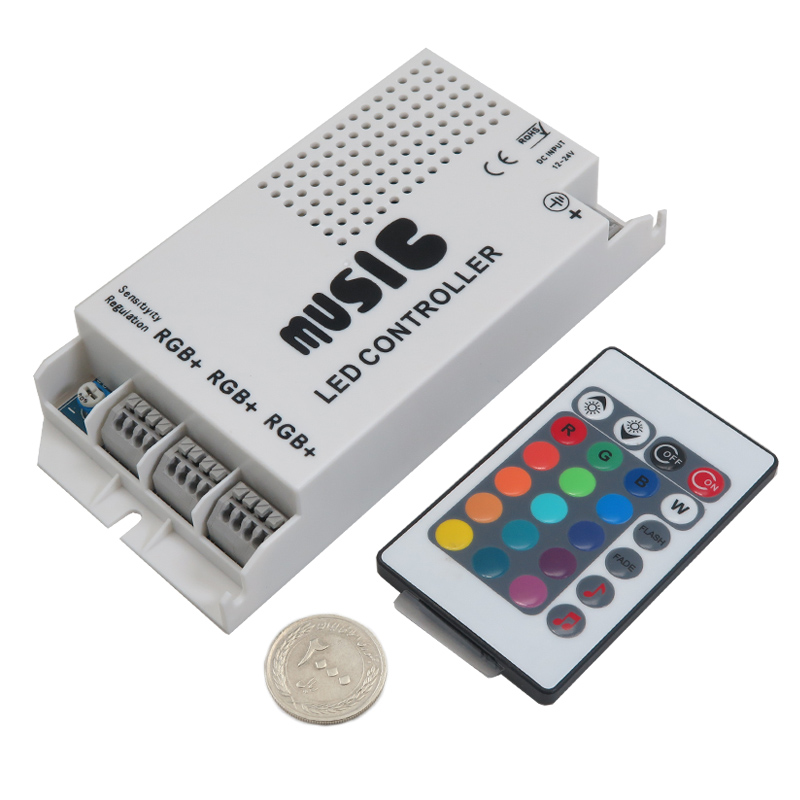

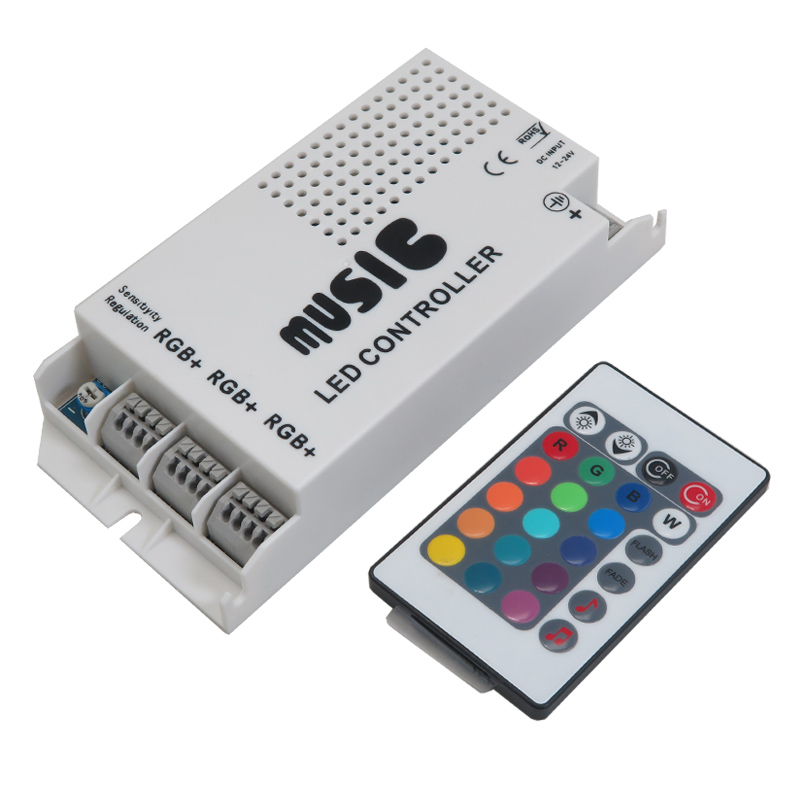

This sound sensitive music sound RGB controller picks up sound well when you have it near a speaker, and the color changes with the beat of music.
With infrared wireless remote control, very easy to control RGB LED strips.
Adjustable brightness, dynamic playing speed and sound receiving sensitivity.
This LED light controller uses 12-24V input power and has a 4 contact connection for a RGB strips.
You can choose 16 static colors, flashing, strobe, adjust brightness, adjust flash and strobe speed rate.
2 music mode include 3 function: Single color; Flashing and Beat sound-control function.
For control of LED RGB strips or other products with 12/24V DC operating voltage.
Application:
lighting
decoration
DIY projects
etc.
Features:
operating voltage: DC12V ~ 24V
Max. output power: 108 W (12 V) 216 W (24 V)
output: 3 channels (3 channels parallel)
output current: 3A / channel
Connection mode: Common anode
Signal Method: IR
Remote powered by: 1 * CR2025
Remote control: 5 ~ 10m
operating temperature: -20 ~ 45 degrees Celsius
Static power consumption: <1W
Maximum load current: <6A
Output Power: 12V:<180W, 24V:<216W
Certification: CE, RoHS
Note:
This product should be debugged and installed by qualified personnel.
This product is not waterproof, so please avoid the sun and rain. If installed outdoors, please use a waterproof box.
Good heat dissipation conditions will prolong the life of the LED controller. Please install the product in a well-ventilated environment.
Please check whether the output voltage of the LED power supply used meets the product voltage range requirements.
The diameter of the wire used must be large enough to load the connected LED lamps, and ensure that the wiring is firm to prevent the wire from overheating or poor contact triggering accidents.
Before power-on debugging, please ensure that all wiring is correct to avoid damage to the lamp due to incorrect
