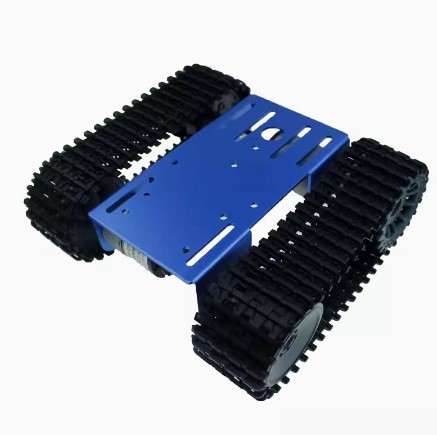

پک کامل شاسی تانک TP101 به همراه شیلد موتور L293DD و برد ESP8266
Features:

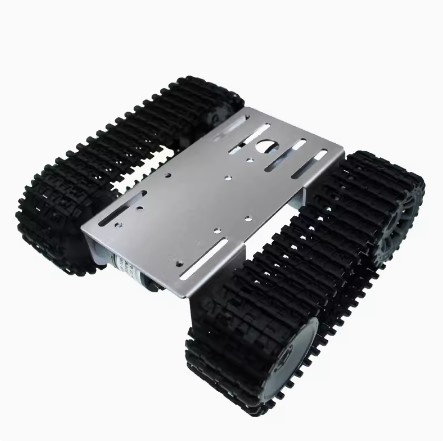

Model: TP101 shock absorption track
Product size: 19*16*6cm (length * width * height)
Product net weight: 0.47kg

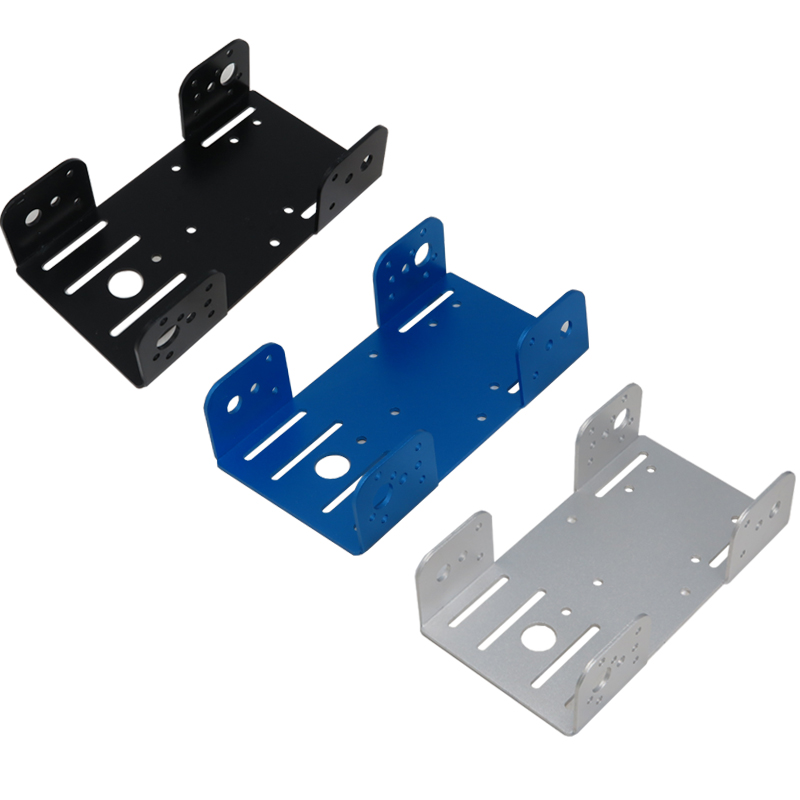

Panel material: 2mm aluminum alloy
Surface treatment: sandblasting oxidation

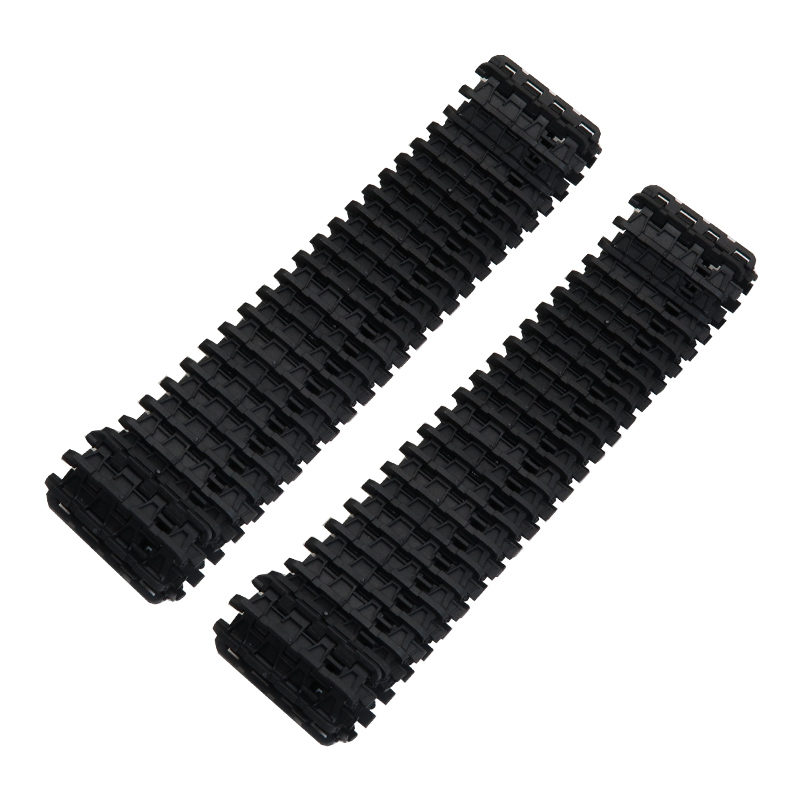

Track: engineering plastics
Wheel: plastic

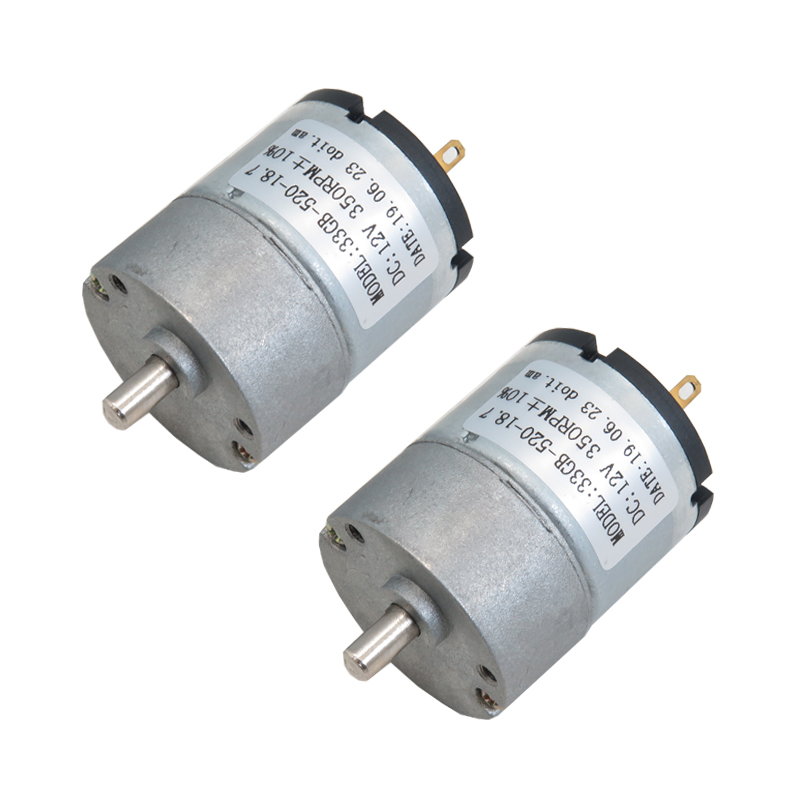

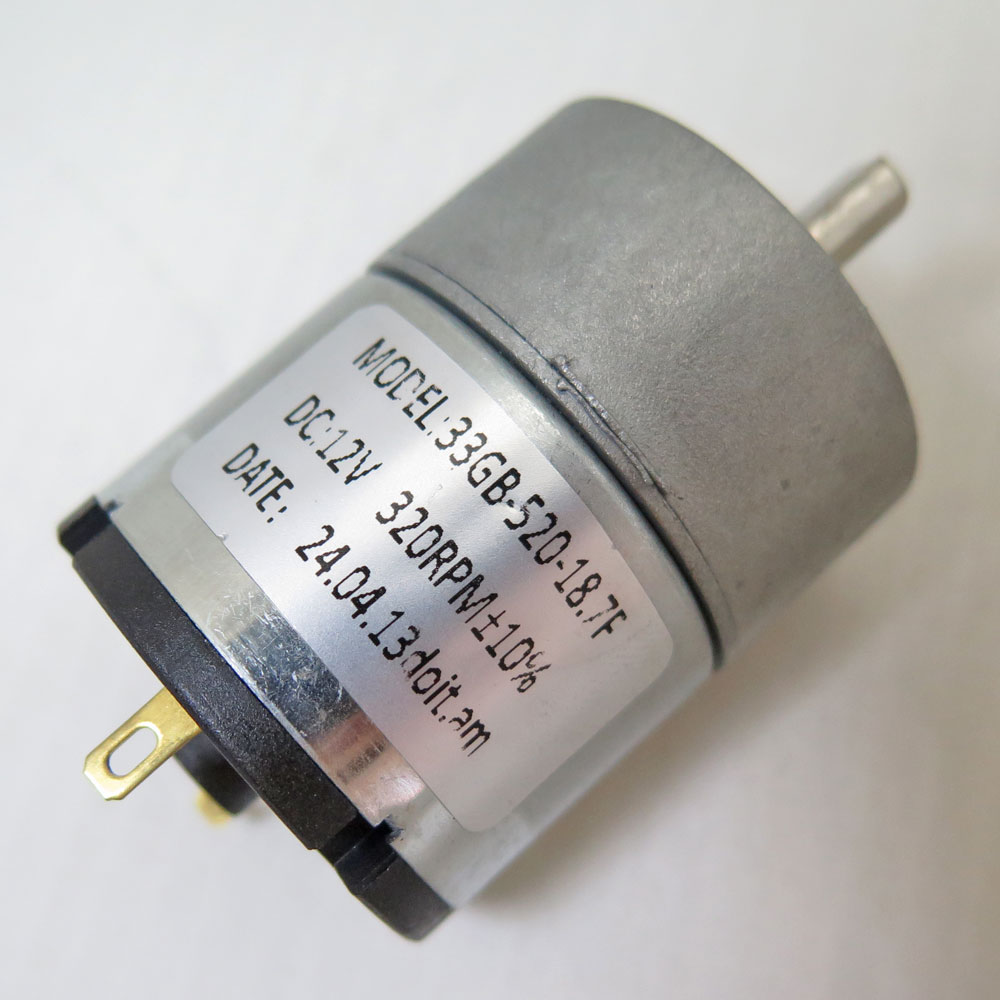

Motor parameters:
Voltage range: 6V-12V
No-load speed: 170-350RPM
Rated voltage: DC12V
No-load current: 100mA

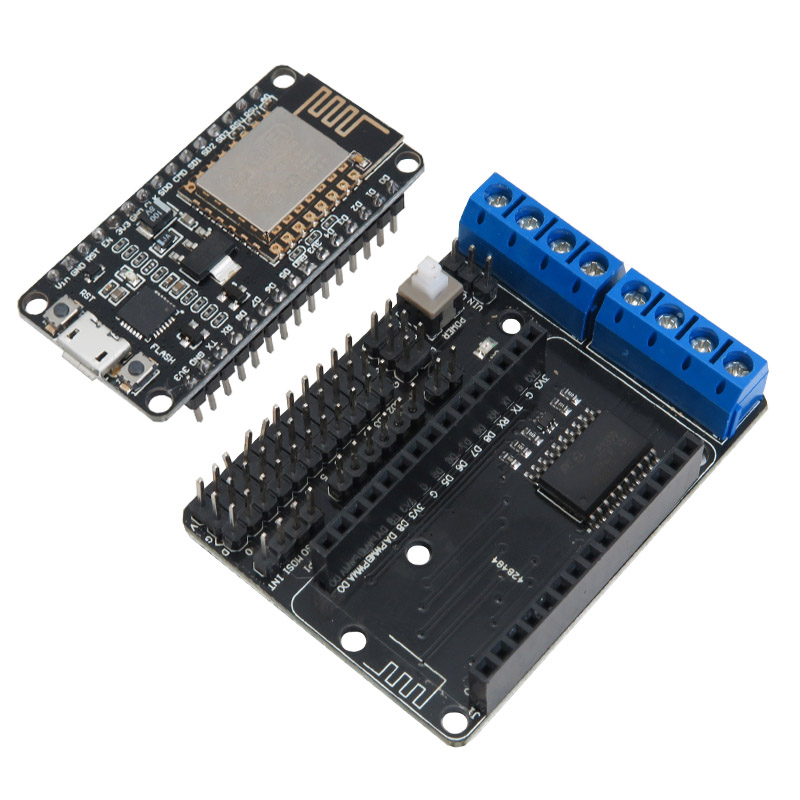

ESP-12E motor protection:
Using the ESP-12 module DEV KIT development shield;
Expand the output ports for the ESP-12 DEV KIT: SPI, UART, GPIO, AI, and 3.3 V power interface
Lengthening 2 channel motor, you can directly drive2-ways motor
Power switch design
Voltage for motor: 4,5 V-36 V
Voltage for ESP control board: 4.5 V-9 V
Managed cihip: L293D

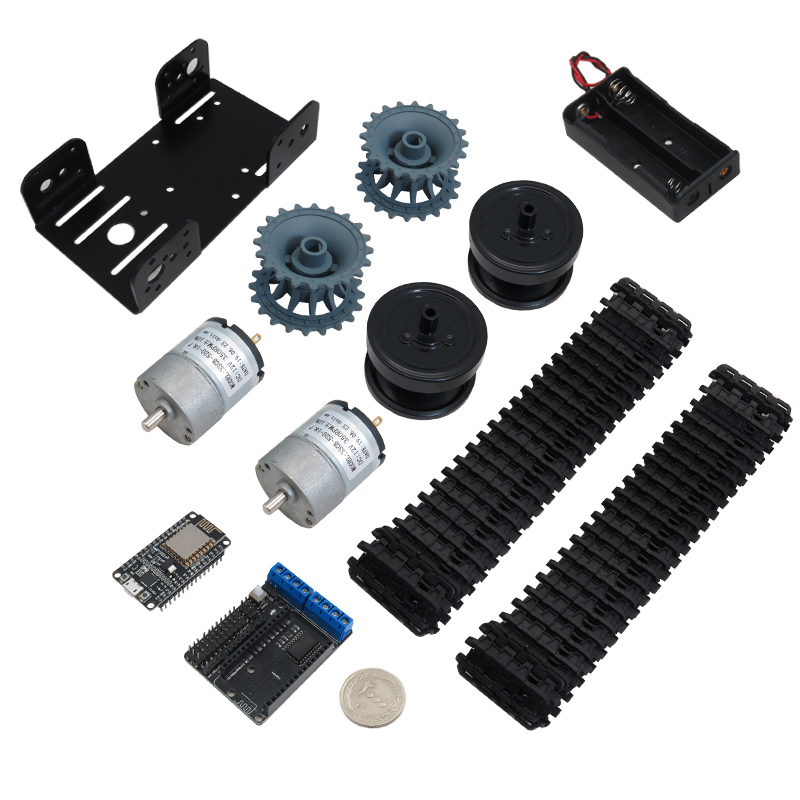

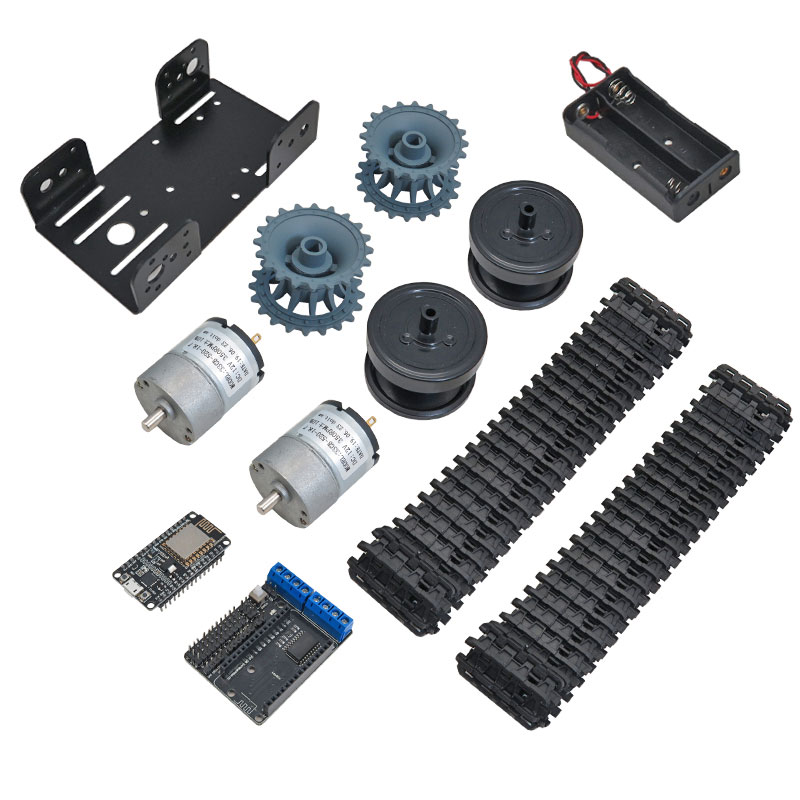

Shipping list:
Panel: 1 block
Motor: 2
Track: 2

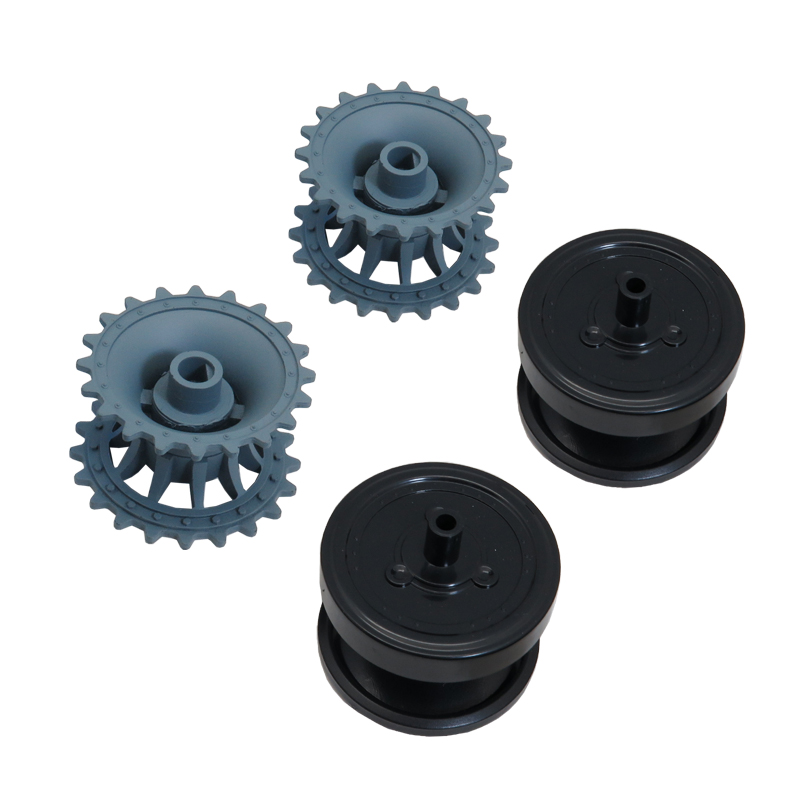

Plastic load-bearing wheels: 2
Plastic drive wheel: 2

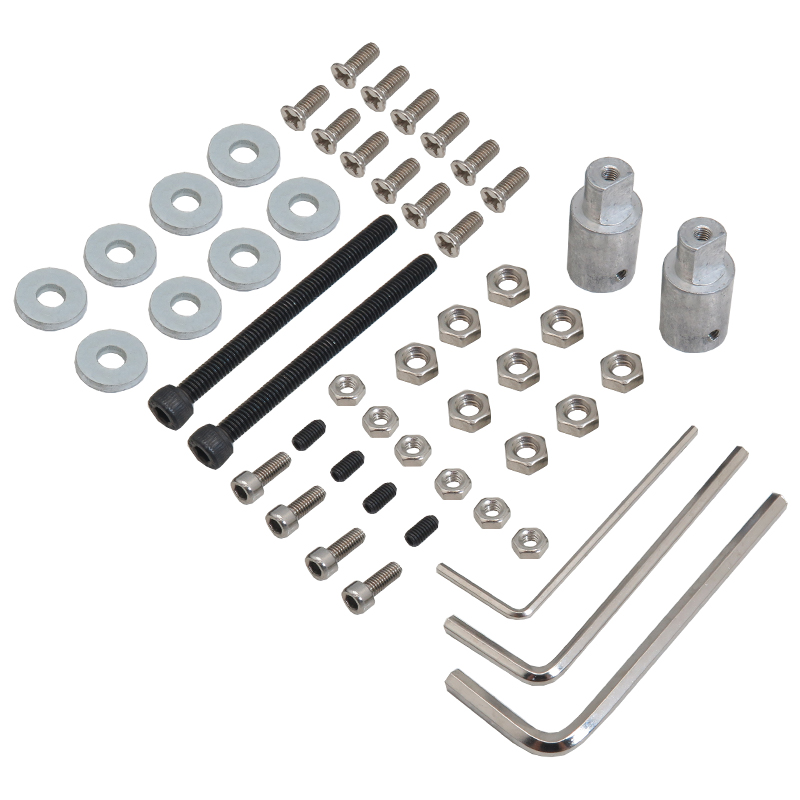

Screw accessories: 1 set
Send hex wrench
Send 18650 battery box one
