هر سیستم یا مدار الکترونیکی نیاز به یک منبع تغذیه دارد که بسته به کاربرد آن، ممکن است دارای برق ثابت یا متناوب باشد. اما فاکتورهای مهمی برای انتخاب منابع تغذیه باید در نظر گرفت. از جمله این فاکتورها راندمان بالا، خروجی مورد نظر، اتلاف توان کم و ابعاد مناسب می باشد. برخلاف منبع تغذیه خطی ، ترانزیستور Pass از منبع تغذیه سوئیچینگ به طور مداوم بین حالتهای کم اتلاف ، Full-on و full-off تغییر می کند و زمان بسیار کمی را در اتلاف هنگام انتقال می گذراند، که این ویژگی انرژی تلف شده را به حداقل می رساند.

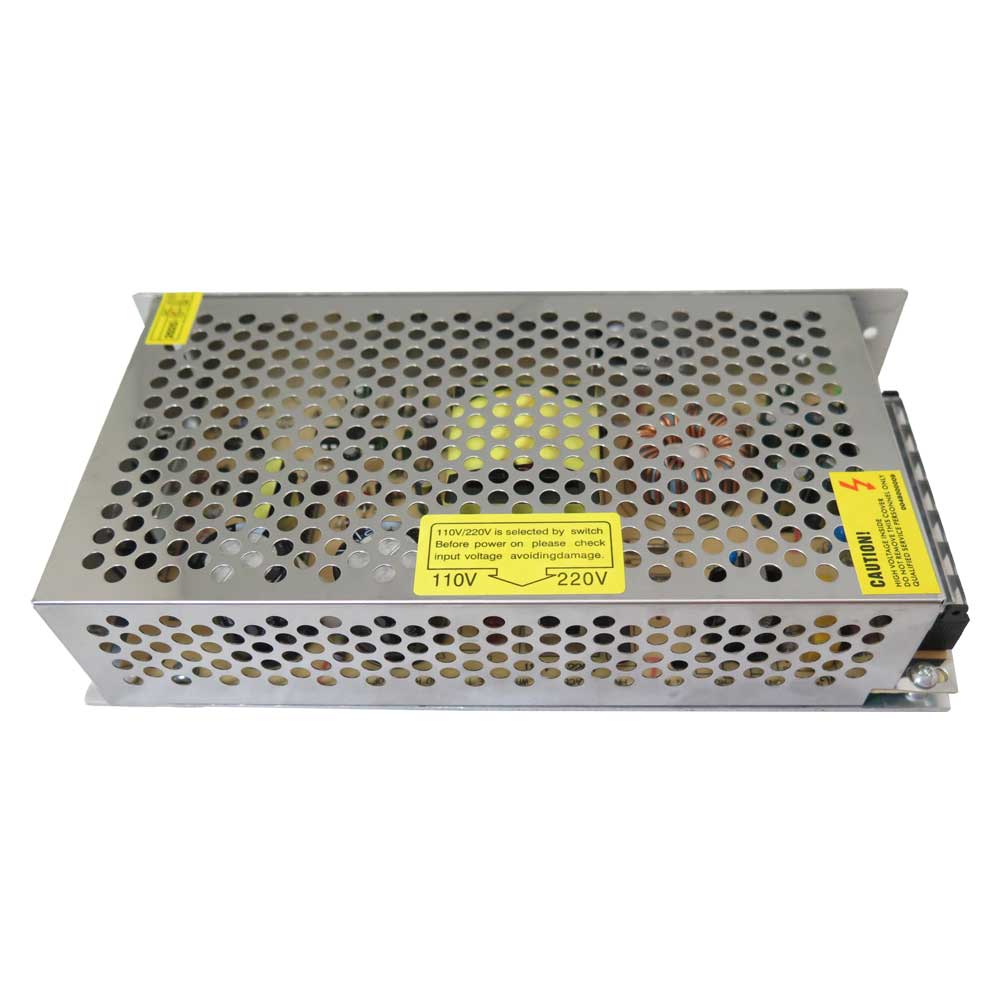

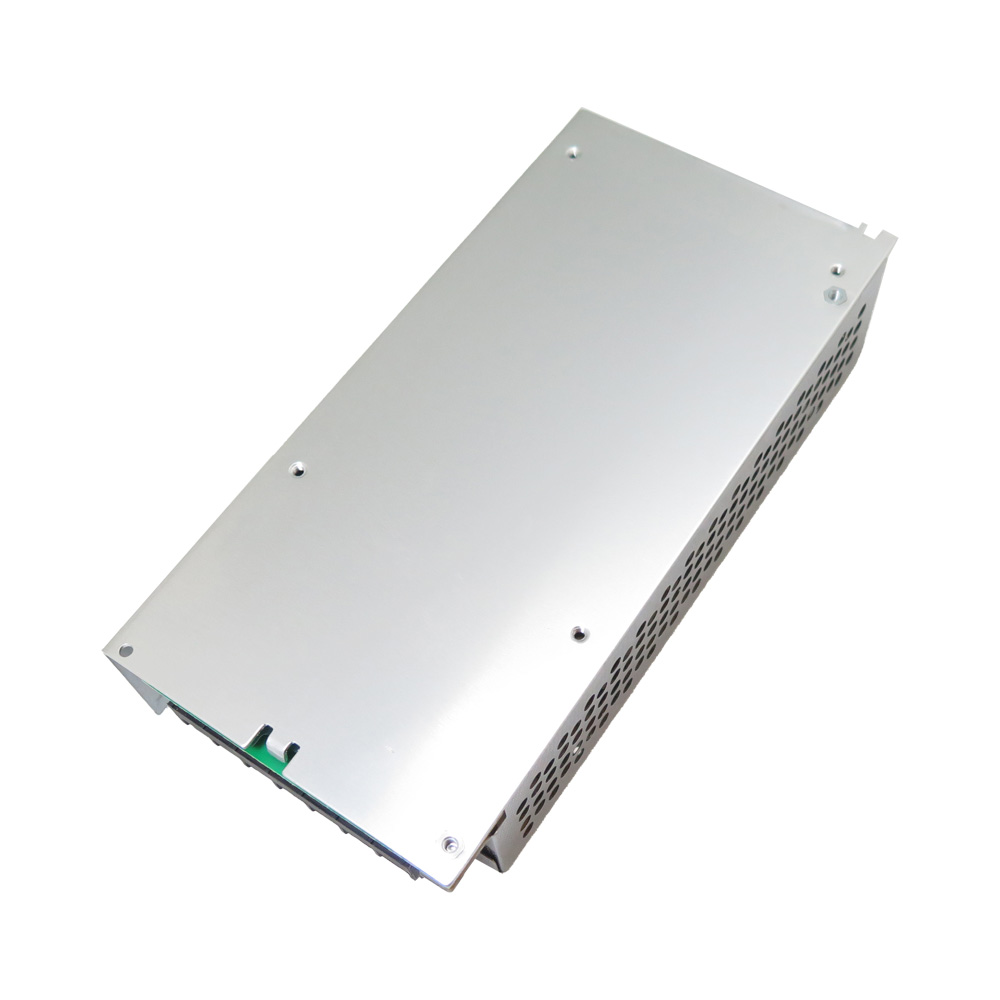

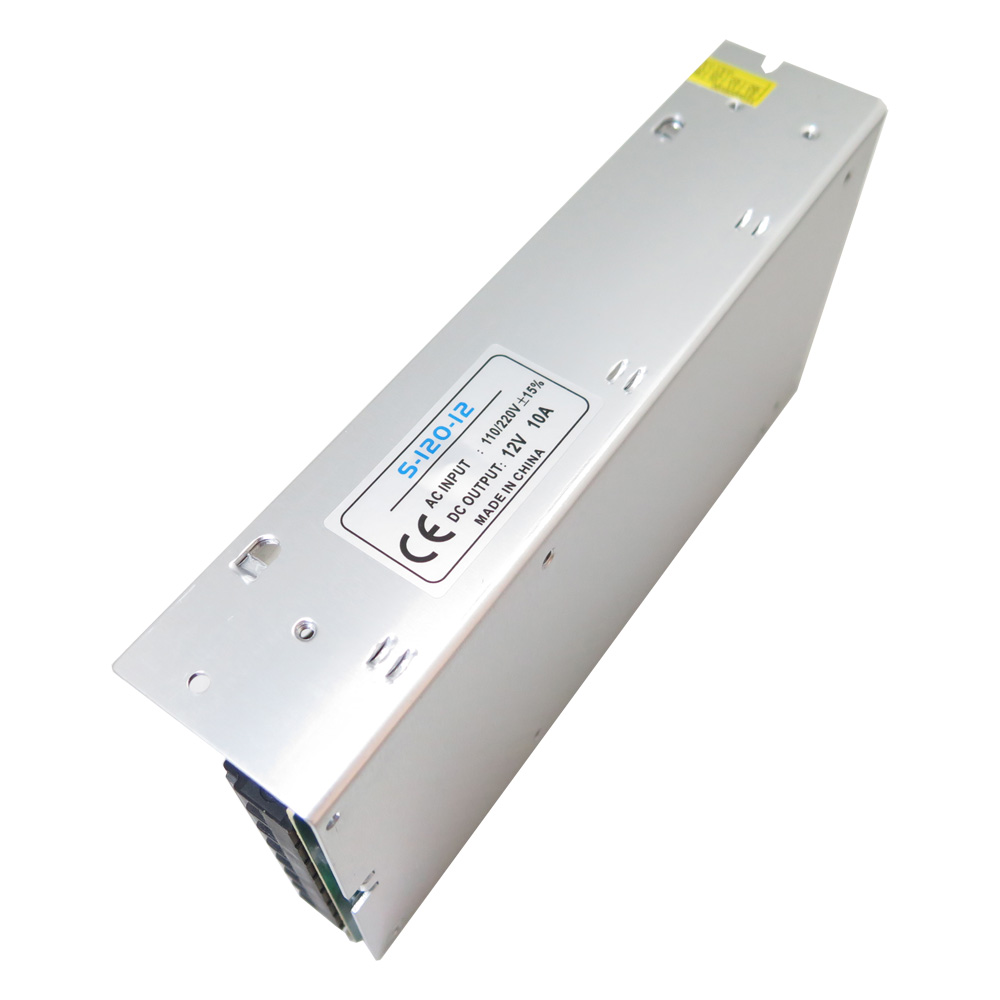

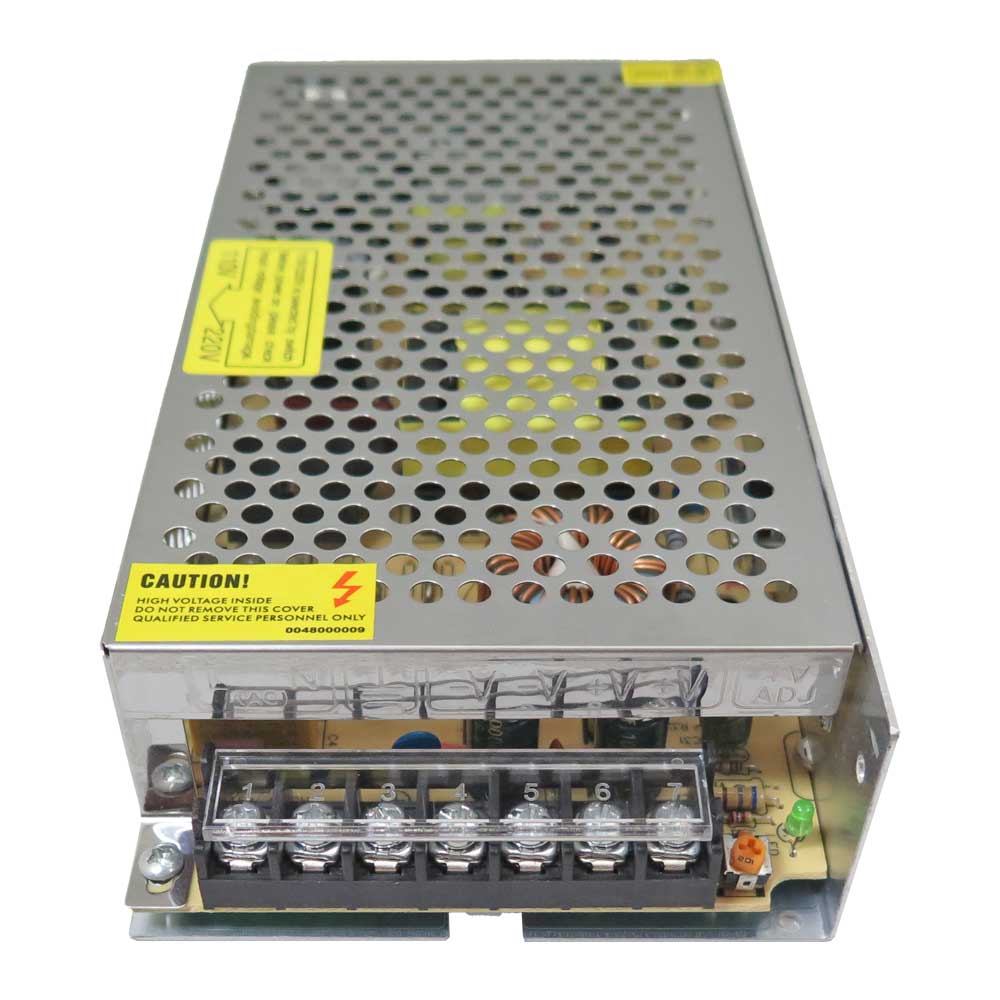

این ماژول سوئیچینگ دارای ولتاژ ورودی متناوب و خروجی ثابت 12 ولت و جریان خروجی در محدوده 10 آمپر می باشد. این ماژول پاور سوئیچینگ دارای محافظت دمایی، محافظت اضافه جریان و محافظت اتصال کوتاه می باشد.
Description:
This power supply is an isolated industrial-grade module power supply that provides temperature protection, overcurrent protection, and short-circuit protection features. With high and low voltage isolation, AC85 ~ 265V wide voltage input, and AC and DC dual-use. It includes a regulated DC 12V output, ultra-small size, high reliability, and high performance. The power supply includes overcurrent, overload, and short circuit protection.
Application:
Personal computers
Mobile phone chargers
Linear power supplies
Switching analysis measurement equipment
Electronic transformers
Features:
Protection Short circuit / overload / over voltage
Input Voltage & Frequency Range : 85 ~ 264VAC/47 ~ 63Hz
Inrush Current : 20A @ 120VAC ( cold start )
Output adjustment range : ± 10% ( rated output voltage )
Overload : 105% to 200% ( rated load ) , since the resumption of
Overvoltage: 115% ~ 135% ( rated output voltage )
Short circuit protection : recovery
Output start time : ≤ 2S @ 120VAC ≤ 1.0S @ 230VAC
Output hold time : ≥ 10mS @ 120VAC, ≥ 20mS @ 230VAC
Dielectric strength : Input - Output : AC1500V, 1min
Input - Chassis : AC1500V, 1min
Output - Chassis : DC500V, 1min
Work environment : 10 ℃ ~ 50 ℃; 20% ~ 90% RH ( non-condensing )
