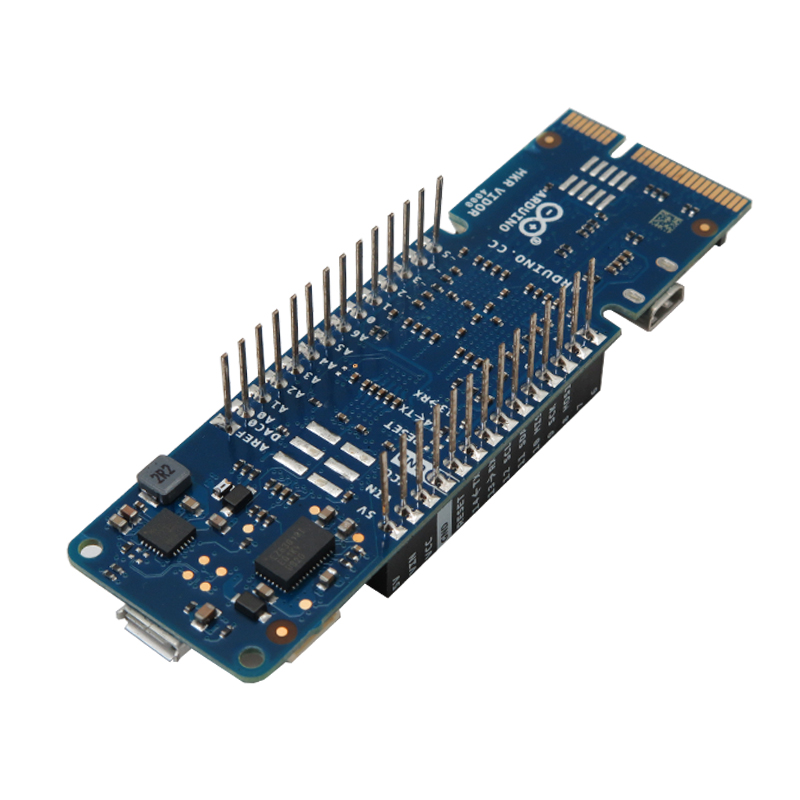

برد آردوینو MKR Vidor 4000 اورجینال
برد آردوینو MKR Vidor 4000 از جمله بردهای IoT و اولین آردوینو دارای FPGA می باشد. در این برد یک FPGA با برند Intel Cyclone استفاده شده است که این امکان را به کاربر می‌دهد هر پین GPIO را به صورت دلخواه I/O یا PWM با سرعت بالا تعریف کند. هر پین می‌تواند تا فرکانس 150MHz نوسان کند و به صورت انتخابی قابلیت‌هایی همچون SPI‌ یا PWM فرکانس بالا یا I2S‌ و … داشته باشد.  آردوینو MKR Vidor 4000 دارای FPGA دارای یک ماژول U-Blox است که به آن قابلیت Wifi و BLE را نیز می‌دهد.
پردازنده اصلی ا برد آردوینو Arduino MKR Vidor 4000، آرم کورتکس 32 بیتی SAMD21 است که در کنار آن از ماژول وای فای UBlox Nina W102 به منظور برقراری ارتباط با وای فای و بلوتوث استفاده شده و امینت ماژول از طریق چیپ رمزنگاری برقرار شده است. برد MKR Vidor 4000 عملیات پردازش سیگنال های دیجیتالی و محاسبات پردازش ویدیو و صوت را با سرعت بالا انجام می دهد و با داشتن پورت میکرو HDMI خروجی به صورت ویدیو و صوت می توان دریافت کرد.
بر روی برد آردوینو Arduino MKR Vidor 4000، ماژول شارژر باتری قرار دارد و با داشتن چیپ وایرلس و بلوتوث، قابلیت برقراری اتصال با وایرلس را دارد.

کاربرد برد آردوینو MKR:

  1. صنعت
  2. اتوماسیون منزل
  3. پردازش تصویر
  4. ارتباطات راه دور

مشخصات آردوینو MKR:

  1. پردازنده: SAMD21 آرم کورتکس M0
  2. رم: 504 KB
  3. سوییچ  شدن هر پین با فرکانس 150 مگاهرتزی
  4. پورت های ارتباطی: UART, (Q) SPI, PWM, quadrature encoder, I2C, I2S, Sigma Delta DAC
  5. دارای پورت مینی HDMI خروجی
  6. دارای ورودی MIPI دوربین
  7. دارای چراغ RGB
  8. دارای ماژول شارژر

مستندات:
معرفی MKR Vidor 4000


Description:
Arduino MKR Vidor 4000 uses the ease of use of Arduino with the most powerful reprogrammable chip FPGA available. Using Vidor, you can create a board where all pins are PWM signals that control the speed of the motor. You can capture the sound in real time and make a sound pedal for the guitar. You can create a real-time computer to read sensor information and send it to the latest monitor, or capture video and sensor information on the image and send it to the screen. You can connect to the Arduino IoT Cloud and control a complex laboratory machine running a large number of motors. You can even prototype your own processor inside the FPGA and make it work in parallel with other microcontrollers on the board. Vidor is a device that can perform experiments, precision and high-speed calculations.
Arduino MKR Vidor 4000 can perform high-speed DSP operations for audio and video processing. Therefore, Vidor includes Micro HDMI interfaces for audio and video output, and MIPI camera interfaces for video input. Following the MKR series format, all pins on the board are driven by SAMD21 and FPGA. Finally, there is a Mini PCI Express connector with up to 25 user-programmable pins that can be used to connect the FPGA as a peripheral device to a computer or create your own PCI interface. The microcontroller of this board is a low-power Arm®Cortex®-M032-bit SAMD21, which is the same as other boards in the Arduino MKR series. WiFi and Bluetooth® connections are performed through u-blox's module NINA-W10 (a low-power chipset operating in the 2.4GHz range). Most importantly, secure communication can be ensured through the Microchip®ECC508 encryption chip. In addition to this, you can also find a battery charger and a directional onboard RGB LED.
You can connect the development board to any existing WiFi network, or use it to create your own Arduino access point.

MKR Vidor 4000 Arduino Application:
Industry
home automation
video
aerospace
telecommunications

Features:
Microchip: SAMD21
embedded RAM: 504 KB
HW multipliers: 56 18x18 bit (for high-speed DSP operation)
Each pin can be switched at a frequency exceeding 150 MHz
Interfaces: UART, (Q) SPI, high resolution/high frequency PWM, quadrature encoder, I2C, I2S, Sigma Delta DAC
Mini HDMI output
MIPI camera input
onboard RGB LED
Battery charger Module
