تنظیم کننده خطی یا
رگولاتور خطی، روشی برای تأمین ولتاژ ثابت است. مقاومت داخلی رگولاتور متناسب با مقاومت بار تغییر میکند و در نتیجه ولتاژ ثابتی در خروجی بدست میآید. رگولاتور ولتاژ LM338 از جمله رگولاتورهای قابل تنظیم ولتاژ در محدوده 1.2 تا 37 ولت با جریان خروجی حداکثری 7 آمپر است. این رگولاتور ولتاژ با پکیج TO-220 طراحی و تولید شده است. المان تنظیم کننده ولتاژ طوری طراحی میشود که مانند یک مقاومت متغیر عمل کرده و به طور پیوسته یک مدار تقسیم ولتاژ را به منظور تأمین ولتاژ خروجی ثابت، تنظیم کند و همواره اختلاف ولتاژ بین ورودی و خروجی مدار را به صورت حرارت تلف کند.
Description:

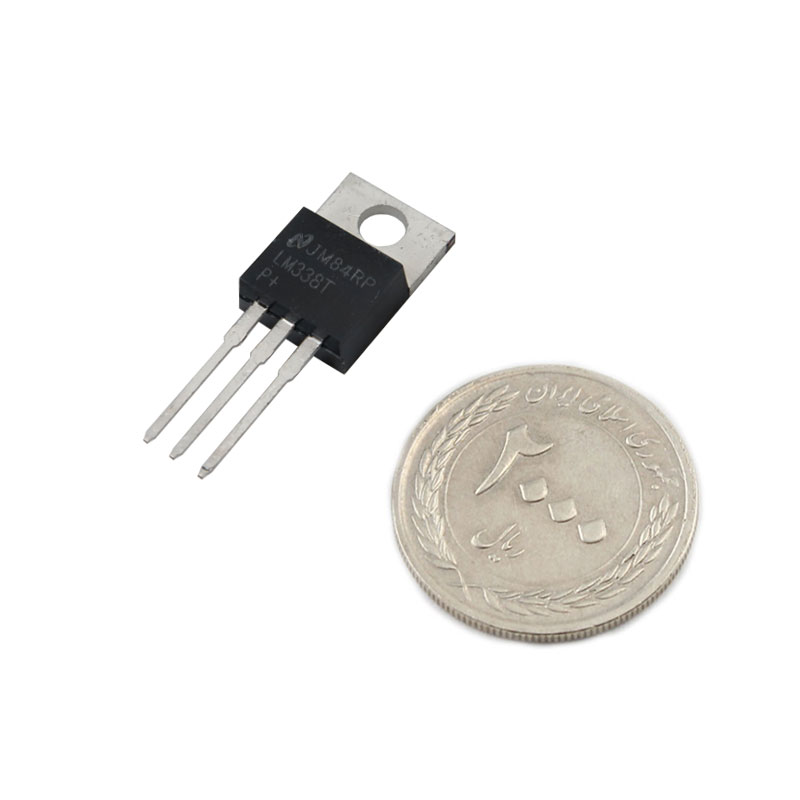

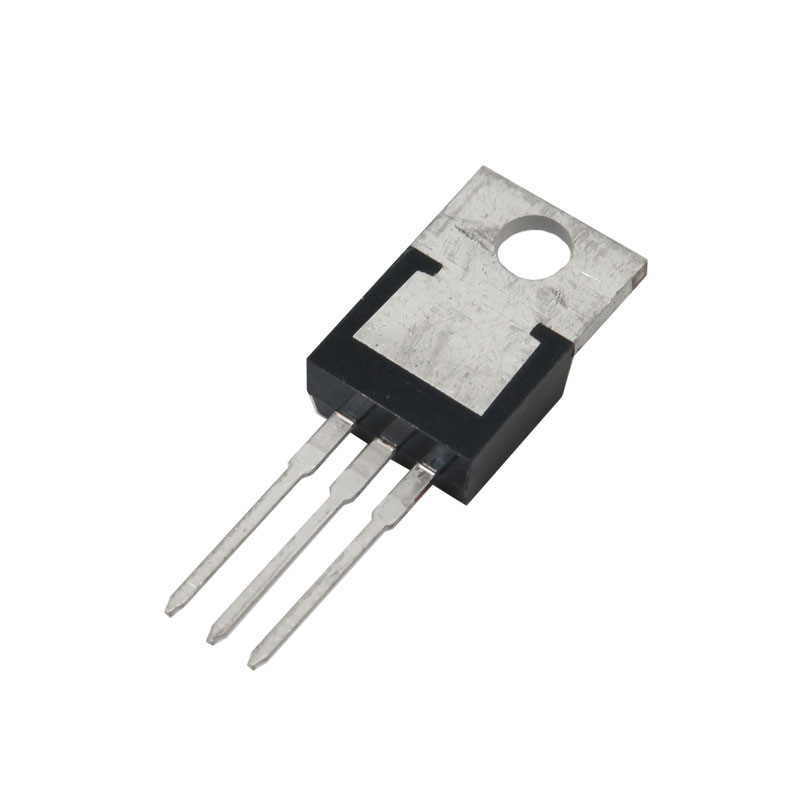

LM338T is a positive voltage regulator with 3 adjustable terminals. An important feature of the LM338 family is time-dependent current limitation.
The is adjustable 3-terminal positive voltage regulators capable of supplying in excess of 5A over a 1.2V to 32V output range.
They are exceptionally easy to use and require only 2 resistors to set the output voltage.
The careful circuit design has resulted in outstanding load and line regulation comparable to many commercial power supplies.
These devices feature a typical line regulation of 0.005% and typical load regulation of 0.1%. It includes time-dependent current limiting, thermal overload protection, and safe operating area protection. Overload protection remains functional even if the ADJUST terminal is disconnected.
Application:
Adjustable Power Supplies
Constant Current Regulators
Battery Charge
Features:
7A Maximum output current
5A output current
Adjustable output 1.2V to 37V
Line regulation typically 0.005% /V
Package: TO-220
Thermal regulation
Current limit constant with temperature
