پرینترهای حرارتی همان پرینترهای بکار رفته درسوپر مارکتها، دستگاه هاي
كارتخوان، عابر بانك يا سيستمهاي نوبت دهي هستند. جهت رسید های پرداخت در
فروشگاه ها معمولا از پرینترهای حرارتی استفاده می شود.
این پرینترها
دارای عملکرد سریع ،آسان و ارزان برای پرینت روی رول های کاغذ هستند.
مکانیزم جدید چاپ تحت عنوان چاپ با حرارت یا چاپگرهای حرارتی معرفی شده
اند. در این نوع چاپ نیاز به جوهر نیست در واقع هد دستگاه توسط ایجاد حرارت
بر روی کاغذ مینویسد. البته باید توجه داشت که کاغذ از نوع خاص می باشد و
در واقع در این مکانیزم نیاز به کاغذی داریم که در مقابل حرارت حساس بوده و
واکنش نشان دهد.
Description:

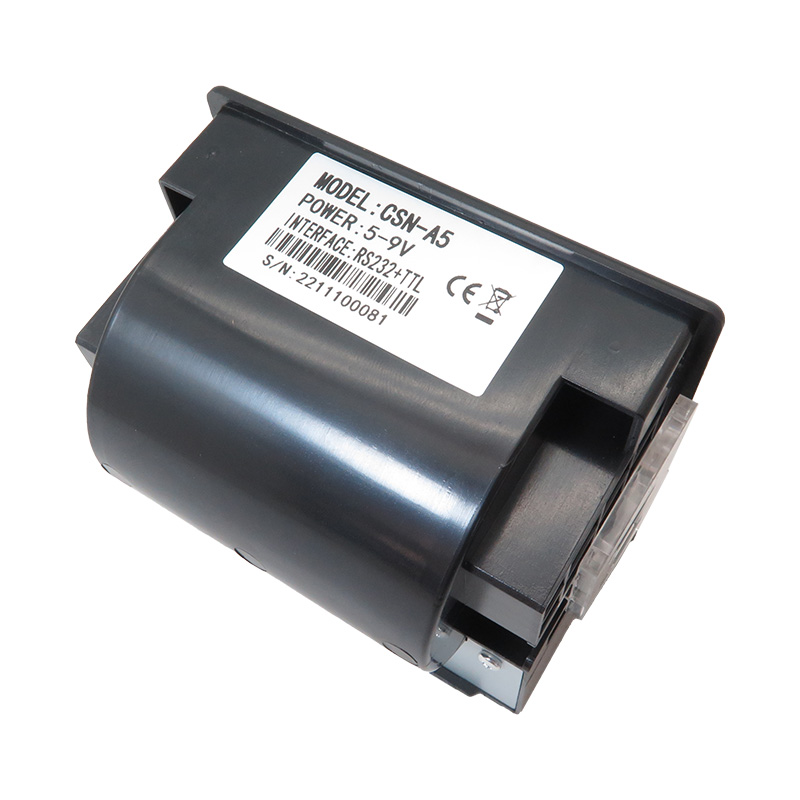

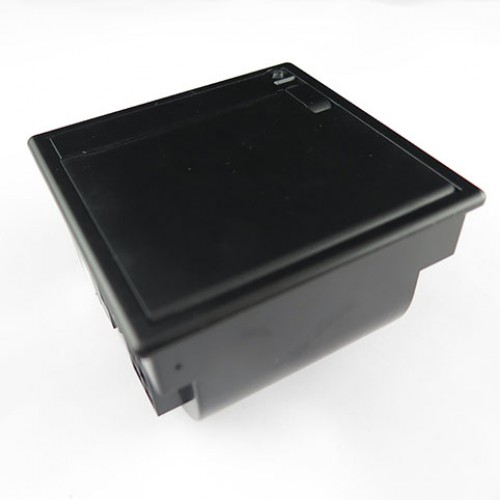

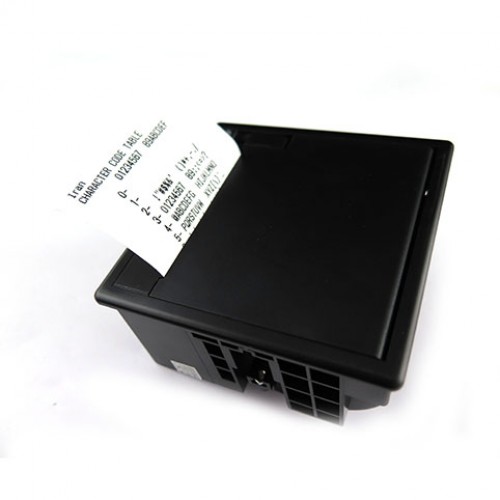

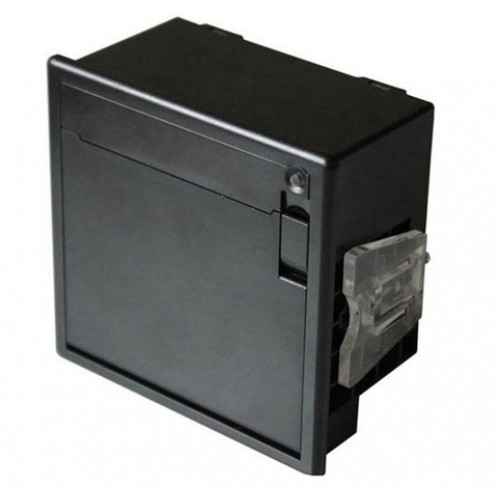

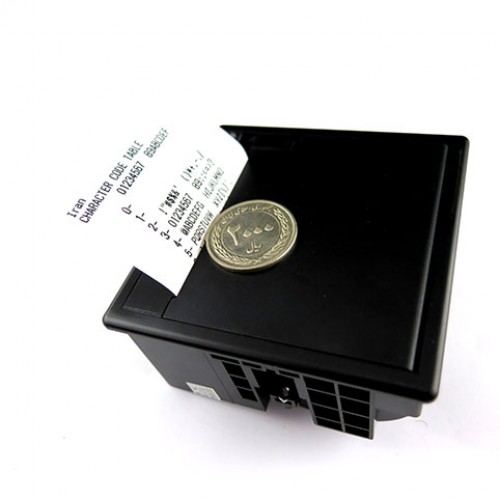

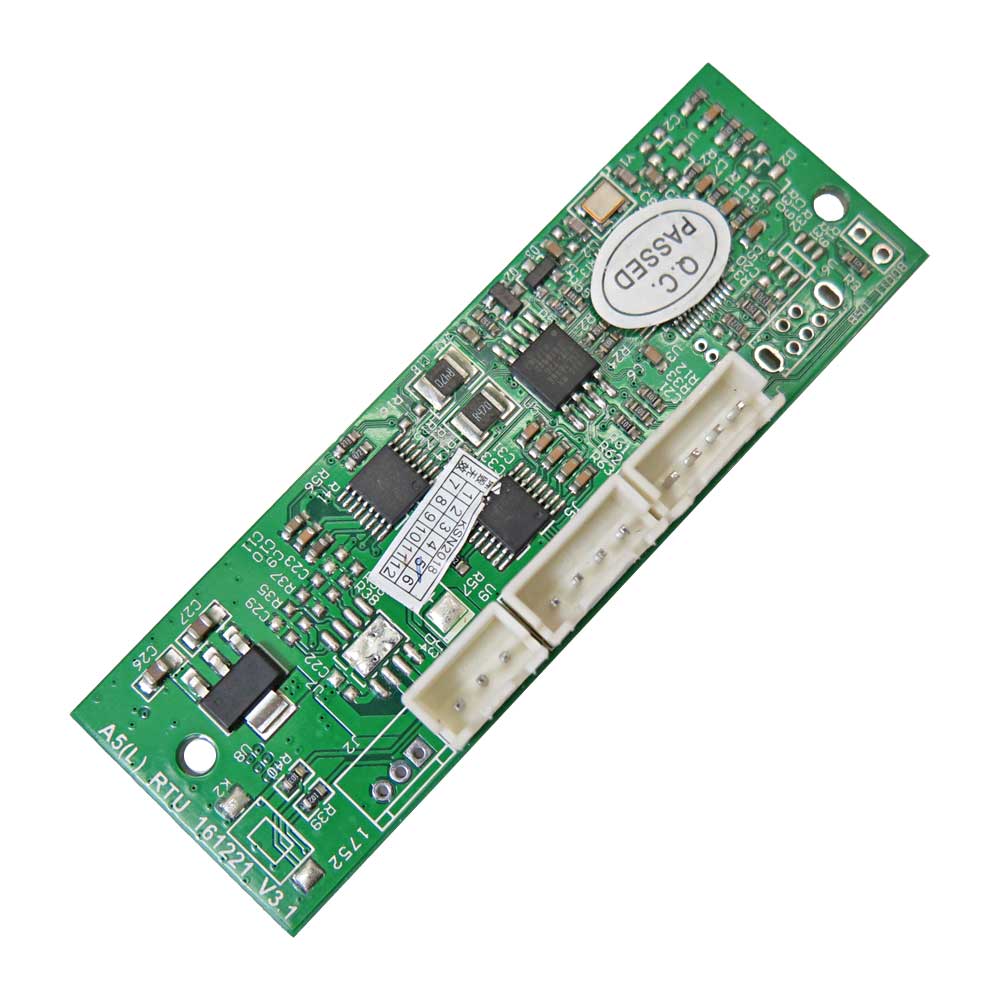

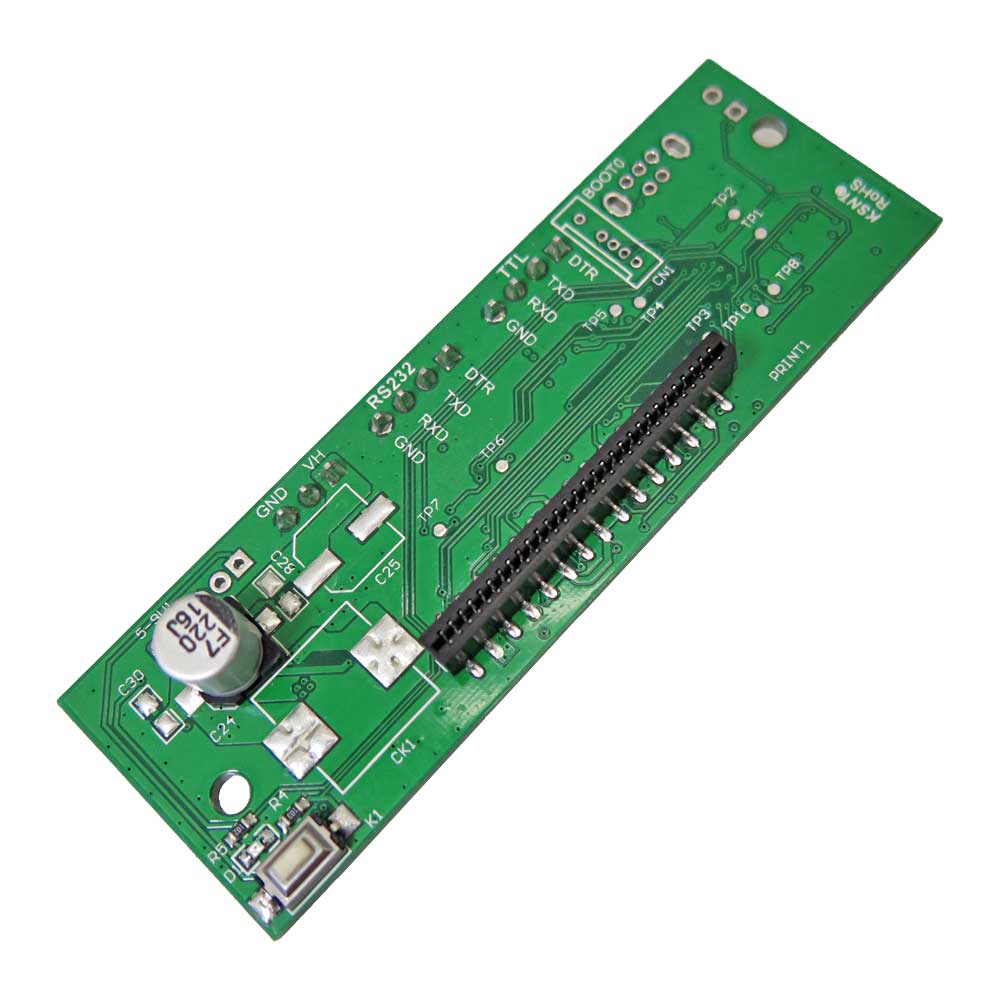

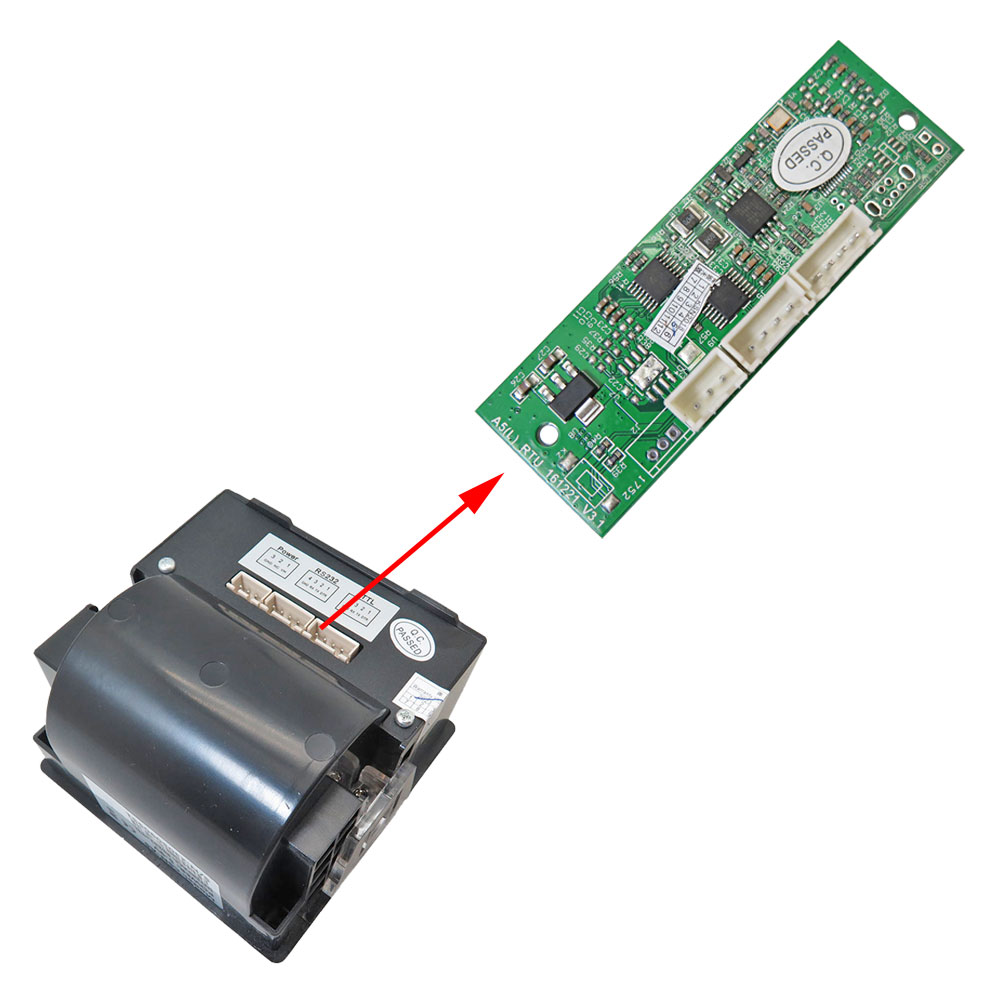

The CSN-A5 printer is a thermal Printer equipped with Serial(RS-232, TTL) /Parallel/USB interfaces.
Thermal
printers are most often used to print your store’s receipts, because of
not using any ink, or cartridge of any sort. The paper prints on turns
black when heated. So this printer simply applies heat where another
printer would apply ink. Due to the quality of the print, speed, and
technological advances, it has become increasingly popular and is mostly
used in the airline, banking, entertainment, retail, grocery, and
healthcare industries. Thermal printers print more quietly and usually
faster than impact dot matrix printers. They are also smaller, lighter
and consume less power, making them ideal for portable and retail
applications. Its efficiency can be utilized in retail sectors.
Roll-based printers can be rapidly refilled. Commercial applications of
thermal printers include filling station pumps, information kiosks,
point of sale systems, voucher printers in slot machines, print on
demand labels for shipping and products, and for recording live rhythm
strips on hospital cardiac monitors.
Feature:
Smart Appearance
Easy Paper Loading
Low-noise Thermal Printing
Different Interfaces Optional
Front Panel Make Paper Replacement Easily
Easily Embedded In Any Kinds of Instruments
Application:
Medical Equipment, Measureing equipment, Security Equipment, Analyzing Instrument&Meter.
Specification:
Printing Method: Thermal Line
Printing Speed: 50-80mm/s
Resolution: 8 dots/mm, 384 dots/line
Effective Printing Width: 48mm
Character: Character Set, ASCII, GB2312-80(Chinese)
Print Font: ANK:8x16,9x17,9x24,12×24 , GBK: 16×16,24 ×24
Paper Spec:
Paper Type: Thermal Paper
Paper Width: 57.5± 0.5mm
Paper Roll Diameter: 50 mm Max
Reliability: MCBF 5 million lines

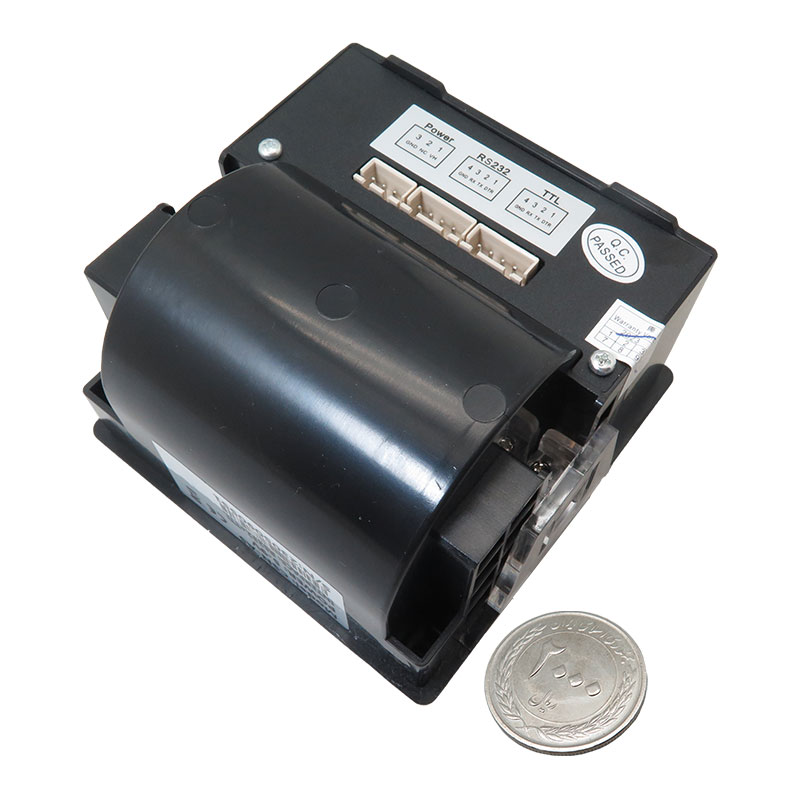

Interface: Serial(RS-232,TTL)/Parallel/USB
Insert Depth: 53.5mm
Power Supply (Adapter): 5V ~ 9V/12V DC
Physical: Outline Dimension (WxDxH): 88x87x56.5mm
Installation Port Size: 82 x 82mm
Color: Beige/Black
Operating Temp: 5°C ~ 50°C
Operating Humidity: 10% ~ 80%
Storage Temp: -20°C ~ 60°C
Storage Humidity: 10% ~ 90%
