کانکتور سیم سه ورودی در سه خروجی

The wire connector is used to connect the wire, without the need to connect two or more strands of wire together and then without using electrical glue; Because in this method, due to the lack of strength of the connections and also the local increase in the resistance of the wires at the connection point, if large currents pass through the wires, the glued part will be quickly damaged and may even catch fire. It is one of the best types of push terminal connectors.

One of the most important features of the push terminal is that it is screwless, in the sense that the connection between two electric wires takes place without the need for screwing. This feature makes it easy to work with this connector. The electrical push terminal works by using only one button. In fact, the reason for its name is because of this push button.

These power cord connectors are easy to use, with a push design that allows you to quickly connect power cords to each other. By removing 11-12mm of the wire sheath, insert them into the connector and secure the wire in place.

House wiring

Industrial wiring

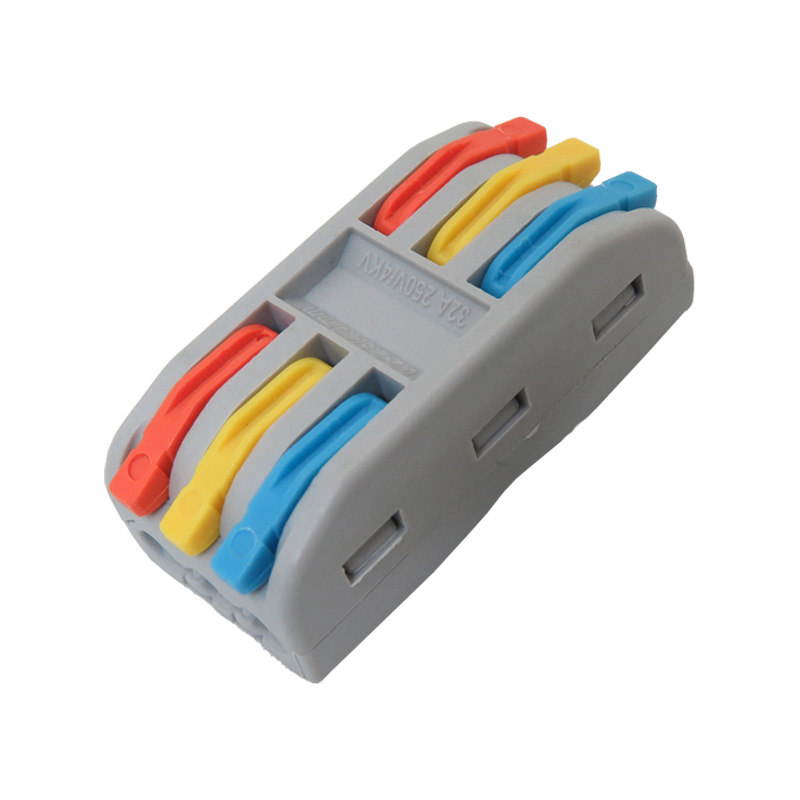

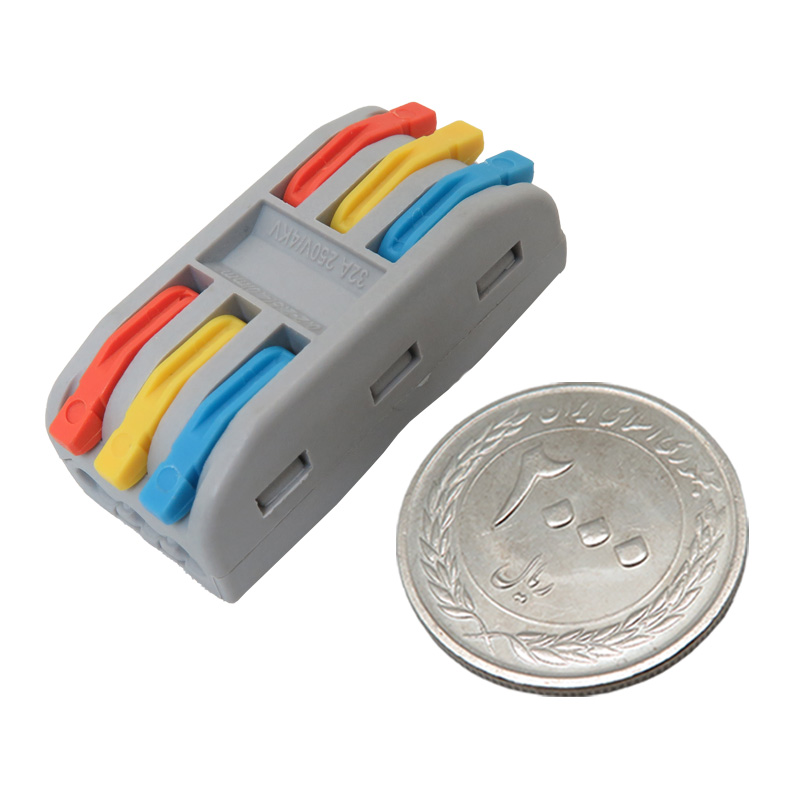

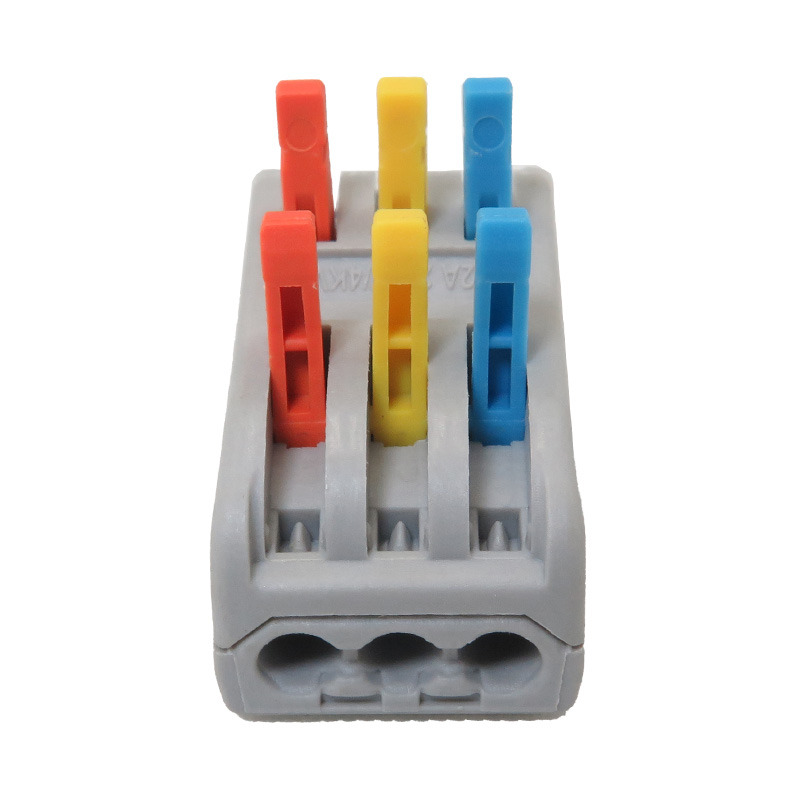

Model: 223color (connector 3 to 3)

Type: Female

Nominal current: 32A

Nominal voltage: 250V to 4kV

Usable wire: 0.4 - 5.0 mm

Plastic parts: PC (UL94 V-2)

Shard: 301 stainless steel

Contact material: Tin plated copper

Ambient temperature: -25℃-+95℃

Power: 7 kW
