برد توسعه Orange Pi Zero 3 از پردازنده چهار هسته ای All winner H618 Cortex-A53 و پردازنده گرافیکی Arm Mali-G31 MP2 می باشد،همچنین از Opengl es 1.0/2.0/3.2، Opencl 2.0 ، Vulkan 1.1 و غیره با 1GB پشتیبانی می کند.برد توسعه Zero 3 را می توان با هدفون، خروجی micro HDMI از صفحه نمایش 4k، خروجی تلویزیون، USB2.0، دریافت IR و سایر عملکردها از طریق درگاه های توسعه 13 پینی با برد آداپتور، علاوه بر درگاه عملکرد توسعه 26 پین روی برد، گسترش داد.
Orange Pi Zero 3 یک کامپیوتر تک برد با ابعاد 55 x 50 میلی متر (2.2 اینچ در 2 اینچ) است، اما دستگاه کوچک همه کاره ای است که قادر به اجرای طیف وسیعی از سیستم عامل ها از جمله Android 12، Debian 12 و Ubuntu 22.04 LTS است.
Description:
Orange Pi Zero 3 development board is All winner H618 Cortex-A53 quad-core processor and Arm Mali-G31 MP2 GPU, also supports Opengl es 1.0/2.0/3.2, Opencl 2.0, Vulkan 1.1 etc. with 1GB The Zero 3 expansion board can be equipped with headphones, micro HDMI output from 4k display, TV output, USB2.0, IR receiving and other functions through the 13-pin expansion ports with the adapter board, in addition to the 26-pin expansion function port on Win, spread.
The Orange Pi Zero 3 is a 55 x 50mm (2.2" x 2") single-board computer, but it's a versatile little device capable of running a range of operating systems, including Android 12, Debian 12 and Ubuntu. It is 22.04 LTS.
Application:
Smart projector equipment
mini pc
Smart robot
Game console
Media Center
VR

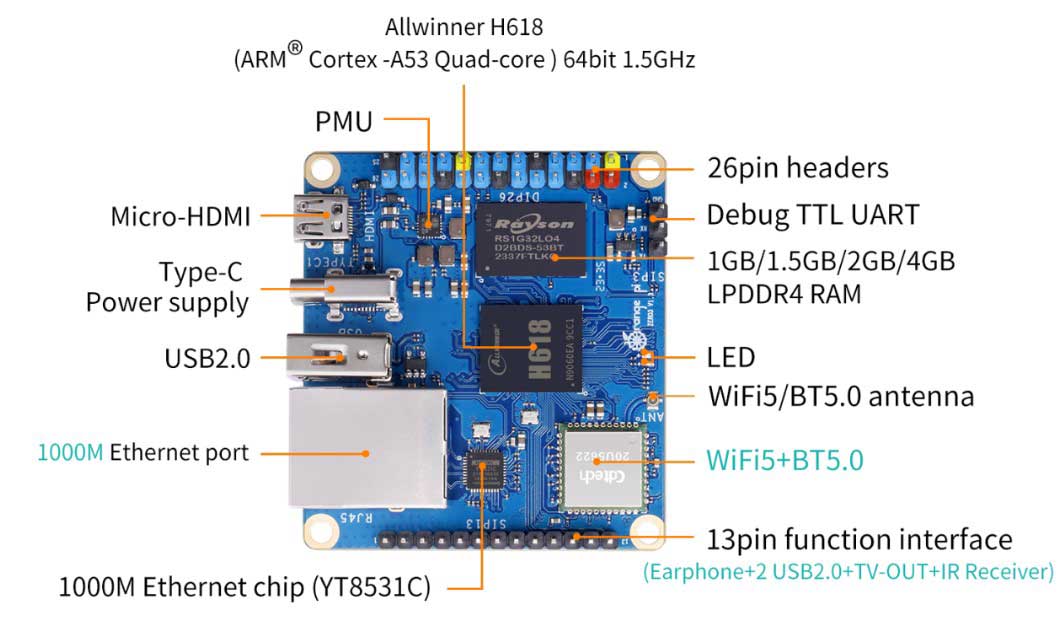

Specifications:
CPU Allwinner H618 Quad-core Cortex-A53 processor 1.5GHz
GPU
• Mali G31 MP2
• Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Memory 1GB/1.5GB/2GB/4GB LPDDR4
On-board storage 16MB SPI Flash
Power management AXP313A
On-board WiFi + Bluetooth Supports WiFi5 and Bluetooth 5.0
Network 10M/100M/1000M Ethernet interface
Audio input/output 13Pin expansion port supports 2-ch output 1-ch input
Video output
• Micro HDMI up to 4K@60fps
• TV-Out:13Pin supports 1-ch TV CVBS output
UART 3Pin Debug UART
USB USB 2.0 * 3(two of which lead from the expansion board)
SD card interface Micro SD card interface

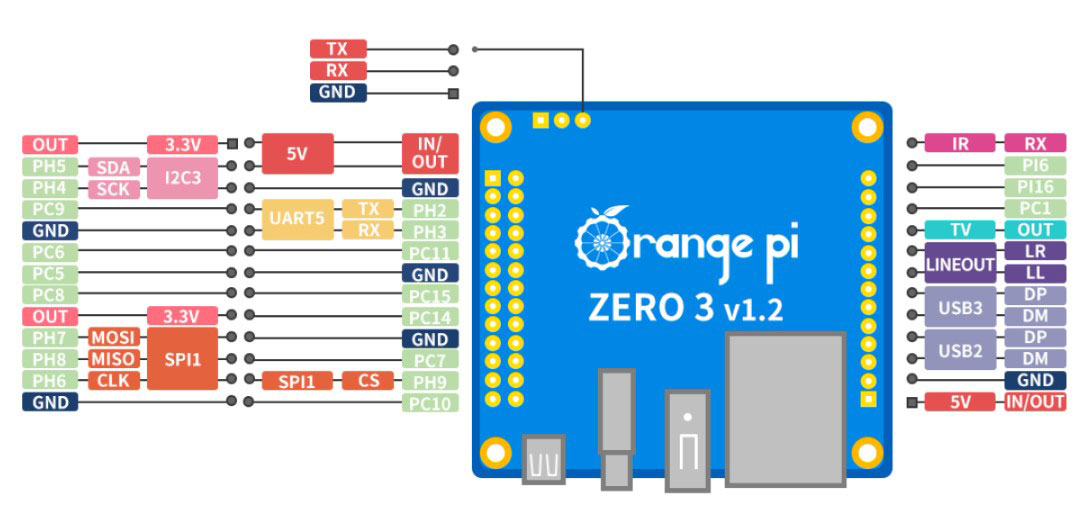

Expansion interface
• 26Pin GPIO interface
• 13Pin GPIO interface
Power input 5V3A,Type-c connector
OS Support Android 12 TV,Debian11,Debian12,Ubuntu22.04,Ubuntu20.04
PCB 50mm*55mm
