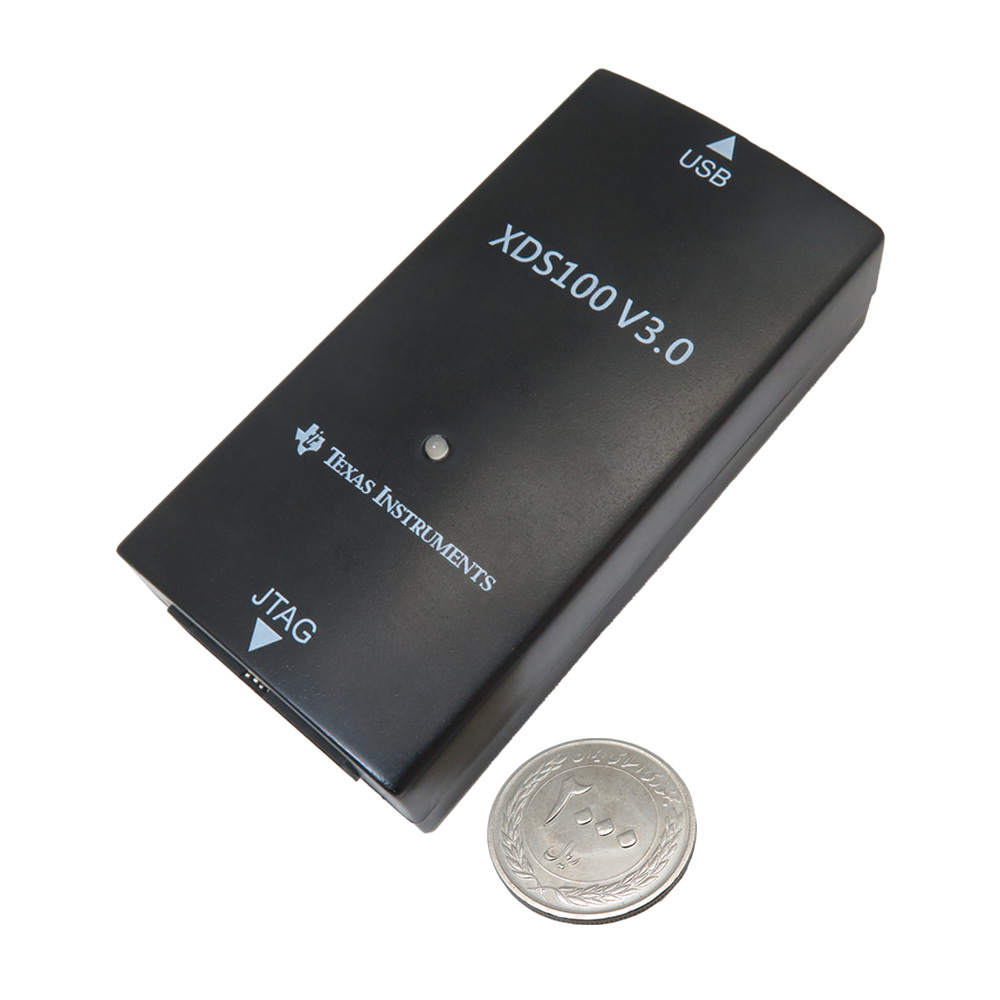

پروگرامر XDS100v3 امولاتور میکروکنترلرهای ARM و DSP
کاربرد پروگرامر XDS100v3:
- پردازش سیگنال
- سیستم های امبدد
- ARM
مشخصات پروگرامر XDS100v3:
- اینترفیس سرعت بالا USB2Q با حداکثر سرعت 480Mbit/s
- دارای JTAG با خاصیت آنتی استاتیک ±15KV
- قابلیت تشخیص قطعی پاور
- پشتیبانی JTAG از ولتاژ 1.8 تا 5 ولت
- پشتیبانی از اینترفیس JTAG 14 پین
- پشتیبانی از اینترفیس JTAG 16 پین
- اتصال آسان و ساده JTGA به صورت دو سیمه
- پشتیبانی از میکروکنترلرهای ARM مدل TMS320c28xx, TMS320C54xx, TMS320C55xx, TMS320C674x, TMS320C64X+, TMS320C64X+, TMS320C66x, ARM9, ARM Cortex M0/M3/M4/A8/A9/A15/R4/R5. TMS470LSxx. TMS570LSxx, Davinci, Zigbee (32bit) CC26xx series
- قابلیت راه اندازی باWinXP/Win7/Win8/Win 10/Linux
مستندات:
دیتاشیت امولاتور XDS100v3
مقایسه امولاتور سری XDS100
Description:

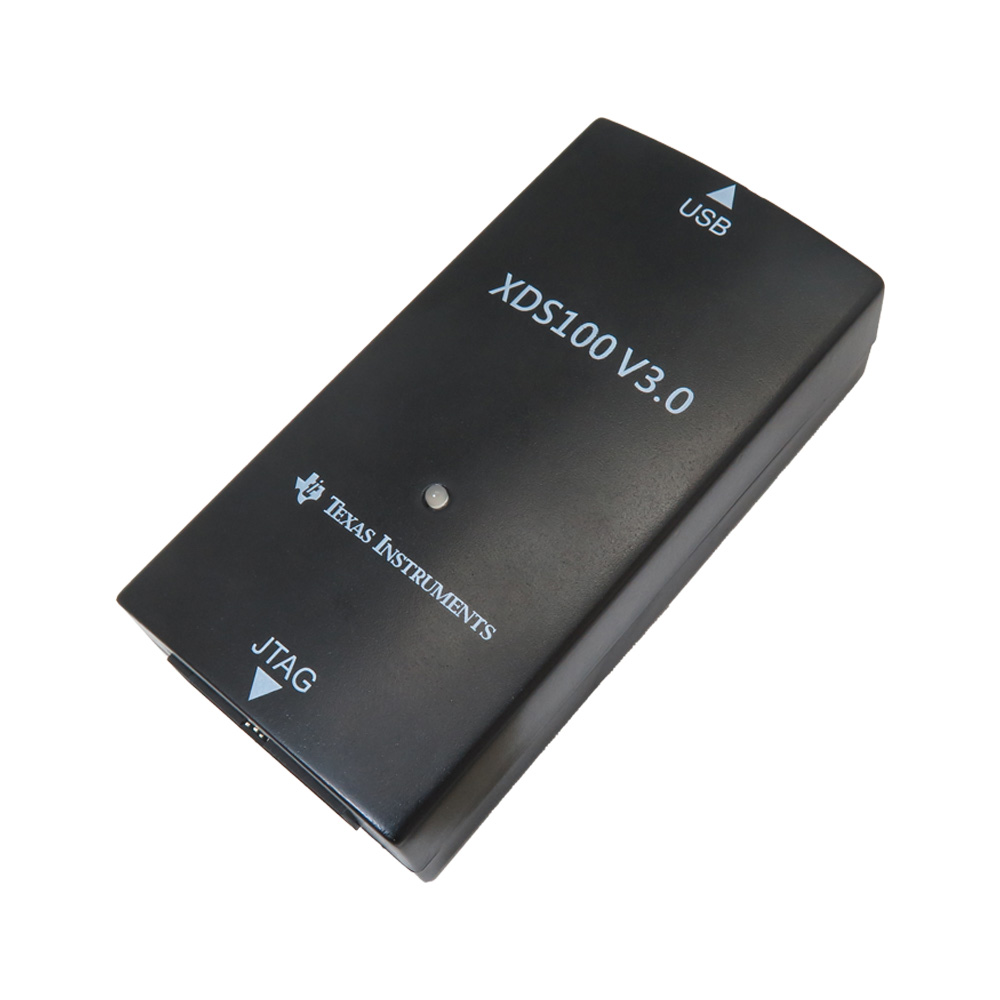

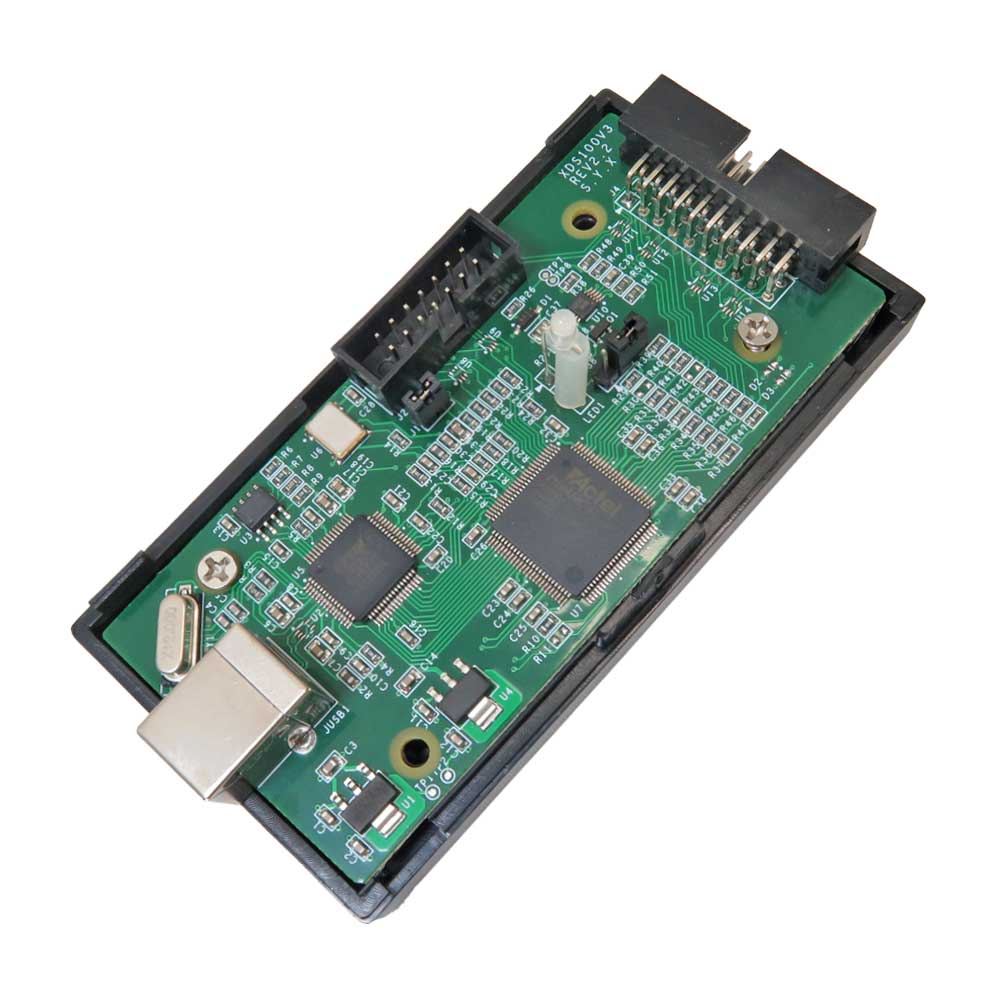

XDS100v3 Emulator is the third version of XDS100 JTAG emulation technology, supporting a variety of TI's chip debugging. Support USB2.0 high-speed interface, theoretical speed of 480M / s, through the 14P/20P interface for emulation debugging, support Code Composer Studio (CCSV5/V6/V7/V8/V9/V10 and higher versions. Can be used for WinXP/Win7/Win8/Win10 and other operating systems.
Application:
DSP
ARM-based systems
embedded systems
debugging
Programming
Specifications:
- USB2Q high speed interface, up to 480Mbit/s
- USB side self-recovery insurance protection, to protect your computer
- JTAG side static chip protection, anti-static ±15KV, stable and reliable
- Support power failure detection
- Support adaptive clock
- Support JTAG reset, wait and reset start mode
- Support power-on reset startup mode

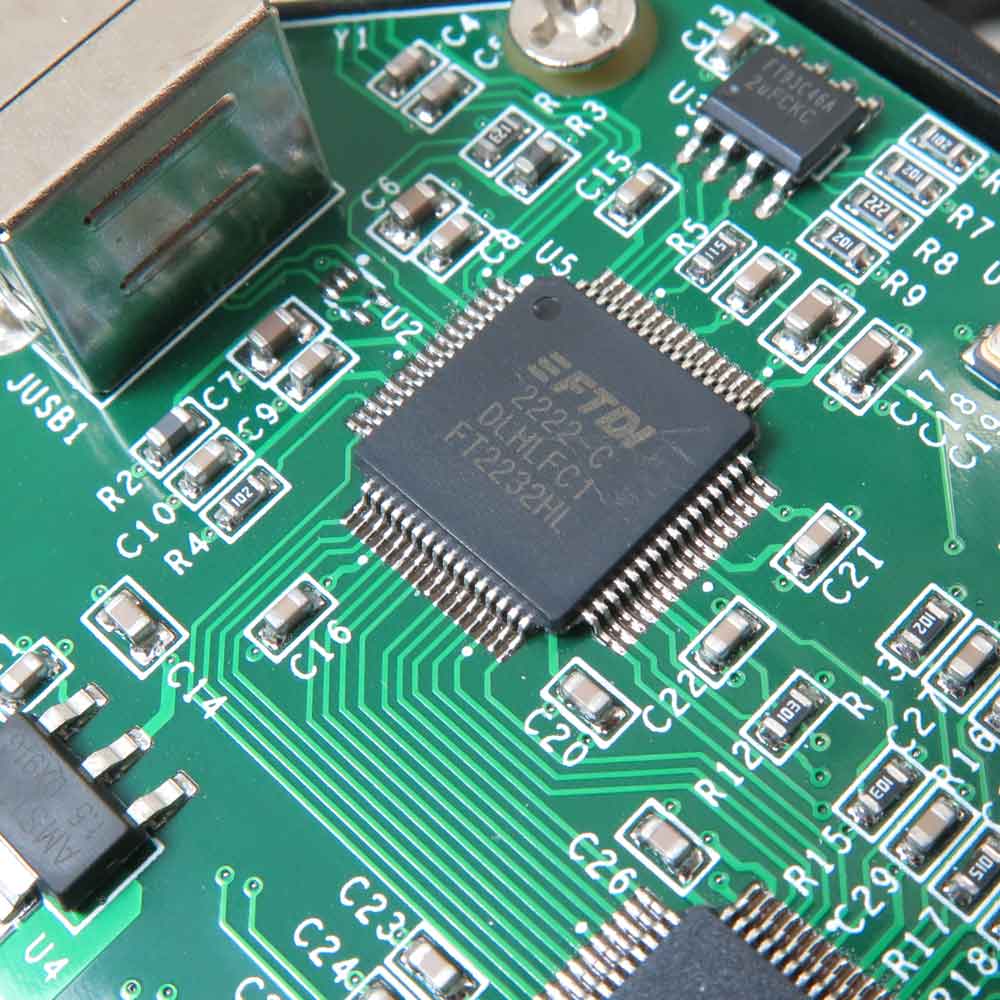

- Support a variety of FTDU device driver
- Support adjustable TCLK clock
- Support 1.8V~5V JTAG voltage standard

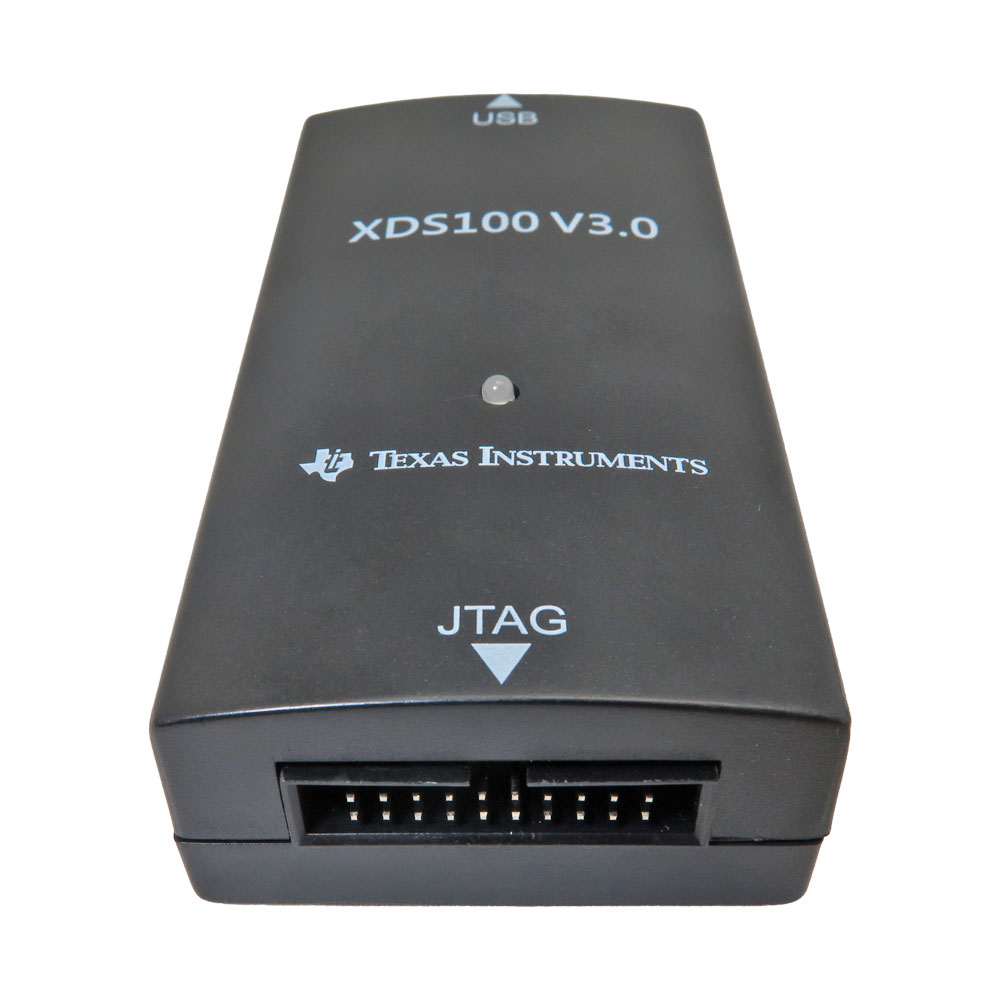

- Support TI standard 14PIN JTAG interface
- Support TI standard 20PIN JTAG interface
- Support 2-wire cJTAG interface, simplify the connection with the target board
- Driver-free, automatic recognition when plugged into the emulator
- Support high-speed USB code download
- Support FLASH online emulation of DSP
- Faster emulation and download speed
- Support CCS V5.2 or above, new version CCSV10 are supported
- Support IAR for ARM V6.4 or above
- Support Flash Programmer 2 burn-in software
- Support uniflash standalone burning software.
- Support SmartRF Studio configuration software.
- Support TMS320c28xx, TMS320C54xx, TMS320C55xx, TMS320C674x, TMS320C64X+.
TMS320C64X+, TMS320C66x, ARM9, ARM Cortex
M0/M3/M4/A8/A9/A15/R4/R5. TMS470LSxx. TMS570LSxx, Davinci.
Zigbee (32bit) CC26xx series (such as
CC2652/CC2650/CC2642/CC2640/CC2630/CC2620, etc.
CC1310/CC1350, etc.), CC2538, etc.
. Support WinXP/Win7/Win8/Win 10/Linux etc.
