ماژول رادار دوپلر میکرو ویو HB100 ایکس باند

Description:

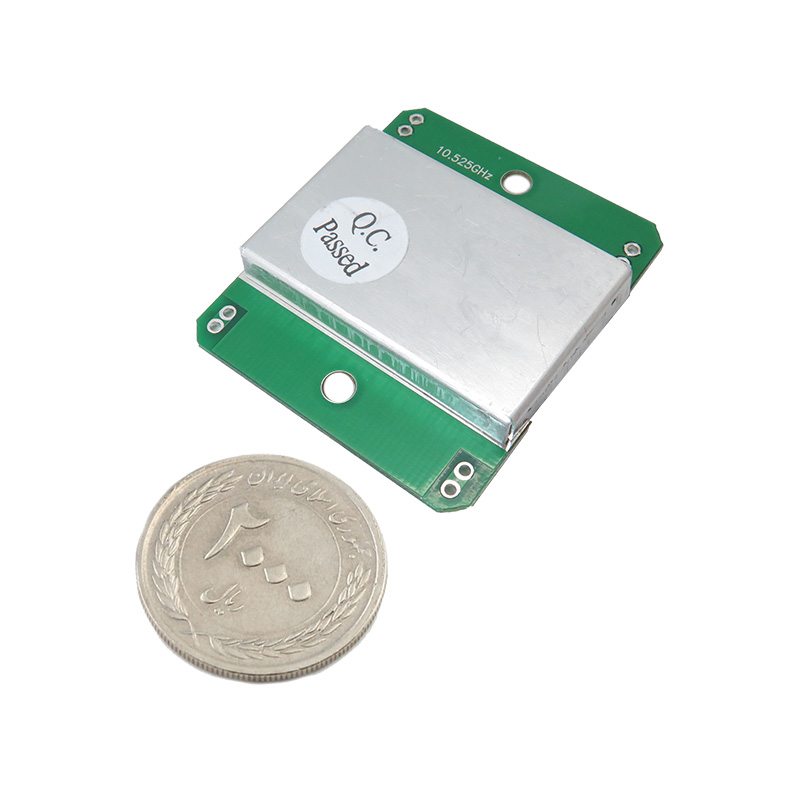

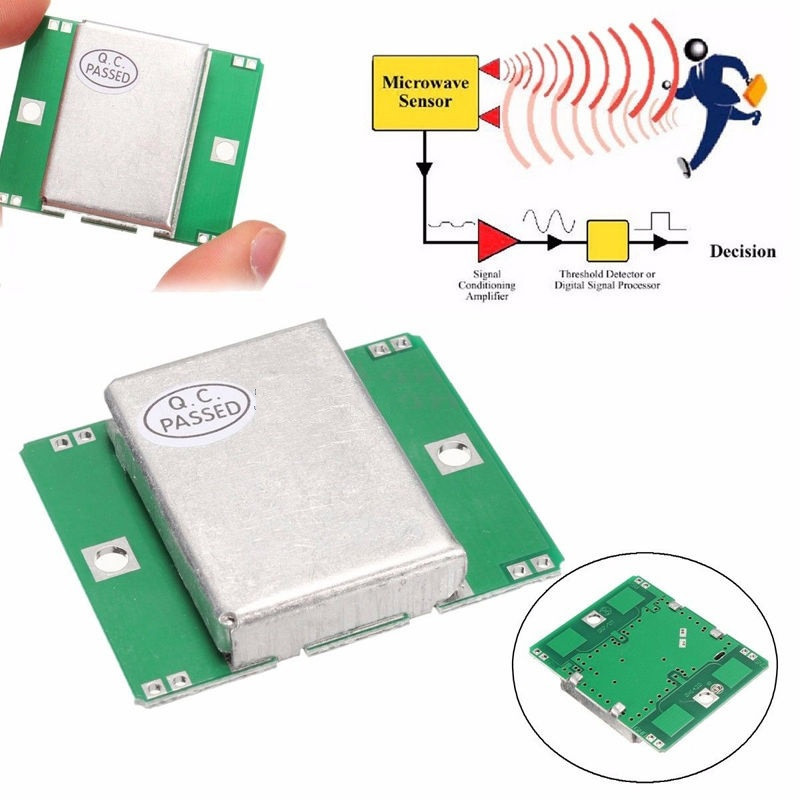

The HB100 microwave module is a microwave moving object detector designed by the Doppler Radar principle. It is mainly used in automatic door control switch, safety protection system, automatic recording control system of ATM automatic teller machine, automatic train signal, etc. place. HB100 is a standard 10.525GHz microwave Doppler radar detector. This detection method has the following advantages compared with other detection methods.

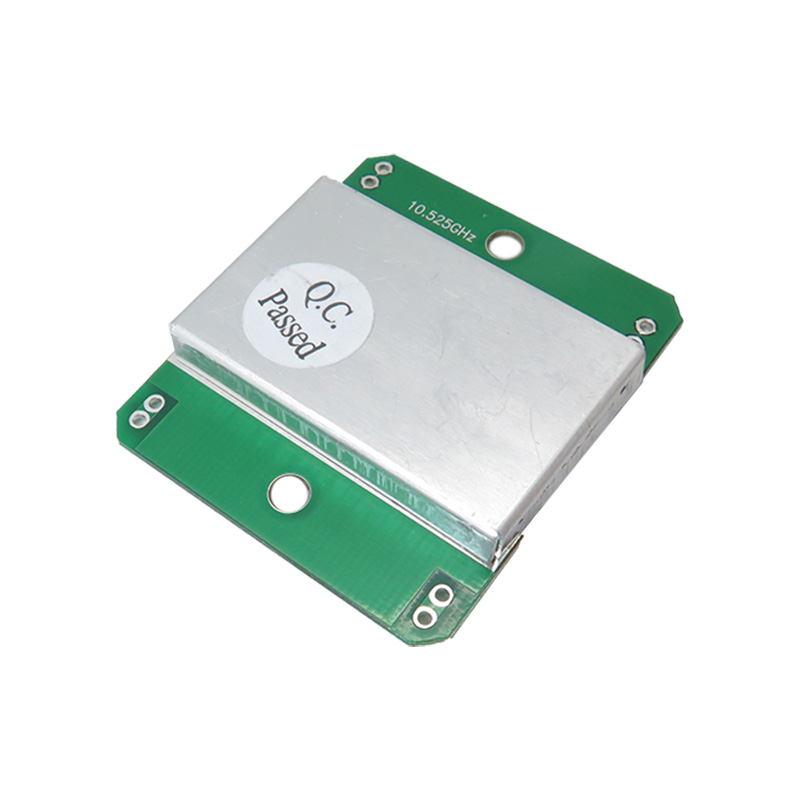

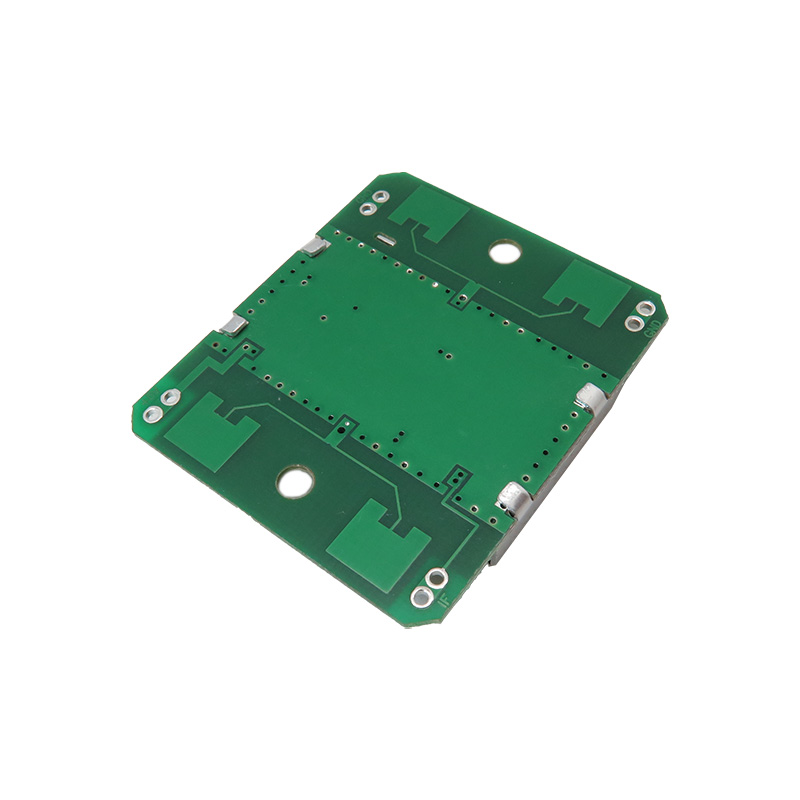

The HB100 module consists of Dielectric Resonator Oscillator (DRO), microwave mixer, and patch antenna. The module operates at +5 Vdc for Continuous wave (CW) operation, but the module can be powered by +5V low duty cycle pulsed trains in order to reduce its power consumption (sample & hold circuit at the IF output is required for pulse operation).
These modules are designed for movement detection, like intruder alarms, occupancy modules, and other innovative ideas.

Note:
1. The module is an electrostatic-sensitive device (ESD). Precautions shall be observed for handling and assembly.
2. There is no user-adjustable part in this module to set the transmit frequency and power of the module.
3. The module must be mounted with the antenna patches facing to the desired detection zone.
4. Wave-solder the module onto PCBA is possible but processes have to be evaluated to prevent deterioration. (No-cleaning process is recommended)
5. Caution must be taken to avoid applying pressure or stress to the chassis of the module. As it may cause performance deterioration.


Specification:
1. Non-contact detection
2. Free from temperature, humidity, noise, airflow, dust, light. Such as impact, suitable for harsh environments
3. strong anti-radio interference capability
4. low output power, no harm to the human body;
5. long-distance: detection range of more than 20 meters.


Features:
Low current consumption (typical 30 mA)
CW or pulse operation
Flat profile
Long detection range (20 m)
Supply voltage: 4.75 ~ 5.25V
X-Band frequency: 10.525 GHz
Minimum Power Output: 13 dBm EIRP
