Description:
This module is an automatic induction control product of Doppler radar
technology. It has the characteristics of high sensitivity, long
induction distance, strong reliability, large induction angle and wide
power supply voltage range.
This microwave induction adopts advanced technology, using a planar
antenna to transmit and receive microwaves. The switch used in microwave
induction is an active sensor, and the sensor emits high-level
electromagnetic waves and accepts its echoes. This sensor detects
changes in the echo, or even small movements within the detection range,
and then the microprocessor triggers to execute the command. Signals
can be detected through doors, glass panels, and thin walls.
This sensor module is wide supply voltage range and other
characteristics. Widely used in lighting situations,anti-theft alarm
situations.
Application:
1. Security
2. Intelligent Lighting
3. Body sensors toys
4. Industrial automation and control
5. Auto-sensing electrical equipment
6. Battery-powered automatic control
Features:
1.Working voltage: 12-35V DC power supply to the module
2.Work requirements: DC input (LED power cross-flow input) can be connected to the load load voltage does not exceed 36V
Maximum output current: 350mA
3.Quiescent current <7mA
4.Delay time, default 1S (1~120S adjustment delay)
5.Sensing distance 5~8 meters (default setting 6 meters)

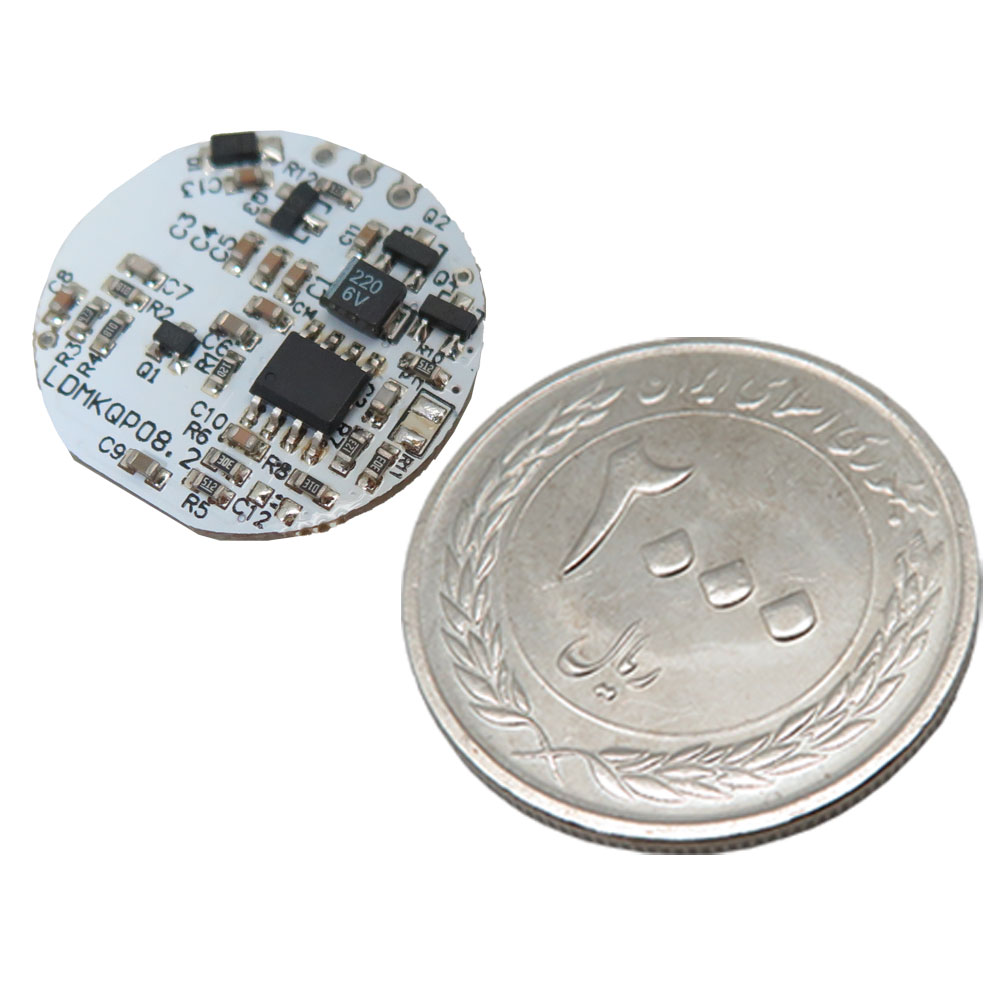

6.Appearance size 17.5*23/ (round plate D25)
7.Induction angle 180*360 degree cone angle
8.Working temperature: -20 ~ +80 degrees Celsius
9.High and low level, repeated trigger
10.High level (output is the same as input) Low level 0V
