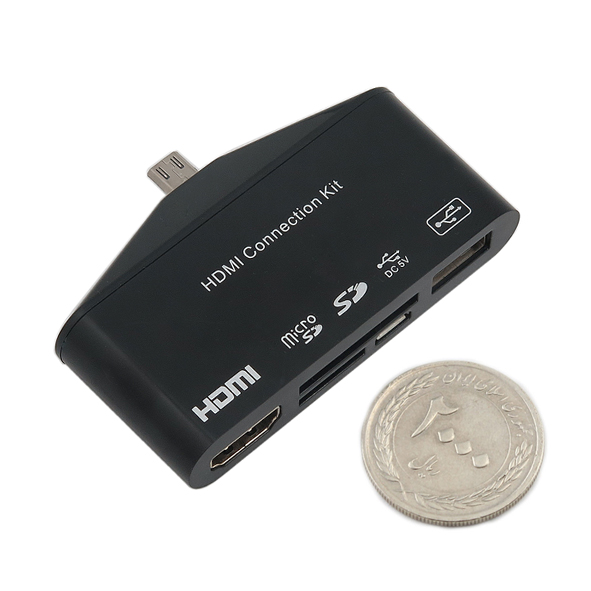

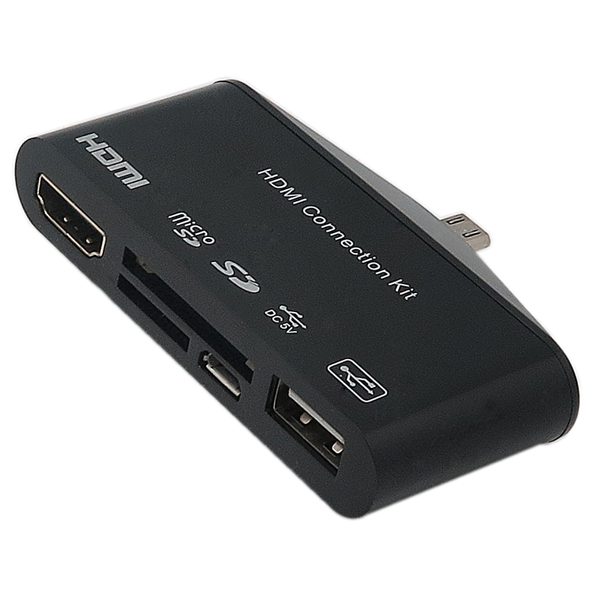

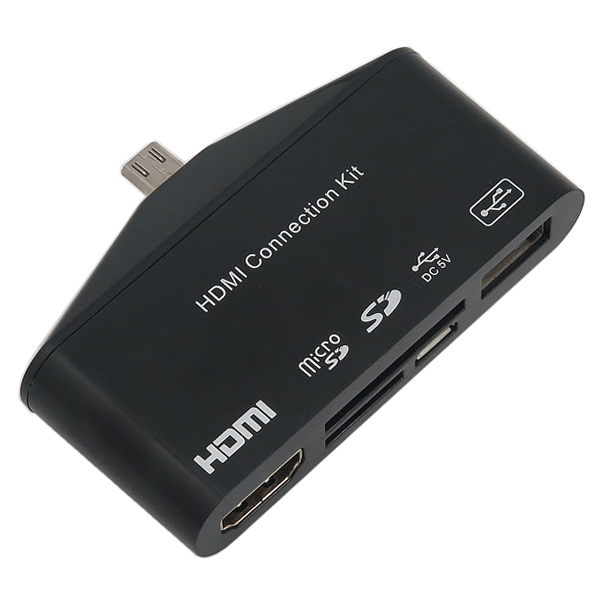

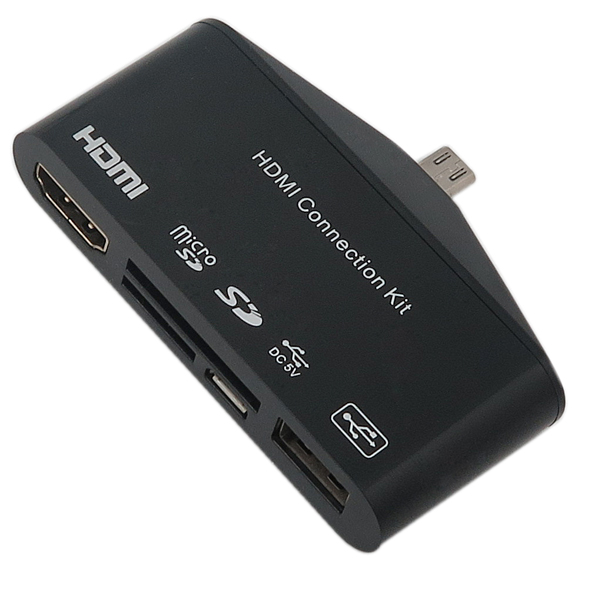

تبدیل MHL به HDMI دارای OTG
*** این تبدیل طبق اطلاعات سایت تولید کننده تنها با مدل های ذکر شده در توضیحات سازگار خواهد بود.

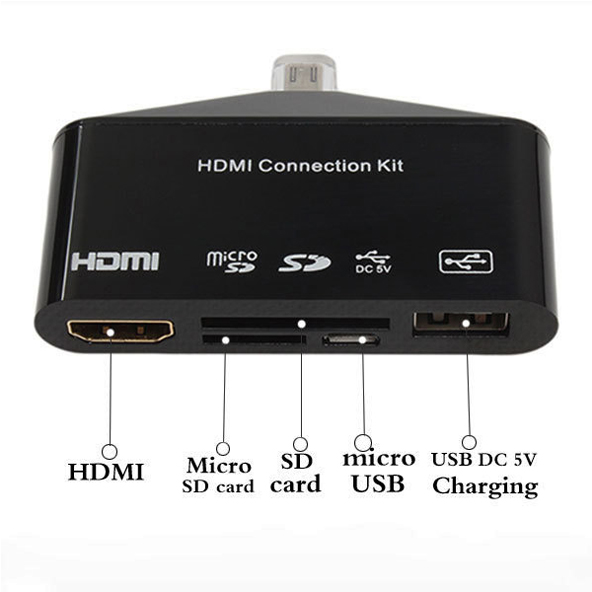

Features
Micro USB connector suitable for Samsung galaxy S3 i9300 /S3 Mini/S4/S4 Mini/Note2 N7100 and 11Pin Samsung Galaxy Tab3 Support read SD/TF/M2 memory cards.
USB 2.0 host to connect USB disk, mouse, keyboard
MHL to HDMI output to HDTV
Max resolution to 1080p and all bandwidth between 25-75MHz
8 channel(e.g. 7.1 surround sound) uncompressed audio
High-bandwidth Digital Content Protection (HDCP)
Support audio transfer up to 192kHz

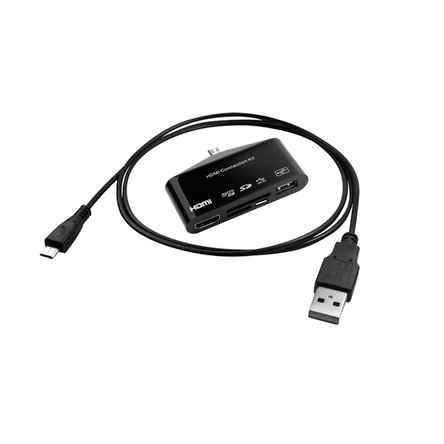

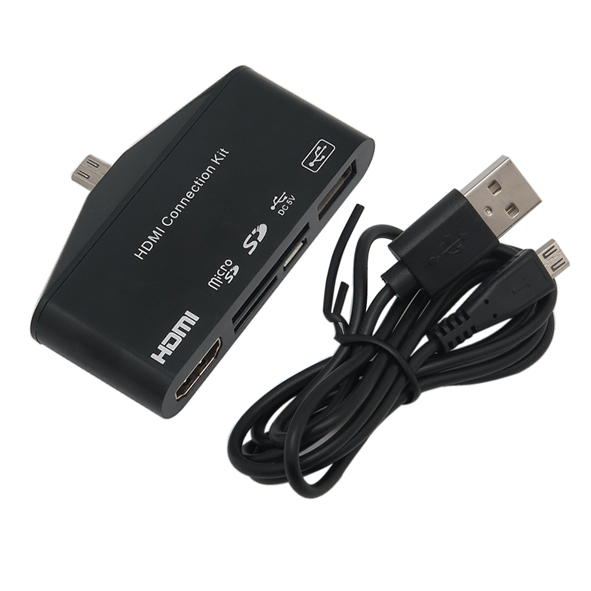

Micro USB power supply to the products
Easy to use, driver installation free
Size: 74mm x 50mm x 14mm
Weight: 26g

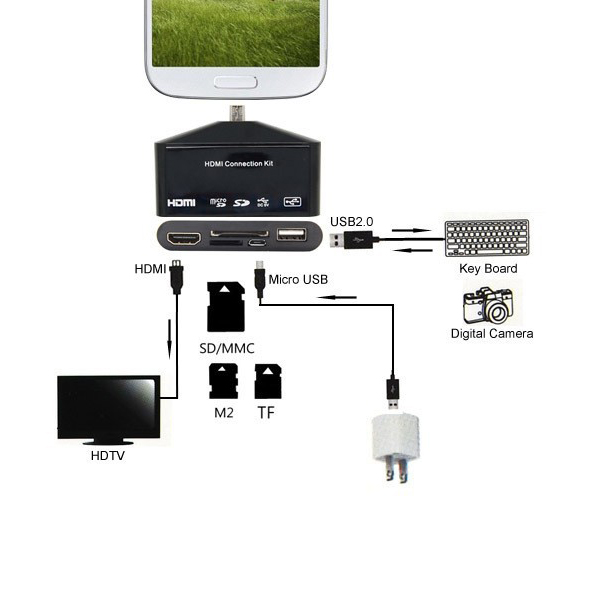

OTG function:
1, the product supports reading SD / TF / M2 memory card.
2, product USB support to connect U disk, mouse, keyboard and so on.
3, through the micro usb to the device power supply: the reader needs an external power supply, mobile phones and other equipment can not drive our products.
4, the reader can simultaneously access a keyboard + a mouse (wired or wireless mouse will do) + a U disk (or a card). But can not access two storage devices at the same time.
5, support data two-way transmission: mobile phone files can be copied to the external storage device, external storage device files can also be copied to the phone locally.
MHL function:
1, support MHL to HDMI output to HDTV, watch video, play games, see courseware, etc., through the large-screen display device to share mobile phone resources.
2, support the highest 1080P resolution and 25-75MHz bandwidth, the effect is clear, fine quality.
3, support audio and video synchronization transmission; storage device files, do not need to download to the phone, you can play directly to the display device.
4, easy to use, no need to drive, plug and play, support hot plug.
Suitable for Andrews (Android) platform built MHL transmitter chip product supports the following models:
Note2 - Galaxy: N7100 (not supported: N719 telecommunications dual card version, N7102 Unicom dual card version, N7108 mobile dual-card version)
-Galaxy S3: i9300 Unicom, i939 telecommunications, i9308 mobile , i9305 Hong Kong version
S4 - Galaxy: i9500, i9505, I9508 (not supported: i9502 Unicom dual card version, i959 telecommunications dual card version)
-Galaxy Note3: N900 (Hong Kong version), N9006 (public version), N9002 (Unicom customized version), N9009 (Telecom customized version), N9008 (mobile customized version)
