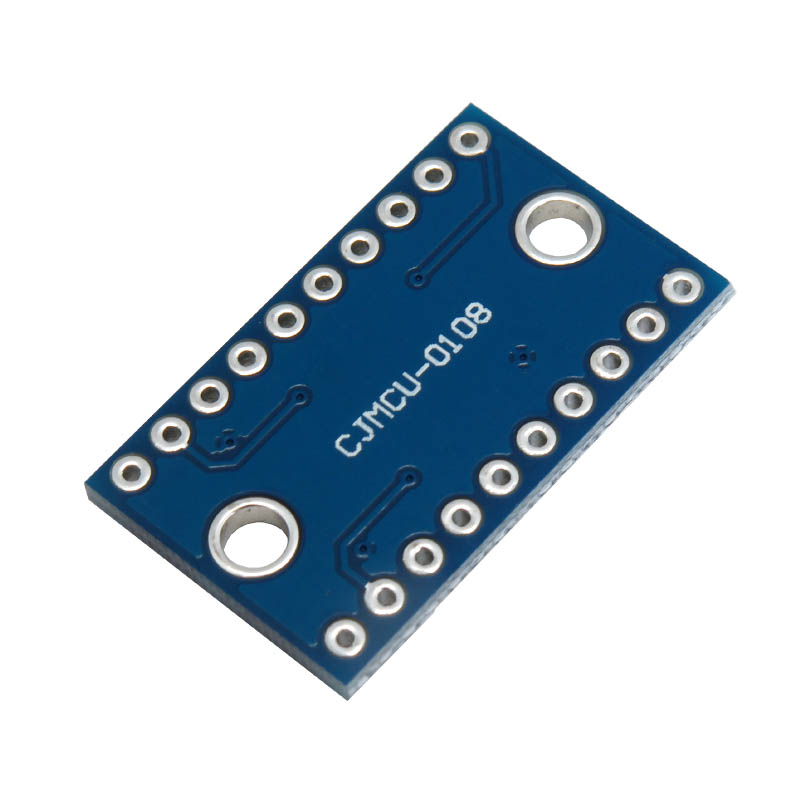

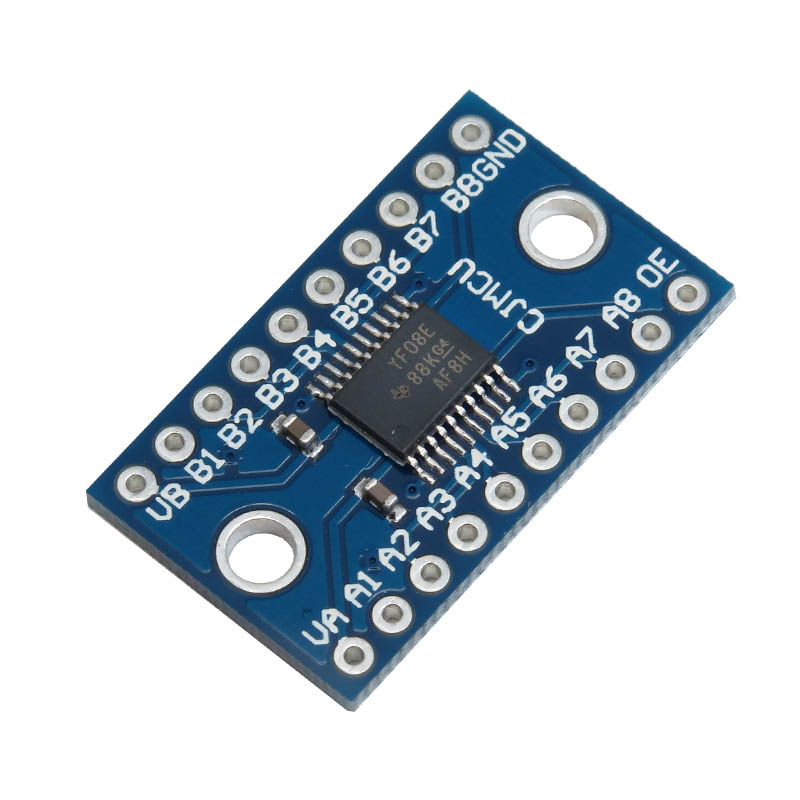

ماژول مبدل سطح ولتاژ دو طرفه 8 کاناله TXS0108E
جهت دریافت دیتاشیت TXS0108E به این لینک مراجعه نمایید.
Description:
The TXS0108E 8 channel (8-bit) bi-directional level-shifter (logic level converter) works with both open-drain and push-pull configurations. This 8-bit translator uses two separate configurable power-supply rails. The A port tracks the VA (VCCA) pin supply voltage. The VA pin accepts any supply voltage between 1.2 V and 3.6 V. The B port tracks the VB (VCCB) pin supply voltage. The VB pin accepts any supply voltage between 1.65 V and 5.5 V. When the output-enable (OE) input pin is low, all outputs are placed in the high-impedance (Hi-Z) state.
Features:
A Port Voltage Range: 1.2 to 3.6 V
B Port Voltage Range: 1.65 to 5.5 V
Maximum Data Rates:110 Mbps (Push Pull) and 1.2 Mbps (Open Drain)
Board Dimensions: 25mm x 15mm (0.985" x 0.591") / Long x Wide
