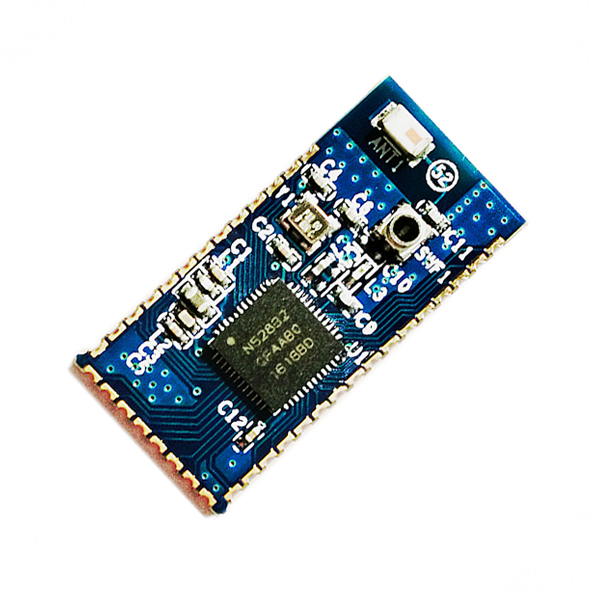

ماژول بلوتوث NRF52832 دارای هسته 32 بیتی 512kB flash / 64kB RAM / ARM Cortex M4F
Features of nRF52832 Module

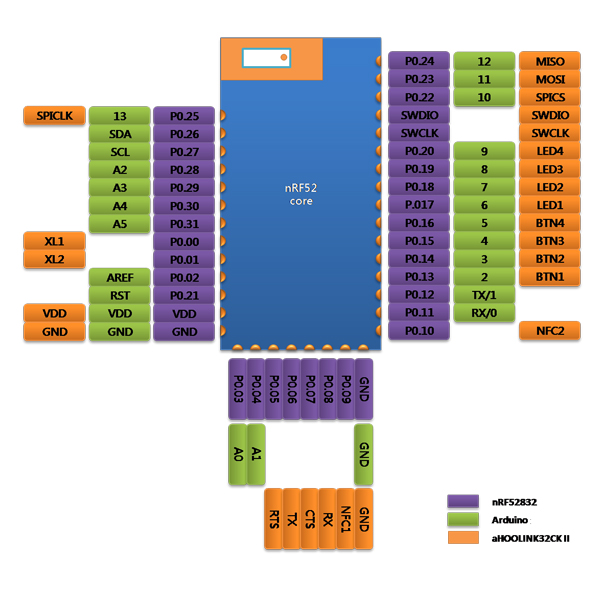

All pins of nRF52832 are available.
Pins compatible with Arduino.
4 Layer PCB with Immersion gold process
nRF52832QFAAB0 Inside – Cortex-M4F, 512KB Flash & 64K RAM
2.4 GHz Chip Antenna & IPX Connector

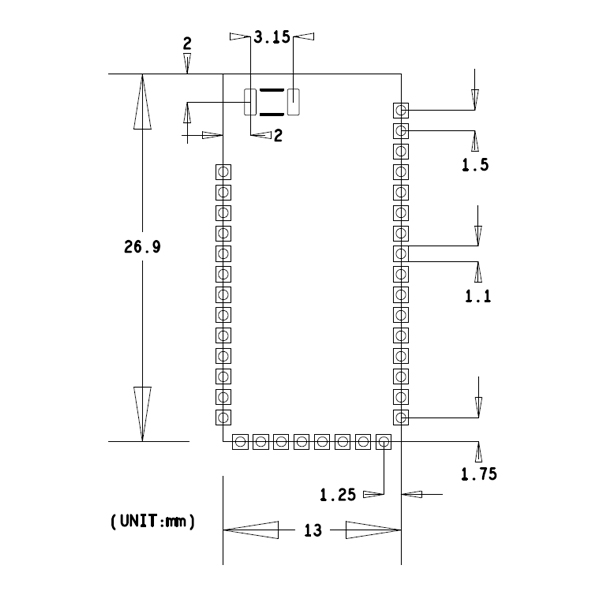

Dimension: 13x27x2 mm
OverView of nRF52832
The nRF52832 SoC is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® low energy (previously called Bluetooth Smart), ANT and 2.4GHz ultra low-power wireless applications. The nRF52832 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 512kB + 64kB RAM. The embedded 2.4GHz transceiver supports Bluetooth low energy, ANT and proprietary 2.4 GHz protocol stack. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.
Single chip, highly flexible, 2.4 GHz multi-protocol SoC
32-bit ARM Cortex-M4F Processor
1.7v to 3.6v operation
512kB flash + 64kB RAM
Supports concurrent Bluetooth low energy/ANT protocol operation
On-chip NFC tag for Out-of-Band (OOB) pairing
Up to +4dBm output power
-96dBm sensitivity, Bluetooth low energy
Thread safe and run-time protected
Event driven API
On air compatible with nRF24L and nRF24AP series
2 data rates (2Mbps/1Mbps)
PPI – maximum flexibility for power-efficient applications and code simplification
Automated power management system with automatic power management of each peripheral
Configurable I/O mapping for analog and digital I/O
3 x Master/Slave SPI
2 x Two-wire interface (I²C)
UART (RTS/CTS)
3 x PWM
AES HW encryption
Real Time Counter (RTC)
Digital microphone interface (PDM)
On-chip balun
