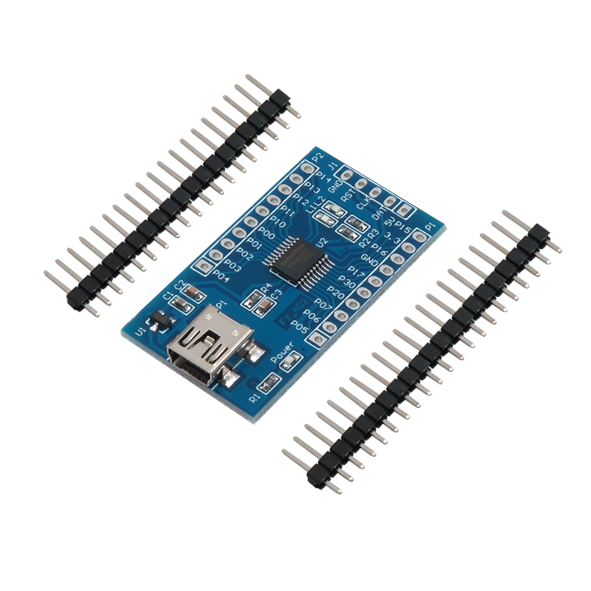

برد توسعه N76E003 دارای پورت مینی USB

برد توسعه نووتون N76E003-V1 یک فلش نهفته است که بر اساس میکروکنترلر 80C51 و به صورت 8 بیتی عملکرد بالایی دارد و فلش 18 کیلوبایتی با نام APROM دارد و از تابع IAP پشتیبانی می کند و می تواند تمام فریمورها را آپدیت کند.
برد توسعه نووتون N76E003 رجیسترهای خاصی دارد و برای مانیتور کردن و کنترل تمام ادوات و مودهای تجهیزات جانبی استفاده می شوند و این رجیستر Special Function Registers (SFRs) است.


کاربرد برد توسعه Nuvoton N76E003 :

  1. اینترنت اشیا
  2. توسعه سیستم های نهفته

مشخصات برد توسعه Nuvoton N76E003 :

  1. دارای پورت میکرو USB
  2. فرکانس کاری: 16 مگاهرتز
  3. 8 بیتی
  4. مبتنی بر پردازنده 8051
  5. ظرفیت نگهدارنده: 1KB RAN / 18kB Flash
  6. 16 پورت ورودی و خروجی
  7. محدوده ولتاژ: 2.4 تا 5 ولت
  8. تغذیه از طریق پورت و شارژر موبایل


مستندات:
دیتاشیت N76E003-V1


Description:

The N76E003 is an embedded flash type, 8-bit high performance 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and performance enhanced.
The N76E003 contains a up to 18K Bytes of main Flash called APROM, in which the contents of User Code resides. The N76E003 Flash supports In-Application-Programming (IAP) function, which enables on-chip firmware updates. IAP also makes it possible to configure any block of User Code array to be used as non-volatile data storage, which is written by IAP and read by IAP or MOVC instruction.
N76E003 is high-speed 1T 8050 SCM series products. Provide 18KB Flash ROM, configurable Data Flash and high capacity 1KB SRAM, Support 2.4 V to 5.5 V wide working voltage and working temperature from 40 ℃ to 105 ℃.It has strong ability of anti-interference 7KV ESD/4KV EFT . N76E003 has 18pcs I/O feet packing by 20PIN .The interface includes double serial port, SPI, 12C and 6 channel PWM output. Build a high accuracy less than 2% error and high resolution of 16MHz RC crystal oscillator and high resolution 8-channel 12 bit ,which is superior to similar products. It has the function of self-awakening and under-pressure detection. Provide TSSOP20(4mm*6.5mm) and QFN20(3mm*3mm) small package. It has high performance and design flexibility.

Application:

Features:
11T/8051: 1T MCU, 8051 classic core
18KB Flash ROM: better than 8KB Flash and all can be used as data storage space
1024B SRAM
17+1 input interface: better than 16 GPIO
2*UART, SPI, 12C: better than SPI/12C/UART(one more UART)
8ch of 12bit ADC, Superior to 5 channel 10bit ADC
6ch of individual duty PWM: superior to 3 channel PWM output
10KHz LIRC for WDT reset/WKT
16MHz HIRC ±1% Room temp. ±2% full condition
-40~105℃ wide temperature area
2.4V-5.5V wide working voltage range
TSSOP20/QFN20
ESD&EFT: HBM/8KV MM/400V, Over 4KV, Good ESD and EFT, anti interference and ESD protection
On board MINI USB power supply interface, reset button and AMS1117-3.3V stable voltage chip
On board external crystal oscillator interface and programmable LED (P12 foot) jumper cap (I/O control LED when jumper is connected)
All I/O ports are extracted with a 2.54mm pin
Board size: 43.4mm*29.8mm
Interface instruction:
5V/3.3V: positive of working pressure
GND: negative of working voltage
TX: sender PIN of module serial port, could connect RXD of MCU
RX: receiver PIN of module serial port, could connect TXD of MCU
DAT, CLK, RST: Nu-Link program download port
