پروگرامر RT809H

پروگرامر RT809H

کاربرد پروگرامر چند منظوره RT809H:

1. انواع تلویزیون
2. مانیتور
3. کامپیوتر
4. لپ تاپ
5. موبایل
6. ماشین
7. تجهیزات پزشکی
8. آزمایشگاهی

مشخصات پروگرامر چند منظوره RT809H:

1. درایور قوی 48 پین
2. عدم نیاز به آداپتور برای تجهیزات DIL
3. کانکتور ISP
4. مجهز به پورت VGA
5. مجهز به پورت HDMI
6. استفاده راحت و آسان

7. سرعت بالای برنامه ریزی
8. سازگار با انواع ویندوزها

مستندات:
RT809H Programmer

Description:
RT809H EMMC-Nand FLASH Programmer NOR/NAND/EMMC/EC/MCU/ISP High-speed reading and writing car navigation TV Mobile Phone, Full Support LCD TV FLASH drivers read and write unlimited capacity TSOP48 Nand FLASH EMMC TSOP56 pin TOP8-16 pin Support CAR DVD, SMART TV. The Only universal programmer which can automatically detect chip number for all Chips. The only universal programmer which can put IC in any position and make intelligent sense. The Only universal programmer Support Read and program Laptop I/O via keyboard line. The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT, the only universal programmer Support ADD new flash by you without wait for factory, The Only universal programmer built in Most of repair applications TV, DVD, DVB, and much ISP software. The Only universal programmer makes self. test for LCD TV itself and diagnostic fault. The best programmer to read and programming flash on motherboard without removing out Support Read and Programming OTP area. Support UPTO 64GB NAND FLASH.
The programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device
These capabilities, supported by over current protection and signature-byte check help prevent chip damage due to operator error. The self test capability allow to run diagnostic part of software to thoroughly check the health of the programmer, Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC, ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help, Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number, All known data formats are supported. Automatic file format detection and conversion during loading of file, the software also provide special information about programmed device. As a special, the drawings of all available packages are provided, The software provide a full information for ISP implementation Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

Rt809h programmer Application:
cars
mobile
desktop pc
LCD LED
Set-top box
etc.

Features:
48-pins powerful pin drivers
no adapter required for any DIL devices
ISP connector for in-circuit programming
VGA port to read and write LCD TV-MONITORS without disassembly
HDMI port to read and write LCD TV-MONITORS without disassembly.
Connection to PC USB 2.0
Comfortable and easy to use control program
works with all versions of MS Windows
Can support any flash and very easy to add new flash
High programming speed
Advanced and powerful software functions
Provides very competitive price coupled with excellent hardware design for reliable programming

Package Include:
1x Programmer
1x 48 feet simple board, 8-16 feet simple seat one

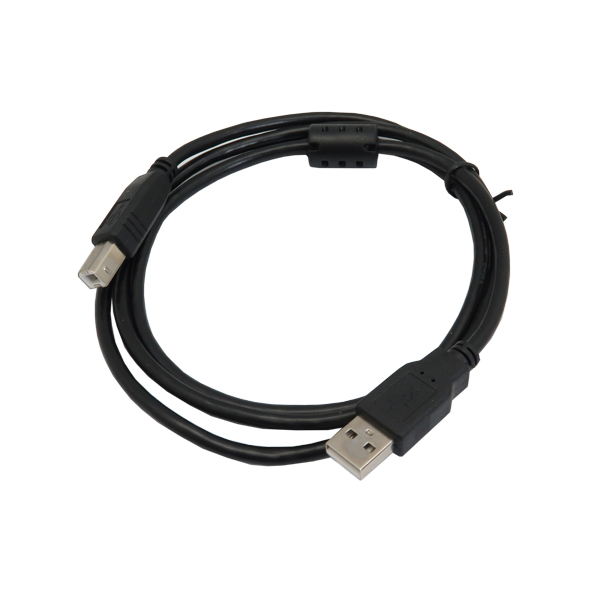

1x USB2.0 cable
1x VGA cable
