پردازنده این ماژول وای فای و بلوتوث ESP32-C3 با فرکانس 160 مگاهرتز است و می تواند از طریق اینترفیس های UART/GPIO/ADC/PWM/I2C/I2S با سایر ماژول ها ارتباط برقرار کند.
Description:

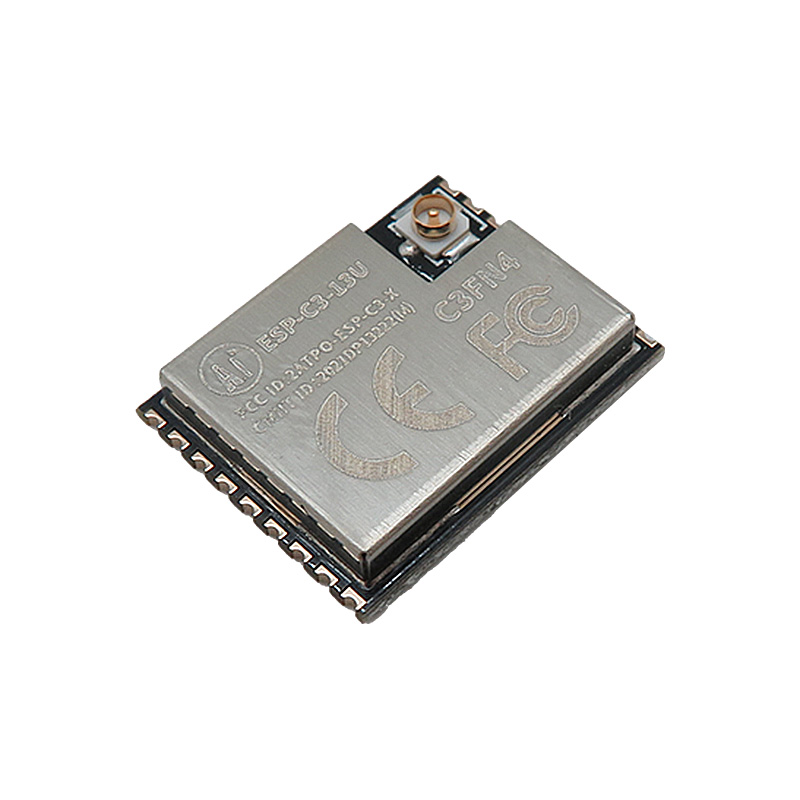

ESP-C3-13U is a Wi-Fi module developed by Ai-Thinker. This module core processor ESP32-C3 is a Wi-Fi+ BLE combination of system-level chips (SoC), designed for various applications such as internet of things (IoT), mobile devices, wearable electronics, smart home, etc.
ESP32-C3 with industry-leading low power and RF performance, supporting Wi-Fi IEEE802.11b/g/n agreements and BLE 5.0.ESP32-C3 chip is equipped with a RISC-V 32-bit single-core processor, operating frequency up to 160 MHz. The chip is support to have secondary development without using other microcontrollers or processors. The chip has a built-in 400 KB SRAM,384 KB ROM,8KB RTC SRAM. The chip also support external Flash while it built-in 4Mbit Flash.
Application:
internet of things (IoT)
mobile devices
wearable electronics
smart home
Features:
Model Name: ESP-C3-13U
Package: SMD-18
Size: 14.0*18.0*3.1(±0.2)mm
Antenna: IPEX
Frequency Range: 2400 ~ 2483.5MHz
Operating Temperature: -40 °C ~ 85 °C
Store Temperature: -40 °C ~ 125 °C ,
Power supply range Supply voltage: 3.0V ~ 3.6V, Supply current >500mA
Support Interface: UART/GPIO/ADC/PWM/I2C/I2S
IO: IO0,IO1,IO2,IO3,IO4,IO5,IO6,IO7,IO8,IO9,IO10,IO18,IO19,IO20,IO21
UART Rate Support: 110 ~ 4608000 bps, default 115200 bps
Bluetooth: BLE 5.0
Security: WEP/WPA-PSK/WPA2-PSK
SPI Flash: Default 4MByte, support 2MByte version
